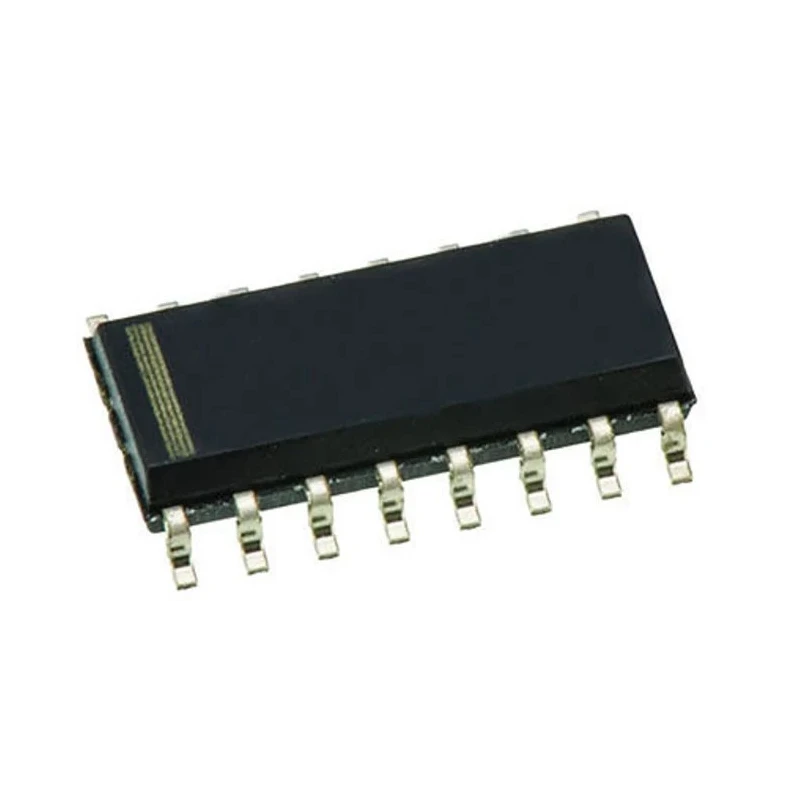

NVE 5-Channel Digital Isolator, 110 Mbps Data Rate, 2500 Vrms Isolation Voltage, 5.5V Supply, 16-Pin SOIC Package IL260-3E

NVE IL260-3E is a 5-channel digital isolator designed to deliver high-speed data transfer up to 110 Mbps with robust electrical isolation of 2500 Vrms. It operates on a 5.5 V supply and is housed in a compact 16-pin SOIC surface mount package, making it ideal for dense printed circuit board layouts.

This component supports industrial, electronic, and automation applications requiring signal isolation between different circuit blocks to prevent noise and ground loop interference. The device's fast propagation delay time of 4 ns and rise time of 4 ns enable seamless communication in digital control systems.

Operating temperature range from -55°C up to 125°C ensures performance stability in demanding environments. The input current is minimal at 10 μA, improving energy efficiency in the circuit design. It maintains compatibility with IEC and UL standards for digital isolators.

The package is dimensioned at 10 mm length, 3.99 mm width, and 1.27 mm depth, making it suitable for surface mount technology (SMT) applications. This isolator supports applications in industrial automation, medical equipment, instrumentation, and communication systems.

Choose the IL260-3E for reliable digital isolation with high data rate capability and excellent environmental tolerance. Its robust construction and recognized standards approvals make it fit for use in commercial and industrial electronic systems.

This device supports five isolated digital channels optimized for high-speed data communication. It features an isolation voltage of 2500 Vrms, ensuring excellent protection between circuit sections. The isolator operates at 5.5 V supply voltage suitable for wide electronic applications.

Utilizes a 16-pin SOIC surface mount package that facilitates compact and efficient PCB mounting. Maximum operating temperature reaches up to 125°C, ensuring reliability under harsh conditions. Propagation delay and rise time are both 4 ns, supporting rapid signal transitions.

Input current maximum is limited to 10 µA, allowing low power consumption designs. The package dimensions are 10 mm length, 3.99 mm width, and 1.27 mm depth. Complies with IEC and UL standards, confirming quality and safety for industrial applications.
