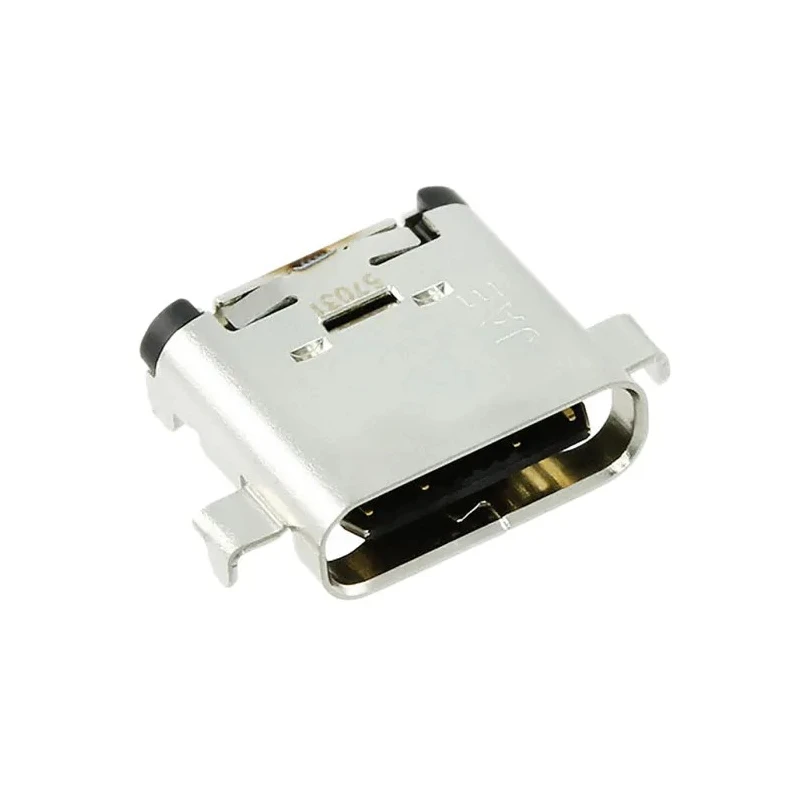

JAE Right Angle Surface Mount Female 1 Port USB Type C USB Connector USB 3.1 DX07B024JJ1R1500
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 20V |
| Brand | JAE |
| Orientation | Right Angle |
| Current | 5A |
| Model | DX07B024JJ1R1500 |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | DX07 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| USB Type | USB Type C |
| Connector Gender | Female |
| USB Specification | USB 3.1 |
Key Features
- Supports reversible USB Type C plug orientation for reliable connections.
- Rated for USB 3.1 standard with data rates up to 10 Gbps.
- Designed for surface mount on PCBs with solder termination type.
- Operates safely at 20V voltage and 5A current rating.
- Constructed with durable copper alloy contacts for optimal conductivity.
- Suitable for applications in smartphones, tablets, PCs, and digital cameras.
- Operates in temperature range from -30°C to 80°C for versatile environments.
- Right angle connector orientation supports compact device designs.
Product Description
JAE DX07B024JJ1R1500 is a right angle, surface mount female USB Type C connector compliant with USB 3.1 specifications. Suitable for high-speed data transmission up to 10 Gbps, it is designed to provide reliable power and data connections at up to 20V and 5A. Its reversible design enables easy plug-in without orientation concerns.
The connector features a robust solder termination for surface mounting on printed circuit boards and uses copper alloy contacts known for excellent electrical conductivity and durability. It supports operation in a wide temperature range from -30°C to 80°C, ensuring stable performance under various environmental conditions.
This connector is ideal for compact electronic devices such as smartphones, tablets, personal computers, high definition camcorders, and digital cameras where space-saving right-angle mounting is advantageous. It is part of JAE’s DX07 series of USB-C connectors, representing cutting-edge USB connectivity solutions manufactured in Japan.
Reversible USB Type C connector for ease of use. USB 3.1 standard ensuring 10 Gbps data transfer speeds. Surface mount solder terminations for PCB integration. Supports 20V voltage and 5A current for power delivery. Copper alloy contacts provide reliable signal integrity.
Wide operating temperature range of -30°C to 80°C. Right angle design for efficient PCB layout. Manufactured in Japan for high quality assurance.
This product is ideal for industrial, electronics manufacturing, telecommunications, and consumer electronic assembly applications, meeting rigorous demands of modern device interconnectivity and power requirements. Browse EnvMart’s comprehensive collection of USB Connectors and JAE brand components for more high quality industrial electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports data transfer speeds of up to 10 Gbps, compliant with the USB 3.1 standard.
It operates safely at a voltage of 20V and a current rating of 5A.
The connector operates within a temperature range of -30°C to 80°C, making it suitable for various environments.
This model is designed for surface mounting on printed circuit boards (PCBs) with a solder termination type.
It features copper alloy contacts, which provide optimal conductivity and signal integrity.
This connector has a right angle orientation, which supports compact designs in electronic devices.
This model has one port, designed as a female USB Type C connector.
It is suitable for applications in smartphones, tablets, personal computers, and digital cameras.
This model is part of JAE's DX07 series of USB-C connectors.
It is manufactured in Japan, ensuring high quality assurance.
This connector is a female USB Type C connector.
The reversible design allows for easy plug-in without orientation concerns, enhancing user convenience.
