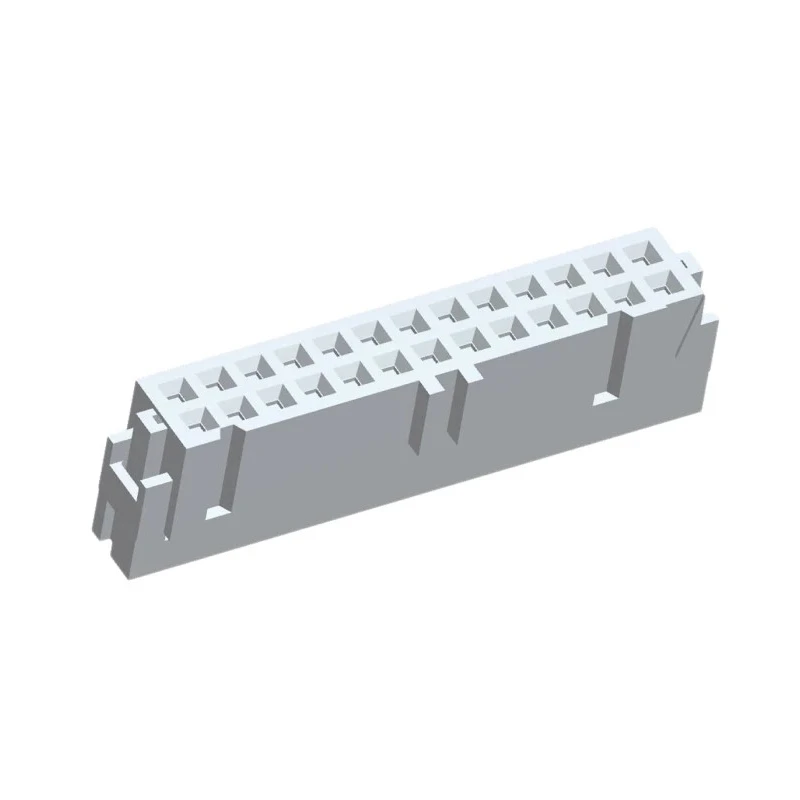

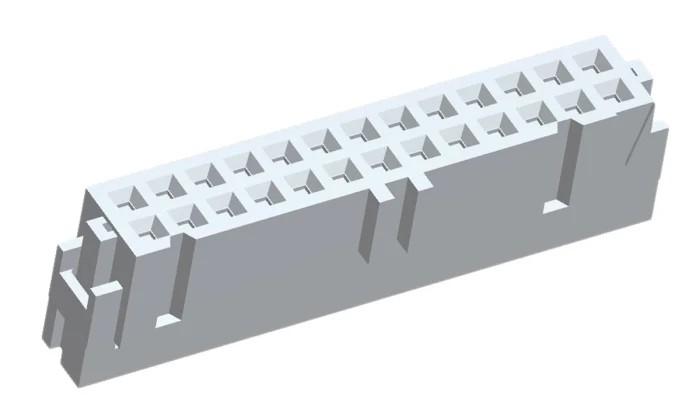

TE Connectivity 26-Way Shrouded IDC Connector Female for Cable, 2 Row, 500V AC, 1A, Gold over Nickel Plating 2-215915-6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The connector features 26 contacts arranged in 2 rows for reliable cable connections.
- Rated current is 1A with a voltage of 500V AC, suitable for many electronic applications.
- Gold over nickel plating on contacts ensures excellent conductivity and corrosion resistance.
- Connector is shrouded and oriented straight for secure cable mounting.
- Operating temperature ranges from -65°C to a maximum of 105°C, supporting various environments.
- Housing is made of durable thermoplastic material and contacts are phosphor bronze.
- Termination is by crimp method, using the AMP-LATCH series design standard.
- Designed primarily for ribbon cable applications with a pitch of 2.54 mm.
Product Description
TE Connectivity 2-215915-6 is a 26-Way Shrouded IDC (Insulation Displacement Connector) Female type connector designed for cable mounting with a straight orientation. It operates at 500V AC and supports a current rating of 1A, ideal for reliable electronic component connections in industrial, laboratory, and manufacturing settings.
This connector features 26 contacts arranged in 2 rows with a standard 2.54 mm pitch, suitable for interfacing with 1.27 mm pitch ribbon cables. Contact surfaces are plated with gold over nickel to ensure low contact resistance and enhanced corrosion protection. The contacts are made from phosphor bronze, providing excellent mechanical strength and electrical conductivity.
The housing is constructed from thermoplastic material offering durability and insulation. Its shrouded design safeguards the contacts and prevents accidental shorts. The connector uses crimp termination via the AMP-LATCH series, enabling quick and secure cable assembly. Operating temperature ranges from -65°C to 105°C, allowing use in harsh environments.
The design supports mate with 0.64 mm square or round posts with lengths ranging between 4.45 mm to 6.22 mm, typically soldered on PCBs. This product originates from China and is crafted to meet demanding IEC environments without specific formal approvals.
The connector provides 26 contact connection points in a compact form factor. It supports a maximum voltage of 500V AC and current of 1A. Gold over nickel plating ensures reliability in signal transmission and resistance to oxidation.
Construction features thermoplastic housing and phosphor bronze contacts. Suitable for use in electronics manufacturing, telecommunications, and industrial control systems. Applicable in ribbon cable assemblies with precise 2.54 mm pitch spacing.
Operating temperature ranges support diverse ambient conditions from cold to moderately hot. Termination type is crimp, enabling secure connections without soldering. Explore more IDC Connectors and electronic components on EnvMart to find compatible assemblies and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum voltage of 500V AC.
It supports a current rating of 1A.
This model features 26 contacts arranged in 2 rows.
The housing is made of thermoplastic material, while the contacts are made from phosphor bronze with gold over nickel plating.
The contact pitch is 2.54 mm, suitable for interfacing with 1.27 mm pitch ribbon cables.
It operates within a temperature range of -65°C to 105°C.
This connector uses crimp termination via the AMP-LATCH series design standard.
The connector is designed with a straight orientation for secure cable mounting.
The country of origin for this connector is China.
It is suitable for various electronic applications, including telecommunications and industrial control systems.
It is designed for cable mounting, specifically for ribbon cable assemblies.
The shrouded design safeguards the contacts and helps prevent accidental shorts during use.
