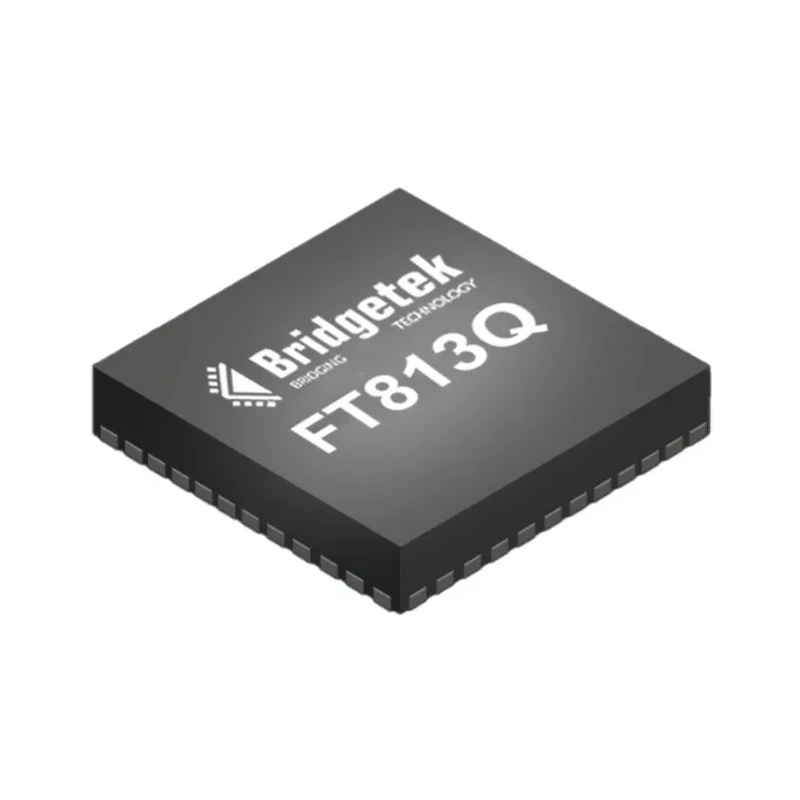

Bridgetek Graphics Controller 60 MHz 800 x 600 Pixels SPI 56-Pin VQFN FT813Q-T

Bridgetek FT813Q-T is an advanced graphics controller designed for embedded video applications requiring a maximum operating frequency of 60 MHz and up to 800 x 600 pixel resolution. Packaged in a 56-pin VQFN surface mount package, it provides a compact footprint for seamless integration into electronic designs.

The device features the EVE Embedded Video Engine, enabling efficient graphics control, audio management, and touch screen interfacing. It supports standard SPI interfaces with single, dual, or quad mode data lines and a SPI clock speed of up to 30 MHz.

With a supply voltage range from 1.8 to 3.3 V, the FT813Q-T can operate reliably within industrial temperature limits of -40 °C to 85 °C, making it robust for a wide range of industrial, commercial, and embedded system applications.

The controller supports 800 x 600 SVGA resolution with enhanced video RGB parallel output capabilities (24-bit for this model). It also supports multi-touch capacitive (5-touch) and resistive (4-wire) touch sensors, offering superior user interface functionality suitable for modern touch displays.

The integrated hardware engine enables recognition and tracking of up to 255 touch tags with notifications, facilitating advanced touch input handling. Additionally, the controller comes with 1 MB integrated graphics RAM, removing the need for external frame buffer memory and simplifying system design.

It supports playback of motion-JPEG encoded AVI video files and audio formats including mono 8-bit PCM, ADPCM, and µ-Law with built-in digital filtering, allowing rich multimedia functionality in embedded devices.

Maximum frequency: 60 MHz with SPI interface. Display resolution: 800 x 600 pixels (SVGA). Package: 56-pin VQFN surface mount. Supply voltage: 1.8 V to 3.3 V. Operating temperature: -40 °C to 85 °C. Supports 5-touch capacitive and 4-wire resistive touch screens.

Integrated 1 MB graphics RAM with no external frame buffer needed. Audio and video playback supported with built-in digital filtering. Power-saving modes: power down, sleep, standby. Meets Pb-Free and RoHS compliance.

This graphics controller is ideal for industrial, laboratory, embedded system, and consumer electronics applications requiring reliable and versatile video and touch interface solutions.
