Samtec Ribbon Cable Flat 1.27 mm Pitch, 34 Conductors, 100 mm Length, 63V Voltage FFTP-17-D-03.85-01-N

Free Delivery in India | Lowest Global Shipping Charges

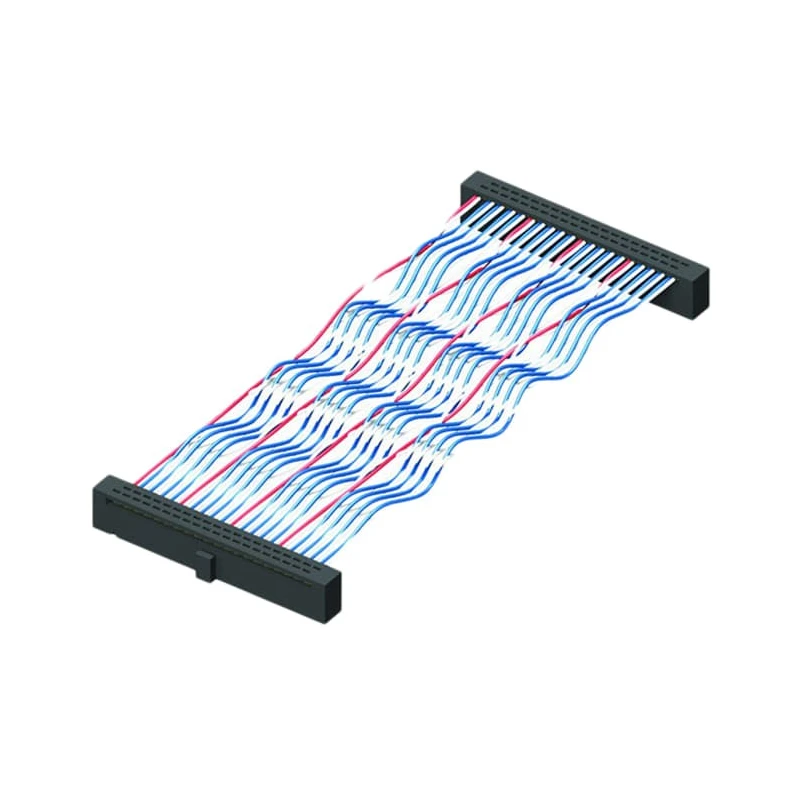

Samtec Ribbon Cable Flat 1.27 mm Pitch, 34 Conductors, 100 mm Length, 63V Voltage FFTP-17-D-03.85-01-N

Name: Samtec Ribbon Cable Flat 1.27 mm Pitch, 34 Conductors, 100 mm Length, 63V Voltage FFTP-17-D-03.85-01-N
Brand: Samtec
SKU: 135978
Price: 39.92 USD
Availability: InStock



Category Ribbon Cable Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	63V
Brand	Samtec
Model	FFTP-17-D-03.85-01-N
Cable Length	100mm
Series	FFTP
Maximum Operating Temperature	105°C
Conductor Material	Tin Copper Wire
Cable Type	Flat
Minimum Operating Temperature	-40°C
Jacket Material	Polyvinyl Chloride
Pitch	1.27mm
Standards/Approvals	RoHS Compliant, UL Listed
Jacket Colour	Red, Blue
American Wire Gauge	30AWG
Screened/Unscreened	Unscreened
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 38AWG
Size of Strands	38AWG
Number of Conductors	34

Key Features

The cable features stranded tin copper wire conductors with 7 strands per conductor for flexibility.
It operates at a voltage rating of 63 volts and supports a temperature range from -40°C to 105°C.
The jacket is made of polyvinyl chloride in red and blue colors, providing insulation and durability.
This unscreened cable is 100 mm in length and uses 30 AWG conductor gauge with 7 x 38 AWG core strands.
The cable assembly includes a double row female socket with highly reliable gold-plated IDC Tiger Eye contacts.
The product is RoHS compliant and UL listed, ensuring safety and quality standards compliance.

Product Description

Samtec FFTP-17-D-03.85-01-N is a flat ribbon cable from the FFTP series featuring a 1.27 mm pitch and 34 conductors. This cable is designed for reliable electrical connections in various industrial, automation, and electronics applications.

The cable uses stranded tin copper wire with 7 strands per conductor, housed in a polyvinyl chloride jacket colored in red and blue for easy identification. With a voltage rating of 63V and temperature capability from -40°C to 105°C, it suits demanding environments.

The cable length is 100 mm, equipped with 30 AWG conductor size and 7 x 38 AWG core strands, ensuring flexibility and durability for continuous use.

This unscreened Ribbon Cable features Tiger Eye™ IDC socket connectors with gold plated contacts and polarizing notch to ensure accurate mating into socket assemblies. It is RoHS compliant and UL listed, reflecting adherence to international standards.

The cable length is 100 mm with 34 stranded conductors. Voltage rating is 63 volts, supporting industrial and electronic applications. Operating temperature ranges from -40°C to 105°C. Jacket material is polyvinyl chloride in red and blue colors.

Connector series is FFTP with 1.27 mm pitch and Tiger Eye IDC socket contacts.

This product is ideal for wire to board cable assemblies in automated manufacturing, electronics testing, instrumentation, and other commercial uses requiring precise and durable cabling solutions. Compatible mating connectors include FTS, FTSH, EHF, and SHF series headers.
