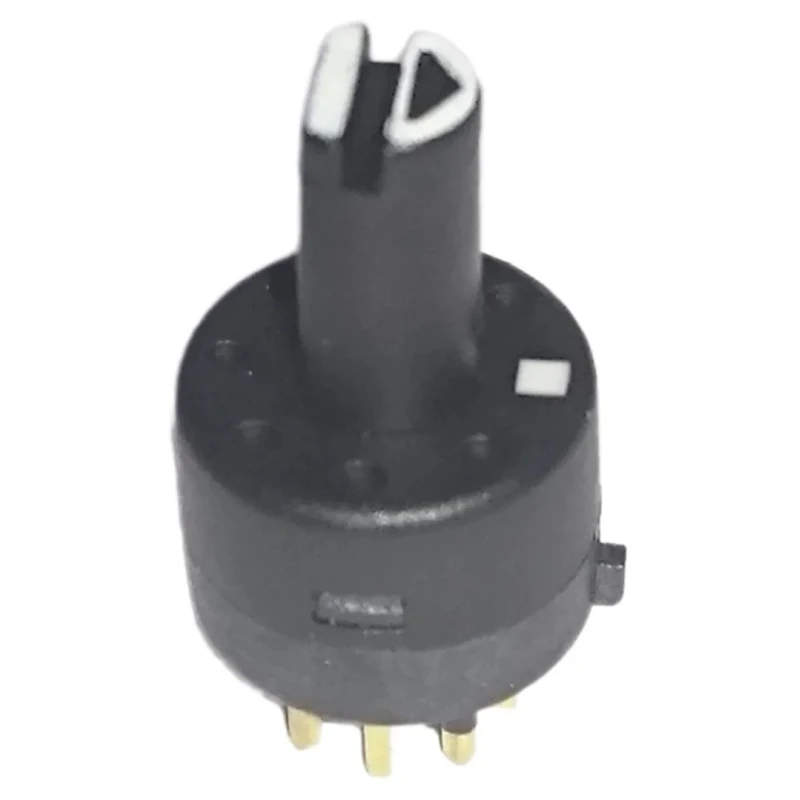

Lorlin MT Rotary Switch 500mA 24V DC 500V AC PCB Terminal Fibreglass Reinforced Polybutylene Terephthalate Moulded TO-5 SP3T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.2mm |
| Brand | Lorlin |
| Height | 14.2mm |
| Model | SP3T |
| Depth | 9.2mm |
| Width | 9.2mm |
| Mount Type | PCB |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | MT |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SP3T |
| Switch Configuration | Off |
| Minimum Operating Temperature | -30°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 8 |
| Standards/Approvals | RoHS |
| Switch Operation | Moulded 9.2mm diameter TO-5 Rotary Switch |
| Actuator Colour | Black |
| Switch Contact Current | 500mA |
| Mechanical Life | 5000Cycles |
| Maximum AC Voltage | 500V ac |
| Angle of Throw | 90 ° |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| Lorlin, 2 Position DP-NC Rotary Switch, 500 mA @ 24 V, Through HoleBrand | Lorlin |
Key Features
- Features a moulded 9.2mm diameter TO-5 package for compact installation.
- Switch contact current rating is 500mA at 24V DC and supports up to 500V AC.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- PCB mounting with PCB terminal type enables easy integration into circuit boards.
- Mechanical life expectancy of over 5000 cycles for reliable operation.
- Operating temperature range from -30°C to 65°C suitable for various environments.
- Provides 8 poles and SP3T switch contact configuration with 90-degree angle of throw.
- Non-illuminated actuator in black colour with positive action and 45° indexing.
Product Description
Lorlin SP3T Rotary Switch MTL-21-30 is an industrial-grade compact rotary switch designed for precise control in electrical circuits. It features a moulded 9.2mm diameter TO-5 package ideal for PCB mounting with robust fibreglass reinforced polybutylene terephthalate housing that ensures mechanical and thermal durability.
This rotary switch supports a switch contact current of 500mA at 24V DC and can withstand up to 500V AC voltage, making it suitable for a wide range of low power switching applications.
The switch configuration is SP3T with 8 poles, providing multiple switching positions with break-before-make contacts and a 90-degree angle of throw. Its black actuator is designed for positive engagement with 45° indexing for precise operation.
Designed to operate reliably in temperatures ranging from -30°C to 65°C, it has a mechanical life exceeding 5000 cycles, ensuring longevity in industrial, laboratory, and automation systems.
The PCB terminal mount type and footprint pin spacing of 2.54mm between pins and 5.08mm between rows facilitate straightforward integration into printed circuit boards for automation, control systems, and electronic switching.
Compact subminiature TO-5 package with moulded construction. High current rating of 500mA at 24V DC, 500V AC voltage tolerance. Fibreglass reinforced polybutylene terephthalate housing material. SP3T contact configuration with 8 poles and 90° angle of throw.
Mechanical life over 5000 operations and operating temperature -30°C to 65°C. Black actuator with positive indexing action and off switch configuration. PCB mounting with PCB terminal type and standard pin spacing.
This Lorlin Rotary Switch is ideal for use in industrial automation, instrumentation controls, electrical panels, and other applications requiring reliable switching in compact spaces. Browse our Electronics & Electricals category to explore more switches and components suitable for diverse technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a maximum contact current rating of 500mA at 24V DC.
It can withstand up to 500V AC voltage, making it suitable for various low power switching applications.
The operating temperature range is from -30°C to 65°C, allowing it to function in various environments.
This model features 8 poles with an SP3T contact configuration.
It is designed for PCB mounting with a PCB terminal type for easy integration into circuit boards.
The TO-5 package has a diameter of 9.2mm, making it compact for installation.
The mechanical life expectancy exceeds 5000 cycles, ensuring reliable operation over time.
The dimensions are 9.2mm in width, depth, and a height of 14.2mm.
The angle of throw for this model is 90 degrees, allowing for precise operation.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, which provides durability.
This model complies with RoHS standards, ensuring it meets environmental regulations.
The actuator is black in color and features positive action with 45° indexing.
