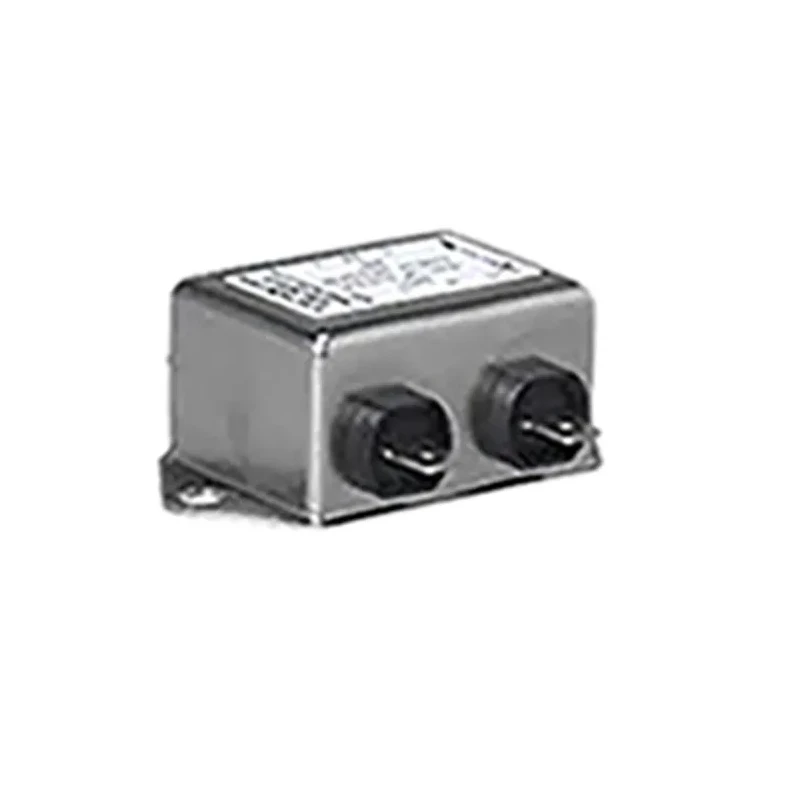

Schurter Single Phase Screw Mount RFI Filter 3A 250V AC 50Hz/60Hz Quick Connect FMBB NEO 5500.2631.01

Free Delivery in India | Lowest Global Shipping Charges

Schurter Single Phase Screw Mount RFI Filter 3A 250V AC 50Hz/60Hz Quick Connect FMBB NEO 5500.2631.01

Name: Schurter Single Phase Screw Mount RFI Filter 3A 250V AC 50Hz/60Hz Quick Connect FMBB NEO 5500.2631.01
Brand: Schurter
SKU: 135773



Category EMI Filters & Protection Brand Schurter Condition New

Specifications

Country of Origin	China
Brand	Schurter
Height	24.8mm
Length	64mm
Depth	44mm
Mount Type	Screw
Operating Frequency	50, 60Hz
Series	FMBB NEO
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	83mΩ
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	500μA
Maximum Voltage	250V ac
Standards/Approvals	UL1283
Termination Style	Quick Connect
Power Loss	1.5W

Key Features

Operates efficiently at an operating frequency of 50 and 60 Hz.
Compact design with dimensions 64mm length, 24.8mm height, and 44mm depth.
Constructed with a full metal housing providing sturdy protection and symmetrical interference attenuation.
Allows a maximum leakage current of 500 microamps ensuring minimal power loss.
Rated for a maximum operating temperature of 100°C and minimum of -25°C.
Features a resistance of 83 milliohms and low power loss of 1.5W.
Certified to standard UL1283 for safety and compliance.
Professional grade filter suitable for industrial, household, and medical equipment.

Product Description

Schurter 5500.2631.01 is a professional single phase RFI filter from the FMBB NEO series designed for screw mounting applications. It supports a maximum current of 3 amperes and operates at 250 volts AC across 50 and 60 Hz frequencies. The filter features quick connect termination style and is enclosed in a durable full metal housing that offers robust protection and excellent symmetrical interference attenuation.

Dimensions of the filter are 64 mm in length, 24.8 mm in height, and 44 mm in depth, making it a compact component suitable for tight installations.

This filter is designed to support industrial, household, and medical equipment where high symmetrical interference suppression is critical. It has a leakage current rating of 500 microamps and a low power loss of 1.5 watts, contributing to efficient operation. The device is rated for extreme conditions, operating between -25°C and 100°C.

Resistance across the filter is low at 83 milliohms, enhancing electrical performance while ensuring safety standards compliance under UL1283 certification. As a member of the FMBB NEO series, it represents a cost-effective yet high-performance solution to reduce electromagnetic interference in electrical systems.

Operates efficiently at 50 and 60 Hz frequencies. Durable full metal housing for enhanced protection. Quick connect termination for easy installation and maintenance. Leakage current limited to 500 microamps. Supports industrial, household, and medical equipment applications.

Compact size with dimensions of 64mm x 24.8mm x 44mm. Complies with UL1283 for safety and quality assurance. Low power loss of 1.5 watts improves system efficiency. Wide operating temperature range from -25°C to 100°C. Low resistance of 83 milliohms minimizes electrical loss.

The Schurter FMBB NEO 5500.2631.01 RFI filter is an essential component for mitigating electromagnetic interference and ensuring seamless operation of various electrical devices in industrial, medical, and household environments. Explore more products in EMI filters and power line filters categories at EnvMart for comprehensive electrical solutions.
