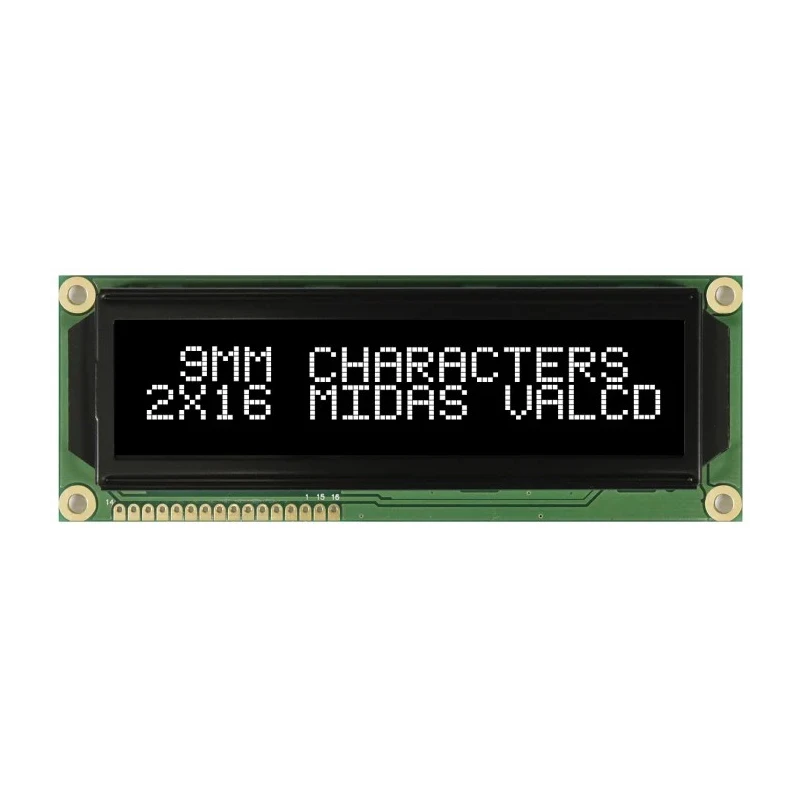

Midas MC21609A12W-VNMLW Alphanumeric LED LCD Monochrome Display White on Black 2 x 16 MC21609A12W-VNMLW
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | Alphanumeric |
| Brand | Midas |
| Model | MC21609A12W-VNMLW |
| Series | MC21609 |
| Character height | 9.2mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 122mm |
| External Depth | 13.6mm |
| External Height | 44mm |
| Interface Type | Parallel |
| Standards/Approvals | RoHS |
| Character Width | 4.8mm |
| Illumination Colour | White |
| Viewing Area Dimensions | 99 x 24 mm |
| Backlight Type | LED |
| Character Matrix | 2 x 16 |
Key Features
- The viewing area dimensions measure 99 x 24 mm for optimal readability.
- It utilizes a parallel interface type for connection.
- The display is constructed with chip-on-board technology enhancing mechanical robustness.
- Operational temperature ranges from -20°C to 70°C, suitable for varied environments.
- The character height and width are 9.2 mm and 4.8 mm respectively for clear visual output.
- The external dimensions are 122 mm width, 44 mm height, and 13.6 mm depth.
- The bezel is included in the display assembly.
- The illumination color is white, providing high contrast with the black background.
Product Description
Midas MC21609A12W-VNMLW alphanumeric LED LCD Monochrome Display is designed for industrial and commercial applications requiring clear text output in an efficient form factor. This module features a 2 x 16 character matrix with super twisted nematic technology and chip-on-board construction for enhanced durability.
The display offers a sizeable viewing area of 99 x 24 mm housed within a compact bezel-included assembly measuring 122 mm by 44 mm by 13.6 mm, making it suitable for installation in control panels, instrumentation, and embedded displays. Its white LED backlight on a black background ensures excellent contrast and readability even in low light conditions.
With a parallel interface, it is compatible with standard HD44780 equivalent controllers facilitating easy integration into electronic systems. Operating across a wide temperature range from -20°C to +70°C, it maintains reliable performance in diverse industrial and laboratory environments.
Character dimensions include a height of 9.2 mm and width of 4.8 mm, supporting clear text representation. This display is RoHS compliant, underscoring its adherence to environmental and safety regulations.
The display is chip-on-board (COB) constructed for compactness and robustness. It supports STN and FSTN display technologies, enhancing viewing quality. Suitable for electronic component, power, and connector assemblies within automation and instrumentation sectors.
Its positive and negative modes allow alternative display appearances as needed by the application. The bezel inclusion simplifies mounting and protection. Operational temperature rating from -20°C to 70°C ensures longevity in harsh conditions.
Standard on-board character sets compatible with most controller ICs.
This reliable LCD module suits industrial, laboratory, manufacturing, and electronic development use. Explore the range of Midas displays for various alphanumeric, graphical, and monochrome display needs on EnvMart.
