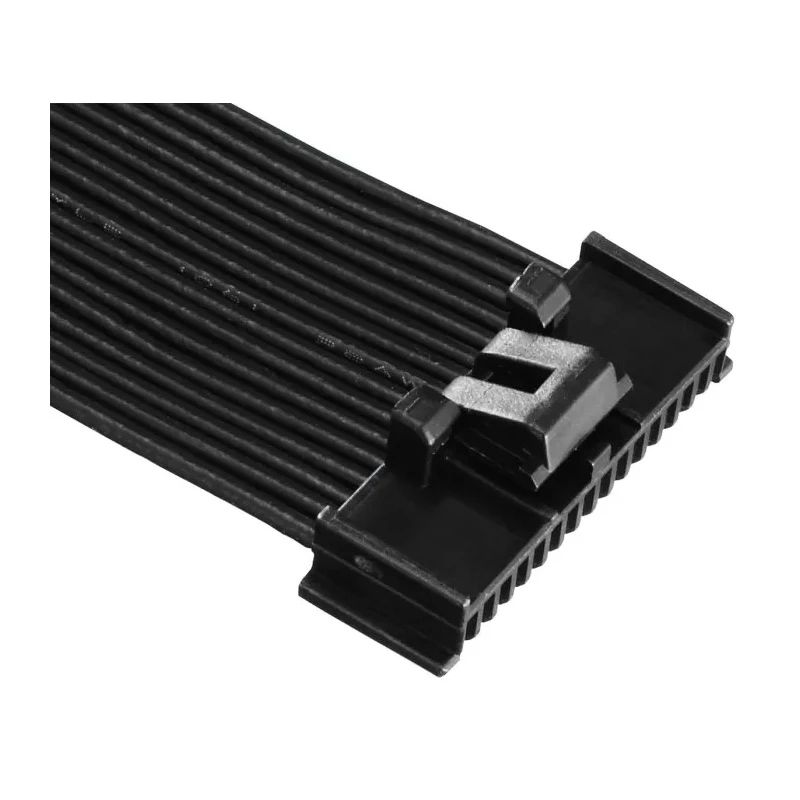

Hirose DF50 Female Connector Housing 1 mm Pitch 16 Way 1 Row Straight DF50
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 17.95mm |
| Model | DF50 |
| Width | 6.85mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | DF50 |
| Interfaces | LAN |
| Number of Rows | 1 |
| Pitch | 1mm |
| For Use With | DF50A Connector |
| Number of Contacts | 16 |
| Connector Gender | Female |
Key Features
- Features a positive locking latch mechanism with tactile and audible click.
- Made from black UL94V-0 Polybutylene Terephthalate (PBT) housing material.
- Compatible with DF50A Connector series for use with crimp contacts sold separately.
- Suitable for industrial, office equipment, automotive, and consumer electronics applications.
- Offers reliable connection in high vibration environments such as car audio and navigation systems.
- Connector has 16 contacts arranged in 1 row with 1 mm pitch spacing.
- Orientation is straight cable mount allowing ease of wiring integration.
Product Description
Hirose DF50 Female Connector Housing DF50 is a 1 mm pitch, 16 way, single row straight cable mount connector housing constructed from durable black Polybutylene Terephthalate (PBT) material rated UL94V-0. It is engineered to provide robust and secure connections in demanding environments including industrial controllers, office equipment, automotive electronics, and digital consumer devices such as LCD TVs, PDPs, and notebooks.
The housing features a positive locking latch mechanism that produces a tactile and audible click upon mating, ensuring a firm connection that resists loosening from vibrations. The thick-walled construction prevents cracking and enhances mechanical stability. This connector housing is designed for use with Hirose DF50A crimp socket contacts (sold separately) and is compatible with mating DF50 series headers, facilitating flexible interconnections.
Key dimensions include a compact length of 17.95 mm and width of 6.85 mm, making it ideal for space-constrained PCB wire-to-board applications. The single row 16-contact configuration with 1 mm pitch spacing provides reliable signal or power distribution over cables. With its cable mount and straight orientation, this housing enables straightforward wiring assembly without complex bends.
Applications span industrial equipment, automotive navigation and audio systems, wireless LAN devices, and consumer electronics. It provides a dependable interface optimized for high vibration scenarios and long-term use.
Positive locking latch for secure, vibration-resistant connections. Made from black UL94V-0 rated Polybutylene Terephthalate (PBT) housing. 16 contacts arranged in a single row with 1 mm pitch spacing. Compatible with DF50A crimp socket contacts and DF50 series headers.
Compact length of 17.95 mm and width of 6.85 mm.
Explore the wide selections of Connector Housings and electrical components available at EnvMart to find the perfect fit for your industrial, commercial, or consumer electronic projects. Enhance your designs with Hirose's trusted quality connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing features a 1 mm pitch and has 16 contacts arranged in a single row.
It is constructed from black Polybutylene Terephthalate (PBT) material, rated UL94V-0.
The housing has a length of 17.95 mm and a width of 6.85 mm.
It supports cable mounting, allowing for straightforward wiring integration.
This housing is designed for use with DF50A crimp socket contacts, which are sold separately.
It is suitable for industrial equipment, automotive navigation and audio systems, wireless LAN devices, and consumer electronics.
Yes, it features a positive locking latch mechanism that provides a tactile and audible click upon mating, ensuring a secure connection.
The orientation is straight, which facilitates ease of wiring integration without complex bends.
Yes, it is engineered to provide reliable connections in high vibration environments, such as car audio and navigation systems.
This model is part of the DF50 series, which includes compatible headers for flexible interconnections.
The country of origin for this connector housing is China.
This connector housing has 1 row for its 16 contacts.
