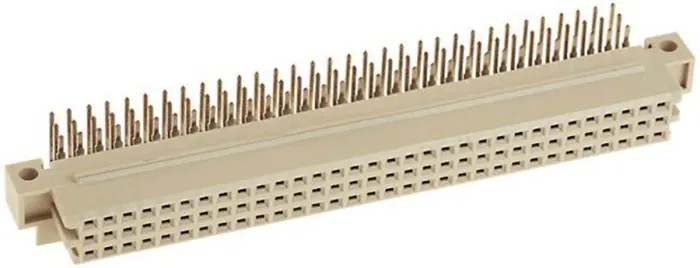

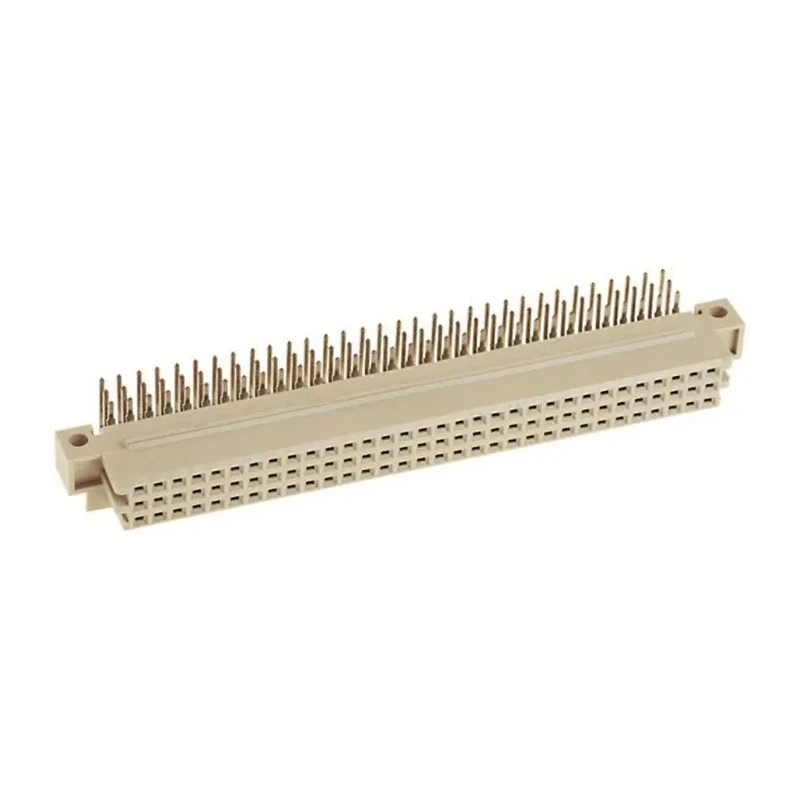

HARTING DIN 41612 Type R Right Angle Female 32 Way 2.54 mm Pitch 3 Row Solder Connector 09732326801

HARTING 09732326801 DIN 41612 Type R Right Angle Female Connector features 32 contacts arranged in 3 rows, designed specifically for high reliability PCB interconnections in industrial and electronic applications. Its 2.54 mm pitch and solder termination provide secure electrical connections in demanding environments.

The copper alloy contacts plated with gold over nickel combine excellent conductivity with corrosion resistance, ensuring sustained performance over extended use. The housing is made from thermoplastic resin reinforced with glass fibers, offering strength and chemical stability, capable of withstanding operating temperatures ranging from -55°C up to 125°C.

This connector supports a maximum current rating of 2A per contact and maintains a low maximum contact resistance of 20 milliohms, which is critical for signal integrity in backplane and rack-mounted applications.

Engineered to comply with DIN 41612 standards, the Type R connector is ideal for use in all 19-inch Eurocard racking systems, commonly deployed in industrial control panels, telecommunications, instrumentation, and computing hardware.

Comprises 32 contacts arranged in 3 rows for flexible signal routing. Maximum current rating of 2 amperes per contact for power handling. Gold over nickel plating on copper alloy contacts for excellent conductivity and durability.

Thermoplastic resin housing reinforced with glass fiber for mechanical robustness. Operating temperature range from -55°C to 125°C ensures application versatility. Right angle female orientation facilitates compact PCB assembly.

Standard DIN 41612 compliance guarantees compatibility with Eurocard systems. Manufactured in Germany ensuring product quality and precision engineering. Low contact resistance up to 20 milliohms to minimize energy loss.

This connector is widely used across industries including electronics manufacturing, telecommunications, industrial automation, and test equipment to ensure stable and reliable signal transmission. Its robust design helps reduce maintenance and replacement costs in complex electronic systems.
