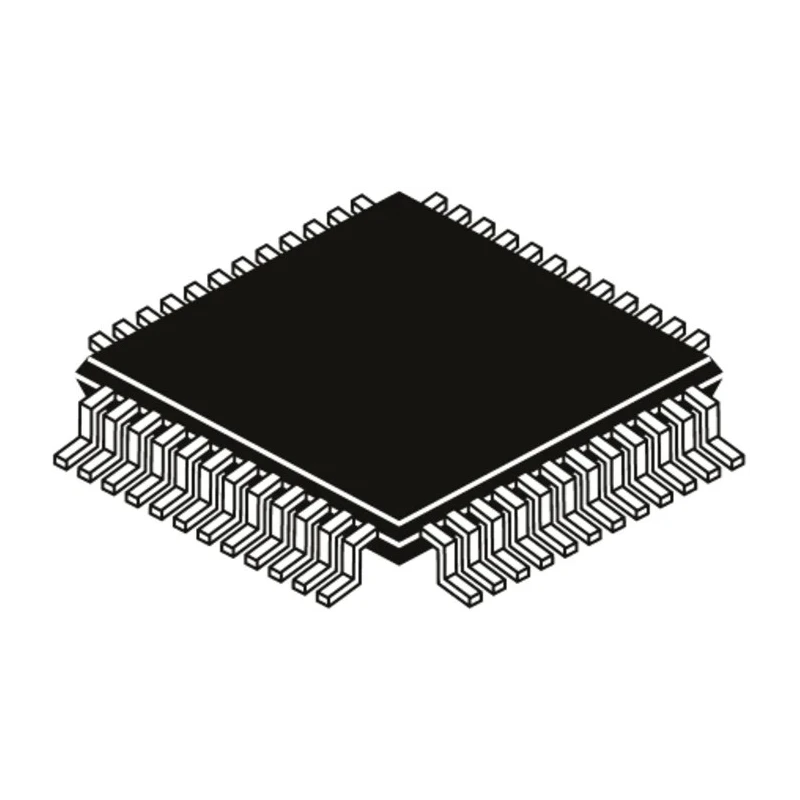

MaxLinear 2-Channel UART RS422 RS485 IrDA 48-Pin TQFP XR16L2750CM-F
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | MaxLinear |
| Height | 1.2mm |
| Length | 9.2mm |
| Model | XR16L2750CM-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | TQFP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Maximum Data Rate | 6.25Mbps |
| Standard Supported | RS422, RS485, IrDA |
| Transmit FIFO | 64bit |
| Receive FIFO | 64bit |
Key Features
- Provides two independent UART channels.
- Supports transmit and receive FIFOs of 64 bits each.
- Operates with a maximum data rate of 6.25Mbps.
- Designed for surface mount applications with a compact 9.2mm by 1.2mm form factor.
- Operates reliably within 0°C to 70°C temperature range.
- Supports popular asynchronous serial communication protocols including RS422, RS485, and IrDA.
- Ideal for electronic, communication, and interface IC applications.
- Manufactured in Indonesia ensuring consistent quality standards.
Product Description
MaxLinear XR16L2750CM-F is a high-performance 2-channel Universal Asynchronous Receiver/Transmitter (UART) integrated circuit designed to support RS422, RS485, and IrDA communication protocols. It comes in a compact 48-pin Thin Quad Flat Package (TQFP) and is suitable for surface mount technology, making it ideal for modern electronic circuit board designs.
Each channel features 64-bit transmit and receive FIFOs, providing efficient buffering for data transfers with a maximum rate of 6.25 Mbps. The device operates with supply voltages ranging from 2.5V to 5.5V, ensuring compatibility with a wide range of industrial and commercial electronics.
The XR16L2750CM-F maintains reliable performance over a temperature range from 0°C to 70°C, suitable for typical ambient conditions found in industrial and commercial environments. Its small footprint of 9.2mm length and 1.2mm height contributes to compact circuit designs.
This UART peripheral facilitates seamless asynchronous serial communication in applications such as control systems, communication devices, embedded systems, and industrial instrumentation.
Two UART communication channels for simultaneous data handling. 64-bit transmit and receive FIFO buffers for high data throughput. Support for widely deployed communications standards: RS422, RS485, and IrDA. Surface mount TQFP package enabling space-efficient PCB layouts.
Operating voltage from 2.5V to 5.5V for versatile power supply integration. Operational temperature range suitable for industrial ambient conditions. Manufactured in Indonesia ensuring quality and regulatory compliance.
This device is an excellent choice for engineering industrial, laboratory, manufacturing, and communication system applications requiring robust serial interface solutions. It blends modern packaging with reliable UART technology for embedded system communications.
Discover more quality semiconductor products in the Interface ICs category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 6.25 Mbps.
It supports RS422, RS485, and IrDA communication protocols.
The operating temperature range is from 0°C to 70°C.
This model has a length of 9.2 mm and a height of 1.2 mm.
It features two independent UART channels.
The supply voltage ranges from 2.5V to 5.5V.
It comes in a 48-pin Thin Quad Flat Package (TQFP).
This unit is designed for surface mount applications.
Each channel has a 64-bit transmit FIFO and a 64-bit receive FIFO.
It is manufactured in Indonesia.
It is suitable for control systems, communication devices, embedded systems, and industrial instrumentation.
The 64-bit FIFO buffers allow for efficient data buffering and high throughput during data transfers.
