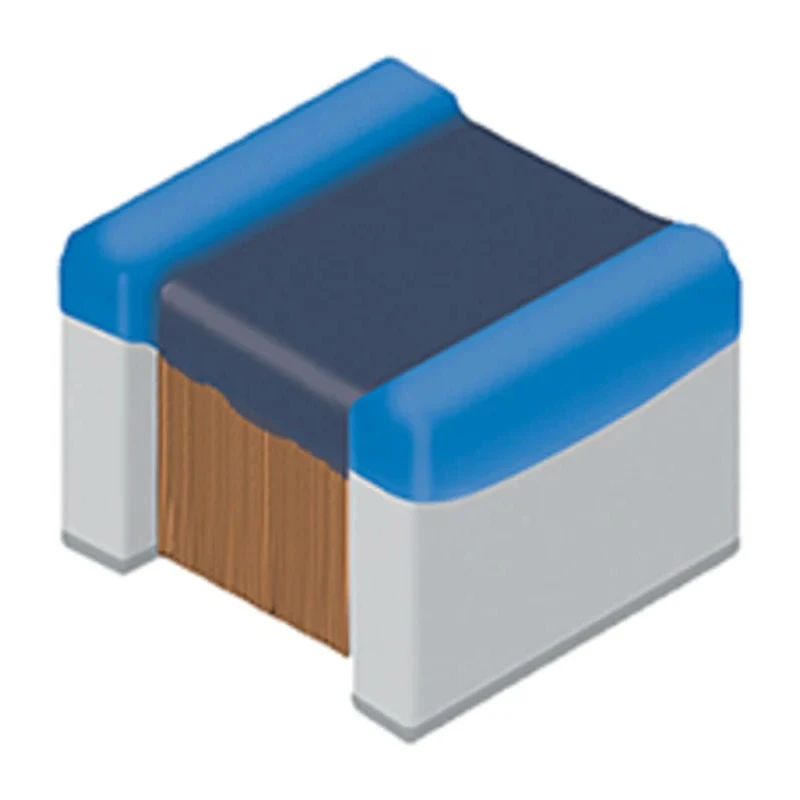

Murata 0805 Shielded Wirewound Surface Mount Inductor Non-Magnetic Core 0.47μH ±5% 250mA LQW2BASR47J00L

Name: Murata 0805 Shielded Wirewound Surface Mount Inductor Non-Magnetic Core 0.47μH ±5% 250mA LQW2BASR47J00L
Brand: Murata
SKU: 134234
Price: 0.11 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Dimensions	2.09 x 1.53 x 1.42 mm
Height	1.42mm
Length	2.09mm
Model	LQW2BASR47J00L
Depth	1.53mm
Operating Temp	-55→ +125°C
Packaging	Paper Tape
Series	LQW
Maximum Operating Temperature	125°C
Package Type	0805
Minimum Operating Temperature	-55°C
Core Material	Non-Magnetic Core
Inductance	0.47μH
Standards/Approvals	RoHS
Package/Case	0805
Maximum DC Current	250mA
Pin Count	2
Maximum DC Resistance	1.76Ω
Inductance Tolerance	±5 %
Termination Style	Solder
Maximum Self Resonant Frequency	300MHz
Minimum Quality Factor	33
Inductor Construction	Wirewound

Key Features

Compact 0805 package size with dimensions 2.09 x 1.53 x 1.42 mm for space-saving PCB designs.
Made with a non-magnetic core to minimize interference and maintain signal integrity.
High quality factor of 33 supporting frequencies up to 300 MHz for high-frequency circuit applications.
Rated for operating temperatures from -55°C to 125°C ensuring reliability in harsh environments.
RoHS compliant and molded wirewound construction for durability and safety.
Low maximum DC resistance of 1.76 ohms to reduce power loss and improve efficiency.
Supplied in paper tape packaging facilitating automated assembly processes.
Termination style designed for solder mounting on surface mount technology (SMT) circuits.

Product Description

Murata LQW2BASR47J00L is a precision 0805 shielded wirewound Surface Mount Inductor designed for high-frequency and high-reliability applications. Featuring a compact footprint with dimensions of 2.09 x 1.53 x 1.42 mm, this inductor is ideal for densely packed printed circuit boards where space is critical.

It utilizes a non-magnetic core to minimize magnetic interference, making it suitable for sensitive electronic circuits requiring stable inductance values. The inductance of 0.47 microhenries with a ±5% tolerance ensures consistent performance in critical filtering and tuning tasks.

This component supports a maximum DC current rating of 250 mA and exhibits a low maximum DC resistance of 1.76 ohms, reducing power dissipation and enhancing circuit efficiency. Its high quality factor (Q) of 33 at frequencies up to 300 MHz caters to ultra-high frequency (UHF) to super high frequency (SHF) applications.

Operating across a wide temperature range from -55°C to 125°C, the Murata LQW2BASR47J00L maintains performance in demanding industrial, automotive, and telecommunications environments. The molded wirewound construction and RoHS compliance guarantee durability and environmental safety.

The inductor is supplied on a paper tape reel, streamlining automated assembly and manufacturing processes. Its solder termination style is compatible with standard surface mount technology (SMT) assembly.

Manufactured in Japan, this Murata inductor assures quality and precision suitable for electronics manufacturers, component distributors, and designers requiring reliable passive components for high-frequency circuits.

Compact 0805 package with precise dimensional control. Non-magnetic core for minimal interference. Rated for high-frequency applications with Q factor of 33. Wide operating temperature range from -55°C to 125°C. Molded wirewound construction, RoHS compliant.

Low DC resistance of 1.76 ohms for efficient performance. Paper tape packaging for automated SMT assembly. Manufactured in Japan with strict quality standards.
