RF Solutions Remote Control System 16 km Range 869.5 MHz LoRa Modulation 12 to 32 V AC/DC 110 to 230 V AC PRO-LORAT16-8S10

RF Solutions PRO-LORAT16-8S10 Remote Control System is a high-performance DIN Rail mounted control system operating at 869.5 MHz using LoRa modulation technology. Featuring a 16 km range, it is designed for secure and reliable remote control applications in industrial, commercial, and agricultural environments.

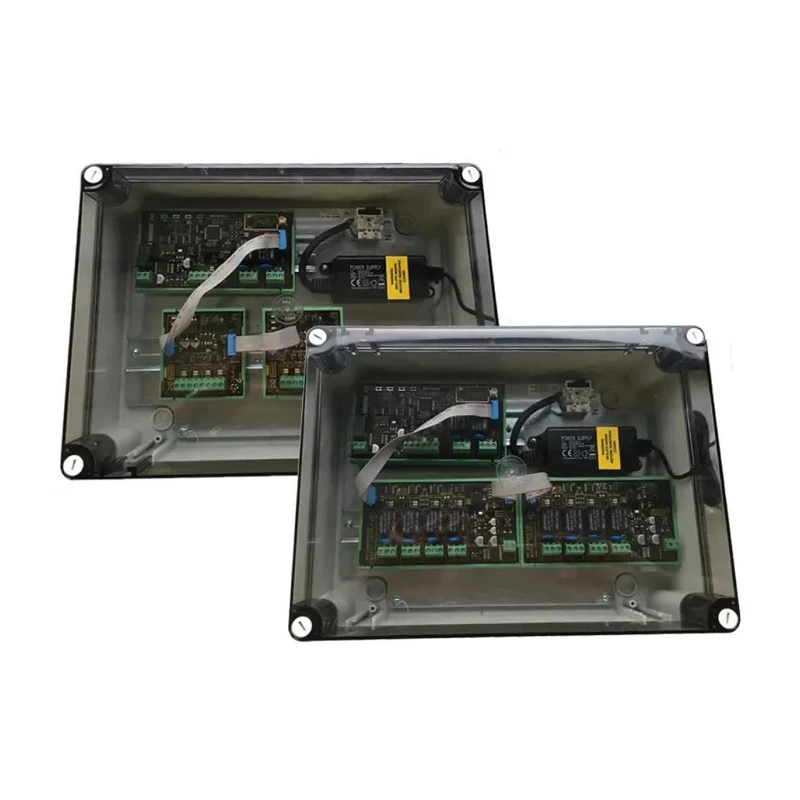

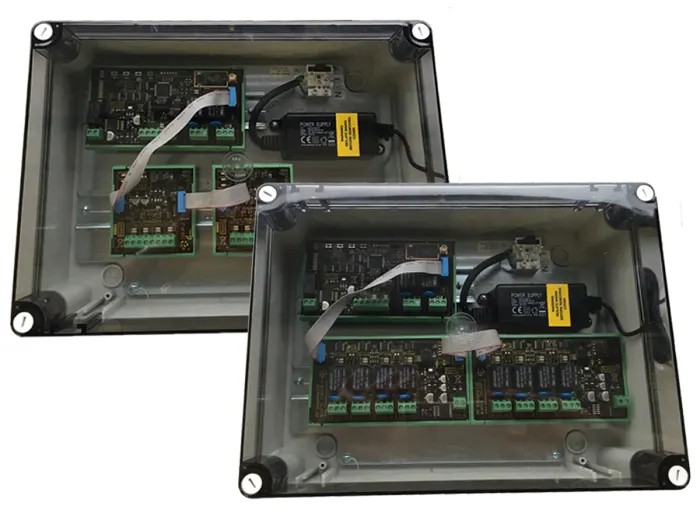

The system supports 10 independent channels, enabling versatile control scenarios such as lighting management, door access, quarry machinery operation, and general-purpose remote switching. The transmitter and receiver units are enclosed in robust IP65 rated enclosures, suitable for harsh environments and outdoor installation.

Operating with a flexible nominal supply voltage of 12 to 32 V AC/DC or 110 to 230 V AC, this remote control system ensures stable performance across a broad voltage input range and temperature spectrum from -10°C to 50°C. Its compact dimensions (315 mm width, 235 mm height, and 130 mm depth) offer easy DIN Rail mounting within electrical panels.

The product complies with relevant EU environmental directives, including the WEEE Directive 2002/96/EC, RoHS Directive 2002/95/EC, and Waste Batteries and Accumulators Directive 2006/66/EC, reflecting its environmentally responsible design. Additional transmitters can be integrated to expand the system’s capabilities as needed.

The system supports 10 channels with a nominal supply voltage range of 12 to 32 V AC/DC and 110 to 230 V AC. Designed for reliable operation with a secure transmission protocol and IP65 rated enclosure. Operating temperature range from -10°C to 50°C ensures robust performance in various environments.

DIN Rail mountable system ideal for industrial and commercial remote control applications. Applications include lighting control, general purpose switching, door control, quarry remote switching, access control, and machinery control.

Additional transmitters can be added for expanded control capabilities. The transmitter and receiver units are housed in durable, weather-resistant enclosures for outdoor use. Compliance with WEEE Directive 2002/96/EC, RoHS Directive 2002/95/EC, and Waste Batteries and Accumulators Directive 2006/66/EC.

Dimensions: Width 315mm, Height 235mm, Depth 130mm for compact installation.

This remote control system is suitable for industrial automation, building management, and machinery control applications where reliable and long-range control is essential. Environmentally conscious industries benefit from its compliance with EU environmental standards, and the secure LoRa modulation protects transmission integrity.
