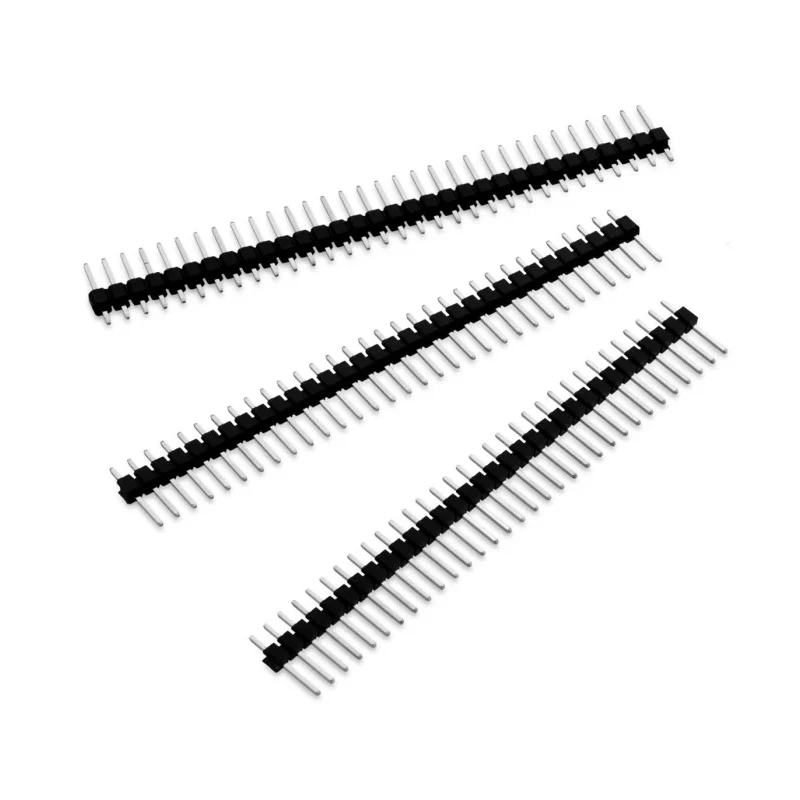

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header, 16 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded 61301611121

Wurth Elektronik 61301611121 is a WR-PHD Series straight through hole pin header designed for robust electronic and electrical applications. It features 16 contacts arranged in a single row with a 2.54 mm pitch that fits typical PCB header layouts.

The connector includes gold-plated copper alloy contacts housed in a black polyamide material rated for UL94-V0 fire resistance, ensuring both electrical performance and safety. This pin header is unshrouded with male contact gender, suitable for board-to-board connector systems.

With a maximum current rating of 3A and voltage rating of 250V, it supports moderate power applications. The operating temperature range from -40°C to 105°C allows it to function reliably in diverse environments, including industrial, laboratory, HVAC, telecommunications, and manufacturing settings.

The tail pins provide 3mm length for solder termination via through hole mount, enhancing mechanical stability. The mating pin length of 6mm ensures good electrical contact with the mating connector.

This component is ideal for circuit board interconnections that require precision and durability without shielding features. It is widely used in electronic assemblies for power distribution, signal routing, and data communications.

Manufactured in Taiwan, Province Of China, the Wurth WR-PHD pin header ensures consistent quality aligned with industry standards. Features 16 gold-plated copper alloy contacts ensuring reliable electrical connectivity. Equipped with a polyamide housing providing durability and UL94-V0 flammability rating.

Designed for through hole mounting with a straight orientation. Supports a maximum current rating of 3A and voltage rating of 250V. Operates reliably between -40°C and 105°C temperature range. Tail pin length is 3mm and mating pin length is 6mm for secure connections.

Connector system is board-to-board without any shroud for ease of soldering. Ideal for electronic components, power and connector assemblies. Manufactured in Taiwan, Province Of China, ensuring high quality standards. Explore the Electronics & Electricals category at EnvMart for more PCB connectors, power connectors, and related components from leading brands like Wurth Elektronik.
