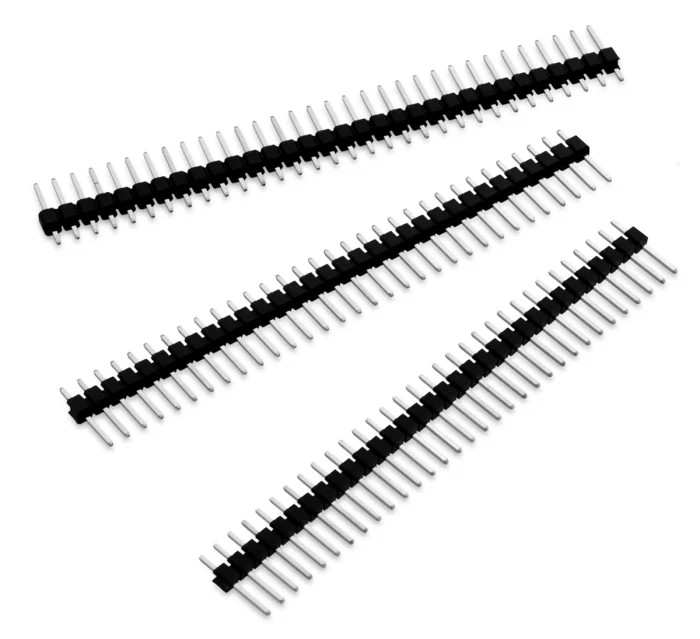

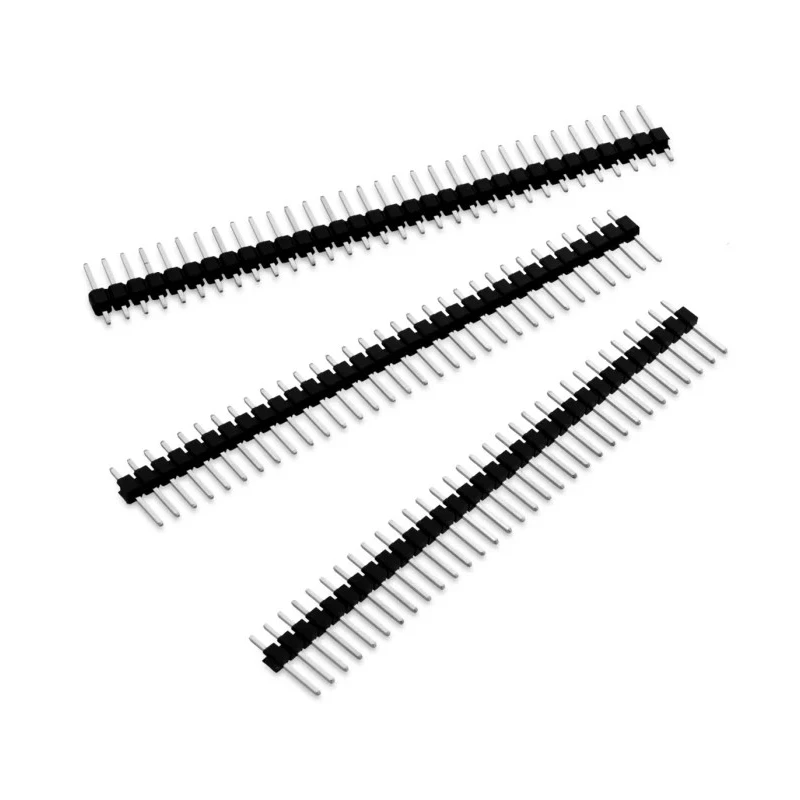

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header, 9 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 61300911121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- Constructed with polyamide housing for durability and performance.
- Features gold-plated copper alloy contacts for reliable electrical connectivity.
- Operates up to a maximum temperature of 105°C and minimum of -40°C.
- Designed for board-to-board connection with straight male contacts.
- Supports a current rating of 3A and voltage rating of 250V.
- Tail pin length is 3 mm and mating pin length is 6 mm for secure insertion.
- This unshrouded header has a 2.54 mm row pitch and is suitable for various electronic assemblies.
- Ideal for industrial and electronic manufacturing applications requiring robust connectivity.
Product Description
Wurth Elektronik 61300911121 WR-PHD Series Straight Through Hole Pin Header features a 2.54 mm pitch and 9 male contacts arranged in a single straight row, making it an ideal connector for board-to-board electronic applications. This pin header is designed to be mounted through the PCB using a through-hole technique, ensuring secure and stable mechanical connection.
The housing is made from polyamide material, providing robust insulation and durability, while the contacts are constructed from copper alloy and have gold plating for enhanced corrosion resistance and excellent conductivity. The product operates safely within a temperature range of -40°C to 105°C, supporting demanding industrial and commercial applications.
Rated to carry currents up to 3A and voltages up to 250V, this pin header supports a variety of circuit requirements. Its unshrouded, straight connector design facilitates easy integration and solder termination, with tail pins 3 mm long and mating pins 6 mm long for optimal connection reliability.
WR-PHD series connectors from Wurth Elektronik are widely used in electronic manufacturing, prototyping, and industrial control systems. Their standardized pitch and size ensure compatibility across a broad range of PCB header applications.
With no special certifications, this new product originates from Taiwan, Province Of China. It delivers consistent performance in electronic component assemblies requiring high-quality pin headers.
Constructed with polyamide housing for durability and performance. Features gold-plated copper alloy contacts for reliable electrical connectivity. Operates up to a maximum temperature of 105°C and minimum of -40°C. Designed for board-to-board connection with straight male contacts.
Supports a current rating of 3A and voltage rating of 250V. Tail pin length is 3 mm and mating pin length is 6 mm for secure insertion. This unshrouded header has a 2.54 mm row pitch and is suitable for various electronic assemblies.
Ideal for industrial and electronic manufacturing applications requiring robust connectivity. Explore more PCB Headers and electronic components on EnvMart for reliable sourcing and technical support.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 250V.
This model supports a current rating of 3A.
The pitch size of the WR-PHD Series pin header is 2.54 mm.
It operates within a temperature range of -40°C to 105°C.
The housing is made from polyamide, while the contacts are constructed from copper alloy with gold plating.
The tail pins are 3 mm long, and the mating pins are 6 mm long.
This pin header uses solder termination.
Yes, it is designed for through-hole mounting on PCBs.
This pin header has 9 contacts arranged in a single row.
It supports a board-to-board connector system.
The contacts are oriented straight in a single row.
This pin header is manufactured in Taiwan.
