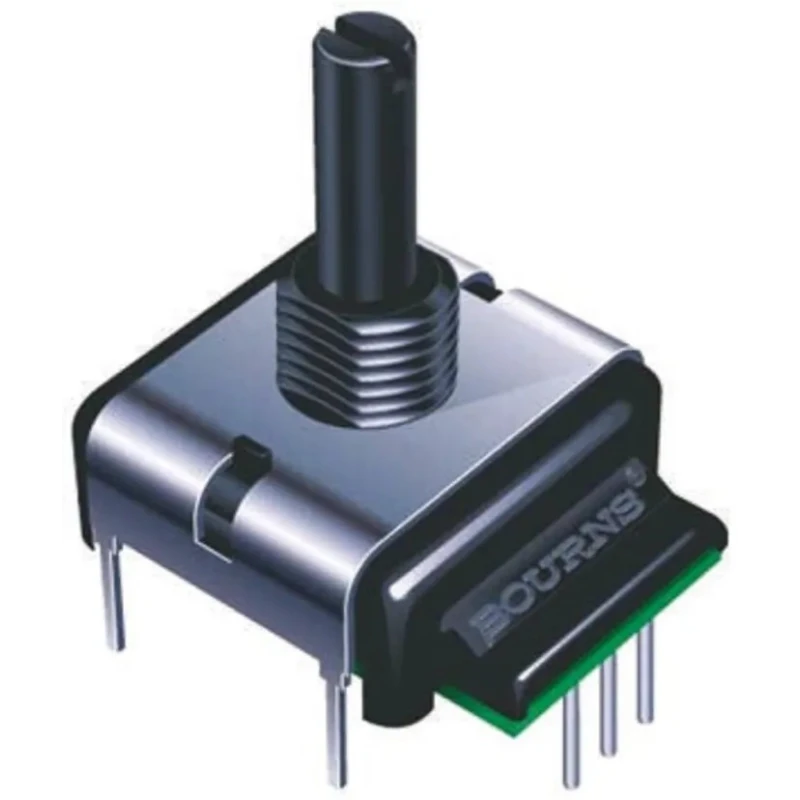

Bourns ECW Series Incremental Digital Contacting Encoder 10V, 24 ppr, Digital Signal, Solid Shaft 6.35 mm ECW1J-R19-AC0024L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Model | ECW1J-R19-AC0024L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | ECW |
| Overall Width | 28.49mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 28.49mm |
| Shaft Type | Solid |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 10V |
| Overall Depth | 27.51mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Digital |
Key Features
- Operates at a maximum supply voltage of 10V.
- Provides digital quadrature output for precise motion control.
- High durability with a long operating life and bushing mount.
- Suitable for industrial applications with an IP40 rating and temperature range from -40°C to 85°C.
- Maximum rotational speed of 120 rpm ensures reliable performance.
- Complies with RoHS standards, ensuring environmental safety.
- Designed for panel mounting to facilitate easy installation.
Product Description
Bourns ECW1J-R19-AC0024L is a robust incremental digital contacting encoder designed for precise motion control in industrial and automation applications. This panel mount encoder operates on a maximum supply voltage of 10V and provides a digital quadrature output signal with 24 pulses per revolution (ppr), allowing for accurate position feedback.
The encoder features a solid shaft with a diameter of 6.35 mm, suitable for various machinery and control systems. Its compact size, measuring 28.49 mm in height and width and 27.51 mm in depth, enables easy integration into panels with limited space.
The ECW series is known for its long operating life and bushing mount, enhancing durability and maintenance ease. It is rated IP40, providing protection against solid objects larger than 1 mm. Its operating temperature range from -40°C to +85°C makes it suitable for harsh industrial environments.
The maximum permissible speed is 120 rpm, ensuring reliable signal generation for varying motion speeds. The encoder also complies with RoHS environmental standards, supporting eco-friendly industrial practice.
Operates at a maximum supply voltage of 10V. Digital incremental quadrature output provides precise motion feedback. Robust solid shaft design with 6.35 mm diameter. Compact panel mount form factor. Long operating life with bushing mount construction.
IP40 protection rating for dust ingress prevention. Wide temperature range suitable for industrial use. Maximum rotation speed of 120 rpm. RoHS compliant for environmental safety.
This encoder is ideal for use in motion control systems, automation machinery, robotics, and instrumentation requiring precise rotational position sensing. Explore more Bourns encoders and sensors in the Sensors category on EnvMart for your industrial and automation needs.
Explore more products in our Incremental Encoder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this encoder is 10V.
It provides a digital quadrature output signal.
This model has 24 pulses per revolution (ppr).
The operating temperature range is from -40°C to +85°C.
The maximum permissible rotational speed is 120 rpm.
It features a solid shaft with a diameter of 6.35 mm.
The encoder has an IP40 rating, providing protection against solid objects larger than 1 mm.
This model is designed for panel mounting.
The encoder measures 28.49 mm in height and width, and 27.51 mm in depth.
It complies with RoHS standards, ensuring environmental safety.
It is suitable for industrial applications, particularly in motion control systems and automation machinery.
The country of origin for this encoder is India.
