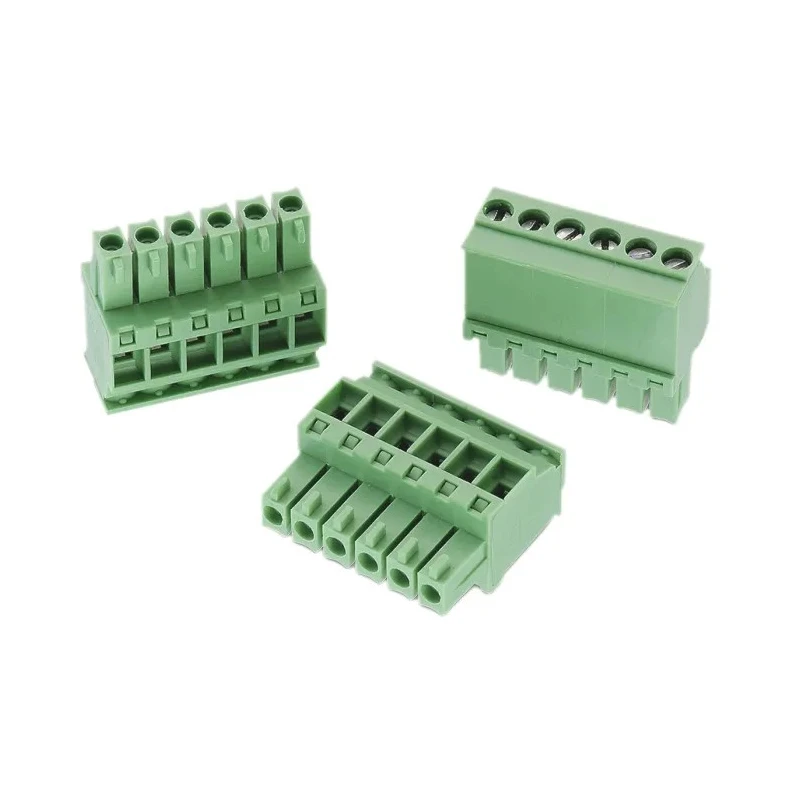

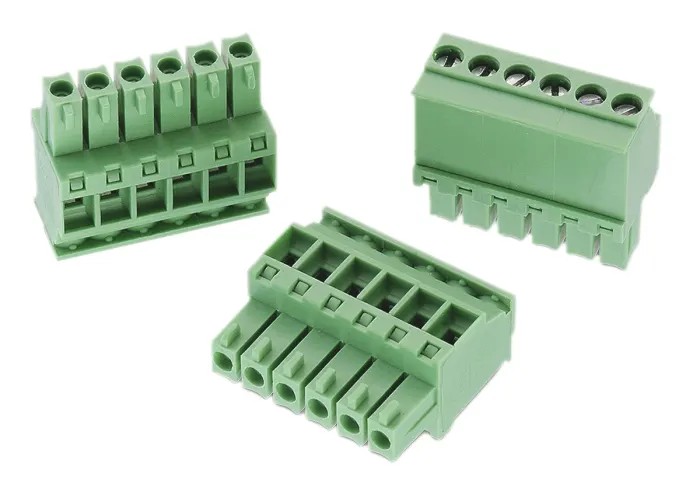

Wurth Elektronik 3631 Series 6-Contact 3.5mm Pitch Pluggable Terminal Block, 1 Row 691363110006
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V ac |
| Brand | Wurth Elektronik |
| Colour | Green |
| Orientation | Straight |
| Current | 10A |
| Length | 21mm |
| Depth | 19.1mm |
| Width | 10.4mm |
| Housing Material | Polyamide |
| Series | 3631 |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 1.31mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Cable Entry |
Key Features
- Features 6 contacts with 3.5 mm pitch for compact and efficient wiring.
- Supports a current rating of 10A at 300V AC for robust electrical performance.
- Single-row, straight orientation design simplifies cable entry and connection.
- Constructed with durable green polyamide housing and tin-plated phosphor bronze contacts.
- Accepts wire sizes from 28 AWG to 16 AWG (0.08 to 1.31 mm²) ensuring versatile compatibility.
- Designed with retention latch and M2 screw terminals for secure wire fastening.
- Ideal for industrial automation, power supplies, and electronic assembly applications.
Product Description
Wurth Elektronik model 691363110006 is a 3631 Series pluggable terminal block designed for efficient electronic connections. This single-row terminal block features 6 contacts spaced with a 3.5 mm pitch, optimized for space-saving installations and reliable connectivity.
Constructed with a green polyamide housing compliant with UL94-V0 standards for flame retardance, the connector offers a robust and durable solution for industrial, manufacturing, and electronic applications. The contacts are made of tin-plated phosphor bronze to ensure strong electrical conductivity and corrosion resistance.
This terminal block supports wire sizes ranging from 28 AWG to 16 AWG (0.08 mm² to 1.31 mm²) and accommodates currents up to 10 amperes at 300 volts AC. The straight orientation with cable entry wire connection method and retention latch adds to installation simplicity and secure connection integrity. Its mechanical dimensions are 21 mm length, 10.4 mm width, and 19.1 mm depth to fit standard designs.
The M2 slot type screw terminals provide convenient and reliable wire fastening suitable for diverse industrial uses including power distribution, automation control panels, and electronic circuit integration.
Features 6 contacts with a 3.5 mm pitch and 1 row configuration. 10A current rating and 300V AC voltage rating for industrial usage. Green polyamide housing with tin-plated phosphor bronze contacts. Wire size range from 28 AWG to 16 AWG offering versatile compatibility.
Straight connector orientation with cable entry wire connection method. Retention latch and M2 screw terminals for secure wire connections. Dimensions: Length 21 mm, Width 10.4 mm, Depth 19.1 mm.
Manufactured in China, this Wurth Elektronik component conforms to industry standards for quality and durability but does not carry additional certifications. It is widely used in electronics manufacturing, industrial automation, and power supply assemblies where reliable terminal connections are required.
Explore similar Pluggable Terminal Blocks and connectors across EnvMart’s Electronics Components category to find compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 10A at 300V AC, suitable for robust electrical performance in various applications.
The contacts are spaced with a pitch of 3.5 mm, allowing for compact and efficient wiring.
The terminal block has a length of 21 mm, a width of 10.4 mm, and a depth of 19.1 mm.
The housing is constructed from green polyamide, compliant with UL94-V0 standards for flame retardance.
Wires are connected using a cable entry method, secured with M2 screw terminals for reliable fastening.
It is ideal for industrial automation, power supplies, and electronic assembly applications.
This model features a straight orientation design, simplifying cable entry and connection.
It features 6 contacts, allowing for multiple connections in a single unit.
It is manufactured in China, conforming to industry standards for quality and durability.
This model does not carry additional certifications beyond its compliance with industry standards.
