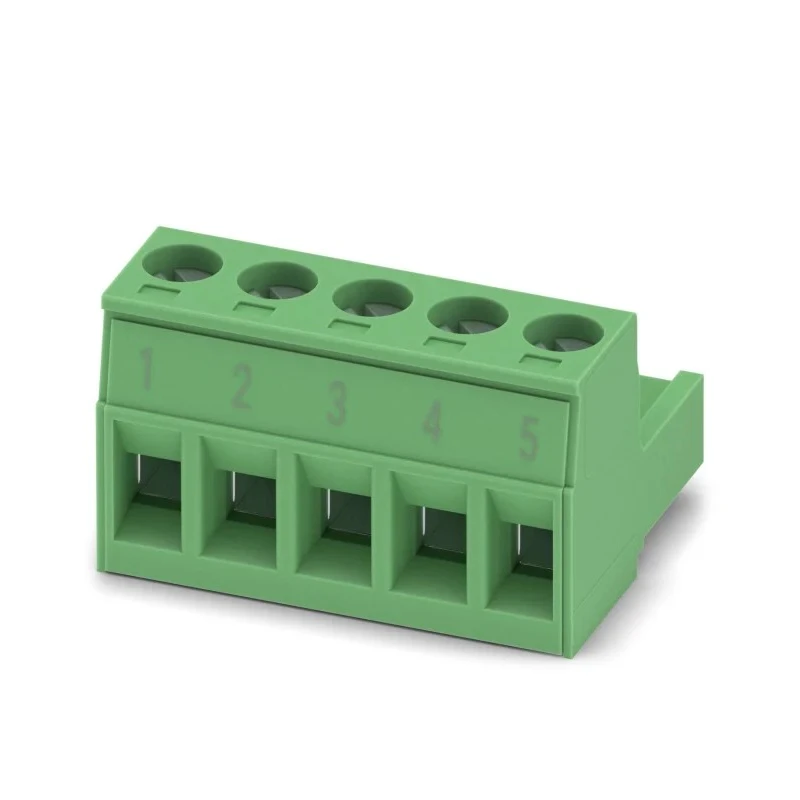

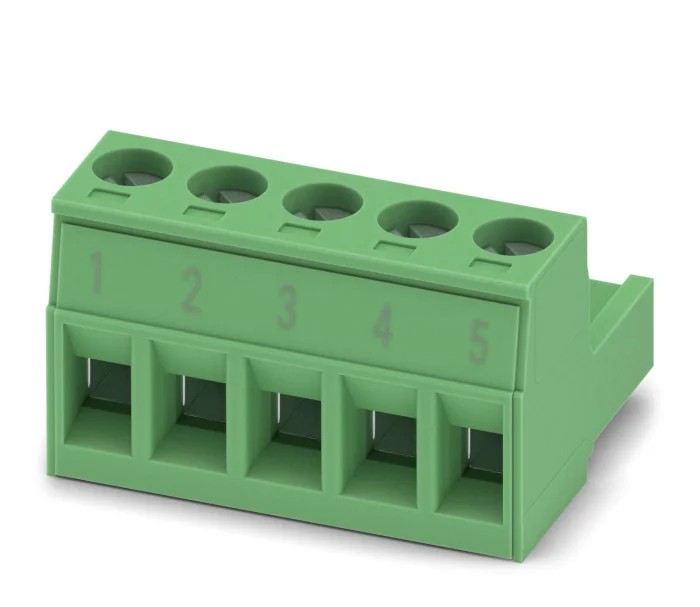

Phoenix Contact MSTB 2.5/5-ST BD 1-5 Series Pluggable Terminal Block, 5-Contact, 5 mm Pitch, 1 Row 1826681
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 18.2mm |
| Model | 1826681 |
| Depth | 15mm |
| Width | 20mm |
| Housing Material | Polyamide |
| Series | MSTB 2.5/5-ST BD:1-5 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 5 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw Connection with Tension Sleeve |
| SeriesMSTB 2.5/5-ST BD | 1-5 |
| Phoenix Contact MSTB 2.5/5-ST BD | 1-5 Series Pluggable Terminal Block, 5-Contact, 5 mm Pitch, 1 Row |
Key Features
- Features a straight orientation with screw connection and tension sleeve for reliable wire fixing.
- Constructed from durable green polyamide housing for structural stability and chemical resistance.
- Supports wire sizes from 0.2 mm² to 2.5 mm², compatible with AWG 24 to AWG 12 wires.
- Rated for 12 A current and 250 V voltage, suitable for various electronic applications.
- Designed with maximum contact force and integrated double steel spring to ensure low temperature rise and stable contact.
- Compact dimensions with 1 row, 18.2 mm length, 20 mm width, and 15 mm depth enable easy PCB mounting.
- Ideal for electronic components, power connectors, and industrial automation systems.
- Manufactured in Germany ensuring high quality and compliance.
Product Description
Phoenix Contact 1826681 MSTB 2.5/5-ST BD 1-5 Series Pluggable Terminal Block offers a high-quality, reliable connection solution designed with a 5-contact configuration and a 5 mm pitch spacing, featuring one row for straightforward installation on PCBs. It is rated for 12 A current with a voltage capacity of 250 V, making it well-suited for industrial, laboratory, and electronic assembly applications where compact and secure electrical connections are essential.
Constructed using a robust polyamide housing, this connector ensures durability and chemical resistance, while the copper alloy contacts coupled with an integrated double steel spring provide excellent contact stability and minimize temperature fluctuations under load.
The design includes a straight orientation and screw connection with a tension sleeve, simplifying wire termination and reducing installation effort. Wire sizes ranging from 0.2 mm² (24 AWG) up to 2.5 mm² (12 AWG) are supported, accommodating a wide variety of cable options. The connector dimensions of 18.2 mm length, 20 mm width, and 15 mm depth afford easy integration into standard PCB footprints.
This pluggable terminal block from the MSTB 2.5/5-ST BD series is manufactured in Germany, ensuring adherence to rigorous quality standards commonly demanded in manufacturing, HVAC, water treatment, and automotive electronics industries.
Features a straight wire orientation with screw connection and tension sleeve for secure wiring. Durable polyamide green housing provides excellent mechanical and chemical resistance. Supports a wire cross-section range from 0.2 mm² to 2.5 mm² (AWG 24 to AWG 12).
Rated for 12 A current and 250 V voltage, suitable for a variety of electrical systems. Integrated double steel spring ensures reliable contact and low temperature rise. Compact size with 1 row and 5 contacts ensures easy PCB mounting and flexible design.
Manufactured in Germany, assuring premium quality and performance.
This terminal block is ideal for use in electronic components and connectors required in industrial machines, automation systems, and power distribution modules. It combines robust materials and proven connection technology, making it suitable for demanding environments.
Explore a wide range of Pluggable Terminal Blocks and related connectors at EnvMart for applications in electronics, electrical installations, and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 12 A and a voltage of 250 V, making it suitable for various electronic applications.
This terminal block supports wire sizes ranging from 0.2 mm² (24 AWG) to 2.5 mm² (12 AWG).
It features a durable green polyamide housing, providing structural stability and chemical resistance.
The terminal block has a 5 mm pitch with a configuration of 5 contacts in a single row.
The wire connection is made using a screw connection method with a tension sleeve for secure fixing.
The dimensions are 18.2 mm in length, 20 mm in width, and 15 mm in depth, allowing for easy PCB mounting.
It is manufactured in Germany, ensuring adherence to high quality standards.
The design includes an integrated double steel spring that ensures low temperature rise and stable contact.
This model features a single row design, which simplifies installation on PCBs.
The connector gender is female, suitable for various connection needs in electronic assemblies.
It features a straight orientation, which aids in straightforward installation and wiring.
