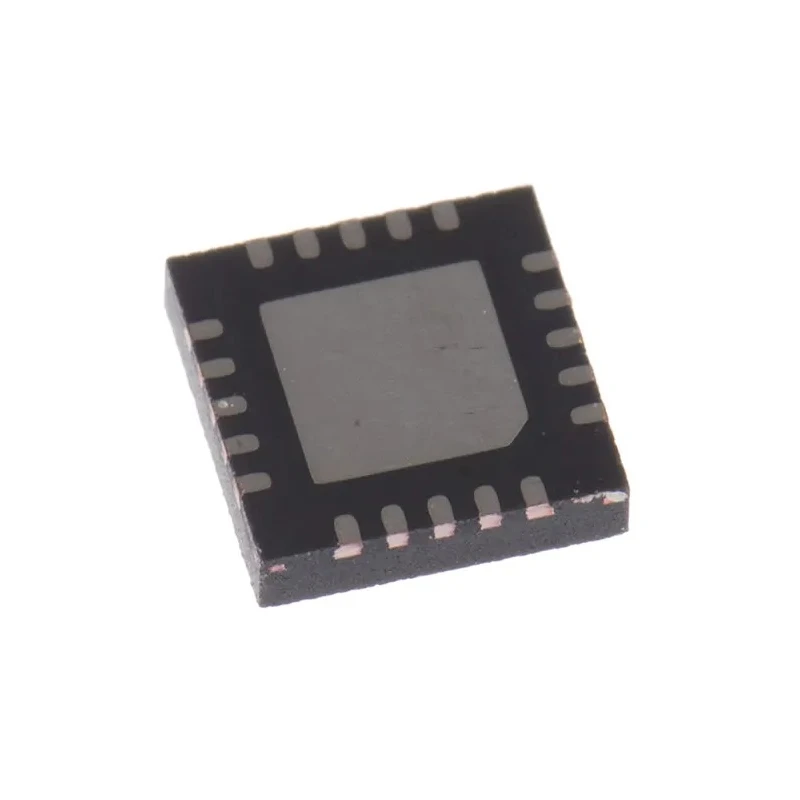

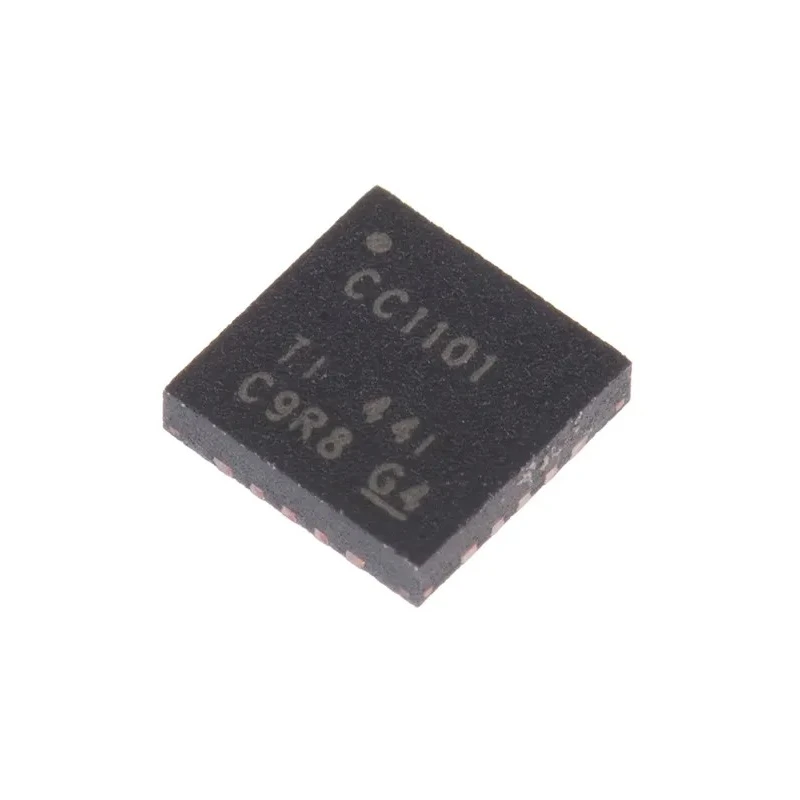

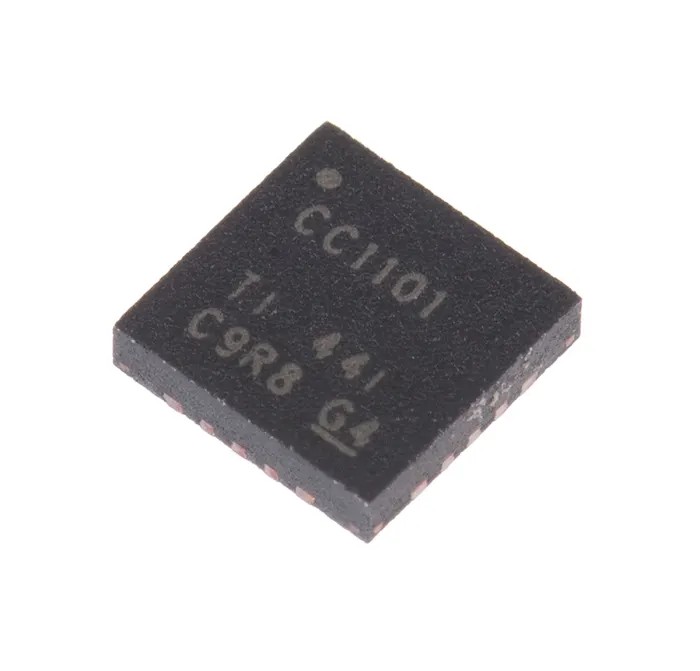

Texas Instruments RF Transceiver IC Low IF/ISM, 600kbps, SPI Interface, 20-Pin QFN CC1101RGP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.95mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 4.15mm |
| Model | CC1101RGP |
| Technology | Low IF/ISM Transceiver |
| Width | 4.15mm |
| Mount Type | Surface |
| Series | CC1101 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Receiver Sensitivity | -112dBm @ 1.2kbps with 1% PER |
| Interface Type | SPI |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Host communication | USART |
| Modulation Technique | FSK, ASK, MSK, GFSK, OOK |
| Modulation | OOK, ASK, FSK, QFSK, GFSK or MSK |
| OTA Data Rate | 600bps to 600kbps |
| Operating Band 1 Frequency | 464MHz |
| Operating Band 2 Frequency | 387MHz |
| Number of Operating Bands | 3 |
| Operating Band 3 Frequency | 928MHz |
| RF Frequency Ranges | 300 to 348MHz, 387 to 464MHz and 779 to 928MHz |
Key Features
- Operates in frequency bands 300 to 348MHz, 387 to 464MHz, and 779 to 928MHz.
- Supports modulation schemes including FSK, ASK, MSK, GFSK, OOK, and QFSK.
- Data rate range from 600bps to 600kbps with over 1% packet error rate sensitivity.
- Contains a 20-pin QFN package for surface mounting with SPI interface.
- Power supply ranges from 1.8V to 3.6V DC and operates from -40°C to 85°C ambient temperature.
- Features automatic clear channel assessment (CCA) and AES-128 security coprocessor for secure communication.
- Includes 64-byte separate Tx and Rx FIFOs for efficient data buffering.
- Supports frequency hopping spread spectrum (FHSS) and multi-channel operation.
Product Description
Texas Instruments CC1101RGP is a highly integrated low-power sub-1GHz RF transceiver IC designed for ISM and SRD frequency bands.
This 20-pin QFN package device supports a data rate up to 600kbps and uses multiple modulation techniques including FSK, ASK, MSK, GFSK, OOK, and QFSK, enabling flexible wireless communication capabilities.
The transceiver operates within frequency bands 300 to 348MHz, 387 to 464MHz, and 779 to 928MHz, allowing broad global compliance and applications.
Powered by a supply voltage range from 1.8V to 3.6V DC, it sustains operation under industrial temperature ranges from -40°C to 85°C. The device interfaces with hosts through an SPI communication protocol, facilitating integration with various microcontrollers.
Additional features include support for frequency hopping spread spectrum (FHSS) and multi-channel operation, a separate 64-byte Tx and Rx FIFO buffer for enhanced data flow, and automatic clear channel assessment (CCA) suitable for listen-before-talk (LBT) systems. Security is enhanced with an embedded AES-128 security coprocessor. The chip is compliant with Wireless M-Bus (wMBus) standard EN 13757-4:2005.
Typical use cases cover wireless alarm systems, industrial monitoring and control, wireless sensor networks, automatic meter reading, and home and building automation systems, making it an ideal RF transceiver for modern wireless IoT applications.
Operates in sub-1GHz ISM/SRD frequency bands for global deployment. Supports multiple modulation techniques for versatile wireless protocols. Integrated AES-128 cryptography coprocessor for secure data transmission. Contains 64-byte Tx and Rx FIFOs to optimize data flow and reduce transmission delays.
SPI interface ensures easy connection to microcontroller systems. Wide operating temperature range suitable for industrial and commercial applications. Includes frequency hopping and multi-channel support for reliable wireless connectivity.
Designed for low-power consumption to extend device battery life. Conforms to Wireless M-Bus (wMBus) standards enabling smart metering solutions. Explore the comprehensive Texas Instruments CC1101RGP RF Transceiver IC and other semiconductor solutions in the EnvMart catalog for efficient wireless communication components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates in frequency bands of 300 to 348MHz, 387 to 464MHz, and 779 to 928MHz.
It supports multiple modulation schemes including FSK, ASK, MSK, GFSK, OOK, and QFSK.
The data rate ranges from 600bps to 600kbps with over 1% packet error rate sensitivity.
It operates with a power supply range from 1.8V to 3.6V DC.
This unit operates within an ambient temperature range of -40°C to 85°C.
It comes in a 20-pin QFN package designed for surface mounting.
Yes, it features an embedded AES-128 security coprocessor for secure communication.
It interfaces with hosts through an SPI communication protocol.
The receiver sensitivity is -112dBm at 1.2kbps with a 1% packet error rate.
It is suitable for wireless alarm systems, industrial monitoring, wireless sensor networks, and home automation systems.
It includes separate 64-byte Tx and Rx FIFOs to optimize data flow and reduce transmission delays.
It supports frequency hopping spread spectrum (FHSS) and multi-channel operation for reliable connectivity.
