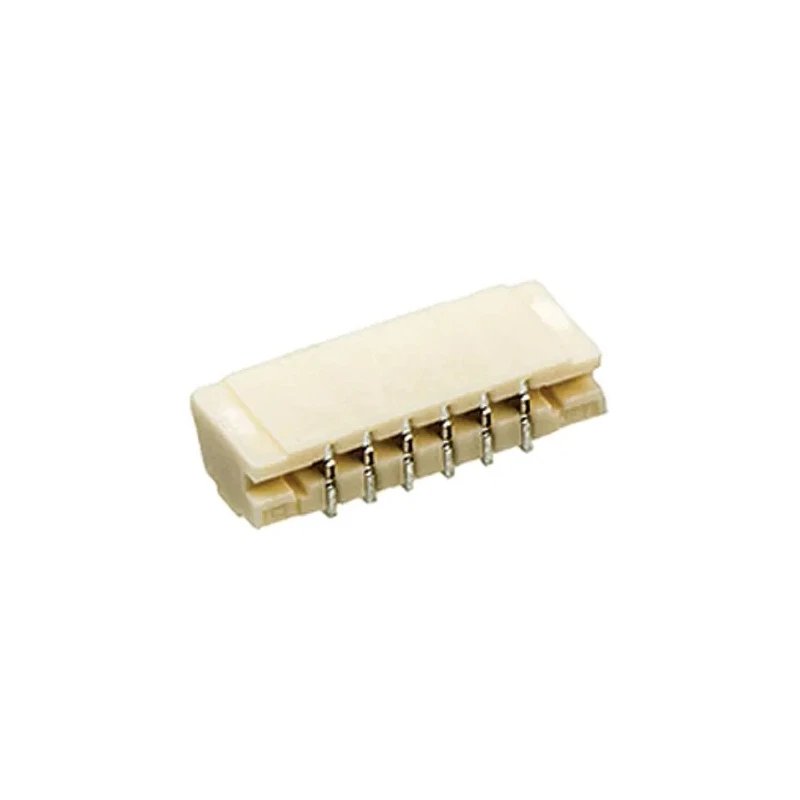

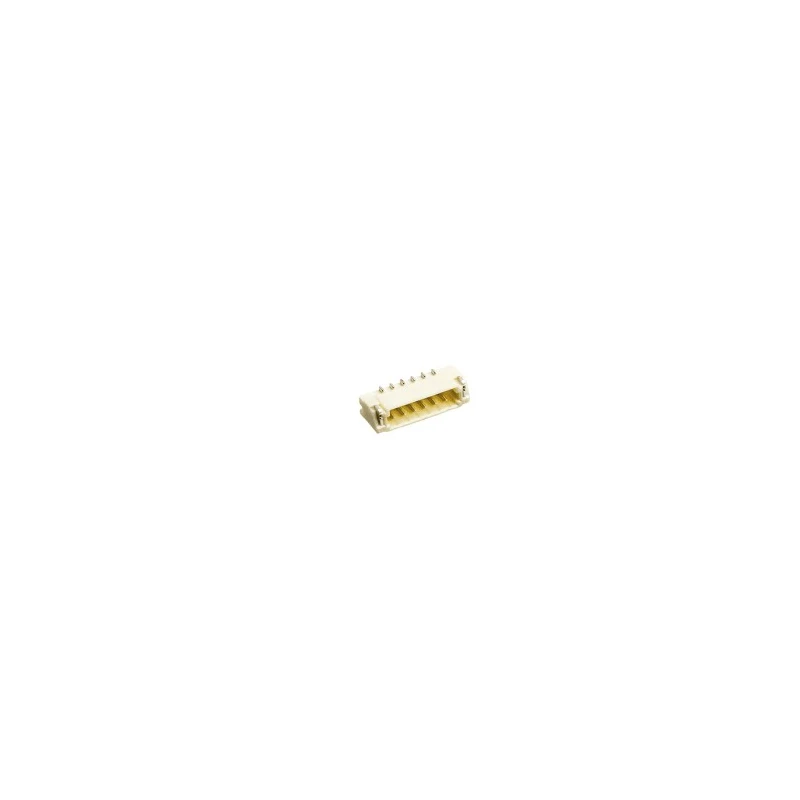

JST XSR Series Straight Surface PCB Header Connectors 6 Contacts 0.6 mm Pitch 1 Row Shrouded SM06B-XSRS-ETB(LF)(SN)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 30V |
| Brand | JST |
| Orientation | Straight |
| Current | 200mA |
| Model | SM06B-XSRS-ETB(LF)(SN) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | XSR |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.6mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for SMT PCB applications with a 0.6 mm pitch providing compact connection.
- Features a shrouded, straight orientation for secure and reliable wire-to-board connections.
- Constructed with durable polyamide housing and copper alloy contact material plated with tin.
- Can operate within temperature ranges from -25°C to 85°C, ensuring broad usability.
- Supports operating voltage up to 30V with a current rating of 200mA.
- Includes a locking mechanism for secure mating with XSR socket housings, indicated by an audible click.
- Suitable for industrial electronic components, power, and connector applications.
Product Description
JST SM06B-XSRS-ETB(LF)(SN) XSR Series Straight Surface PCB Header Connector is a 6-contact, 0.6 mm pitch, 1-row wire-to-board connector designed for surface mount technology (SMT) PCB applications. The connector features a shrouded, straight orientation to prevent accidental contact and ensure reliable connections in compact electronic assemblies.
Its polyamide housing provides excellent durability and heat resistance, while the copper alloy contacts with tin plating guarantee effective conductivity and corrosion resistance. This connector supports low voltage and current ratings of 30V and 200mA, respectively, rendering it ideal for low-power electronic circuits.
Operating temperature ranges from -25°C to 85°C, making it suitable for various industrial environments. The XSR series includes a locking mechanism that secures the connection robustly, giving an audible click to confirm proper mating with the matching XSR IDC socket housings.
This PCB header connector finds applications in electronics manufacturing, power connectors, and other wire-to-board scenarios requiring miniaturized, space-saving designs with a mounting height of 1.45 mm and a depth of 3.0 mm. Its compact pitch of 0.6 mm ensures dense wiring configurations while maintaining ease of assembly.
Compact 0.6 mm pitch for dense wiring assemblies. Shrouded design provides enhanced safety and durability. Polyamide housing offers heat resistance and mechanical strength. Copper alloy contacts with tin plating ensure reliable electrical performance.
Operating temperature range from -25°C to 85°C for industrial use. Locking mechanism ensures secure and audible connection confirmations. Ideal for SMT PCB applications in electronics and power connector assemblies.
Choose JST connectors for dependable performance in electronics manufacturing and related industrial sectors. Explore a wide range of PCB Headers and connectors in the Electronics & Electricals category at EnvMart for quality solutions.
