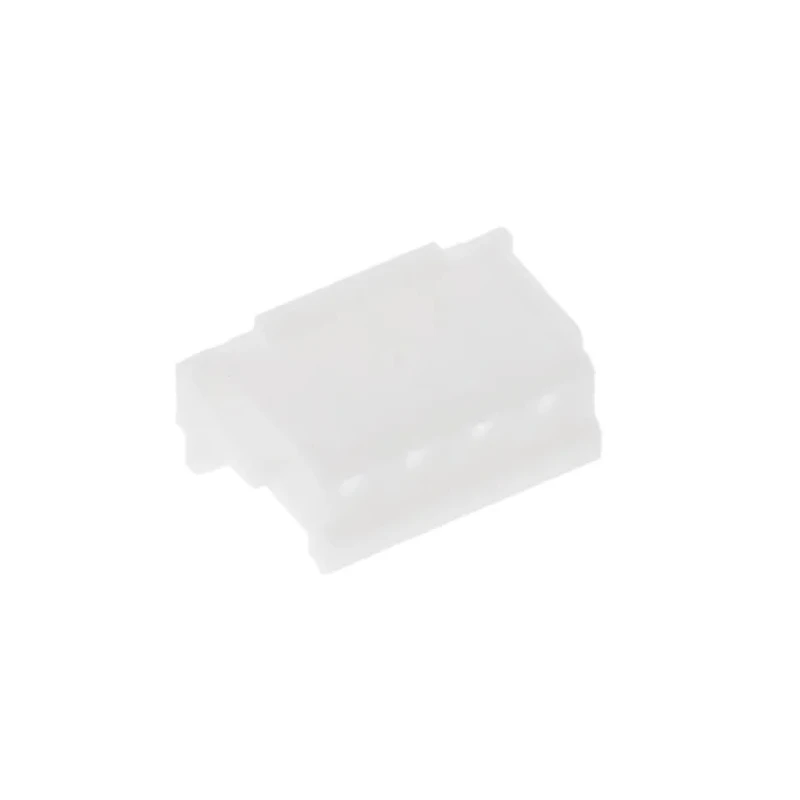

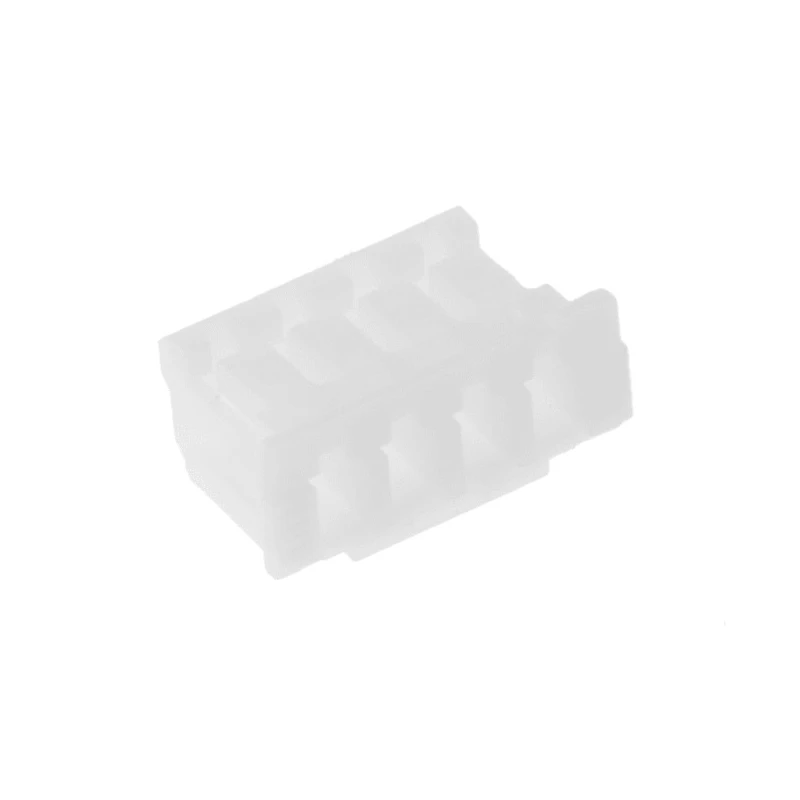

JST ZH Female Connector Housing 1.5 mm Pitch 4 Way 1 Row Straight ZHR-4

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Female Connector Housing 1.5 mm Pitch 4 Way 1 Row Straight ZHR-4



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	Korea
Brand	JST
Orientation	Straight
Length	7.5mm
Model	ZHR-4
Width	3.4mm
Mount Type	Cable
Housing Material	Polyamide
Series	ZH
Interfaces	lances
Number of Rows	1
Pitch	1.5mm
For Use With	ZH Series Dis-Connectable Crimp Style Connector
Number of Contacts	4
Connector Gender	Female
Approved	UL Recognised E60389, CSA Certified LR20812, TUV Certified R9351092

Key Features

Features a 1.5 mm pitch for precise connector spacing.
Four contacts arranged in a single row ensure efficient wiring.
Constructed from polyamide housing material providing durability.
Straight orientation suitable for cable mount applications.
Compatible with ZH series dis-connectable crimp style connectors.
Compact design with a length of 7.5 mm and width of 3.4 mm.
Provides visual confirmation of contact lock via retention lances.
Suitable for use in household appliances, industrial controls, and networking systems.

Product Description

JST ZHR-4 Female Connector Housing is a high-quality connector housing from JST's ZH series designed with a 1.5 mm pitch and 4 contacts arranged in a single row. This straight orientation connector housing is built from durable polyamide material, offering reliable wire-to-board connections for industrial, household, and commercial applications.

The compact dimensions, including a length of 7.5 mm and width of 3.4 mm, ensure space saving in PCB mounting, ideal for applications requiring tight fitting connectors. Its design features retention lances that provide visual confirmation of contact locking, enhancing assembly confidence.

The male-female connector system is engineered for use with ZH series dis-connectable crimp style connectors, emphasizing ease of installation and maintenance. It is suitable for environments such as household appliances, industrial controls, and storage or networking systems, where dependable electrical connections are required.

Manufactured in the Republic of Korea, the product meets recognized industrial quality standards. It is packaged to facilitate efficient production processes with reliable insertion capabilities.

Features a 1.5 mm pitch for precise connector spacing. Four contacts arranged in one row for compact wiring. Durable polyamide housing material provides long service life. Straight cable mount design enables easy assembly.

Retention lances provide visual contact locking confirmation. Compatible with ZH series crimp style connectors. Compact size aids in optimized PCB space usage. Ideal for use in household, industrial, and networking equipment.

Manufactured in Korea ensuring high quality standards. Explore JST connector solutions and related Connector Housing products at EnvMart for diverse electrical and electronic applications.
