RS PRO Uninsulated Ring Terminal 4.3 mm Stud Size 16 AWG 14 AWG Wire Size Grey 809-2243

Free Delivery in India | Lowest Global Shipping Charges

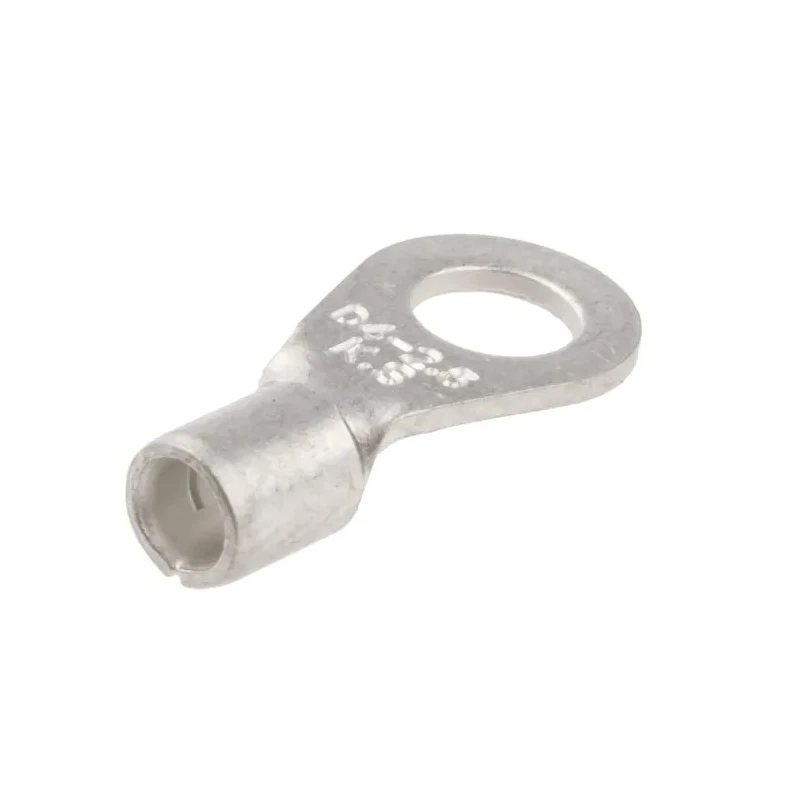

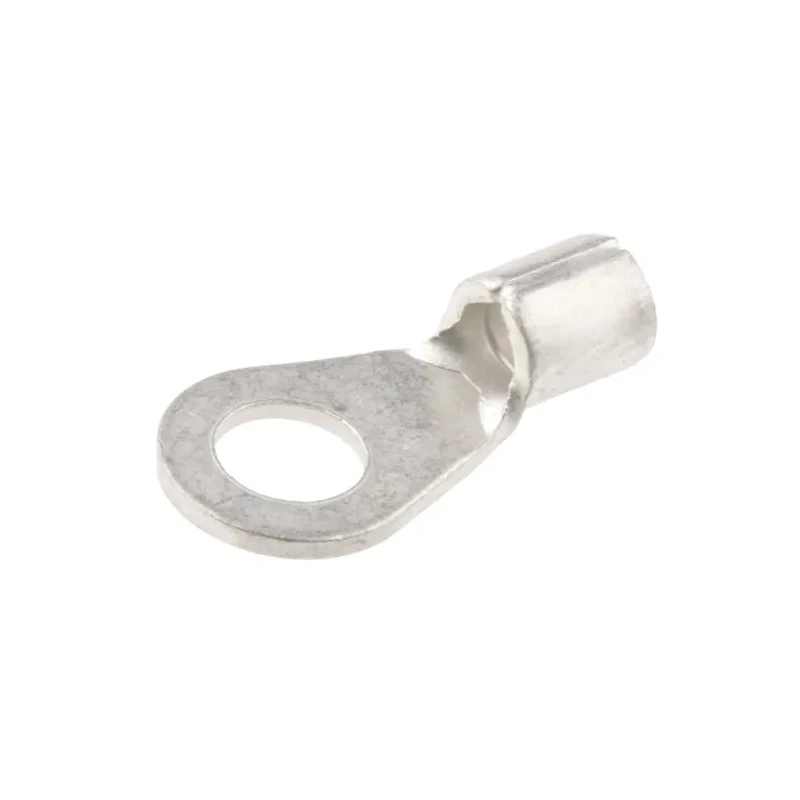

RS PRO Uninsulated Ring Terminal 4.3 mm Stud Size 16 AWG 14 AWG Wire Size Grey 809-2243

Name: RS PRO Uninsulated Ring Terminal 4.3 mm Stud Size 16 AWG 14 AWG Wire Size Grey 809-2243
Brand: RS PRO
SKU: 132743
Price: 0.06 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Grey
THICKNESS	0.8mm
Model	809-2243
Insulation	Uninsulated
Overall Length	16mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard
Contact Plating	Tin
Minimum Wire Size mm²	1.5mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	8mm
Inner Ring Diameter	4.3mm
Stud Size	4.3 mm
Standards/Approvals RoHS, ANSI/ESD S20.20	2021 Electrostatic Control Standard
RS PRO Uninsulated Ring Terminal, M4 Stud Size 16 AWG 14 AWG Wire SizeBrand	RS PRO

Key Features

Made from highly conductive copper for excellent electrical performance.
Uninsulated design allows for direct crimp connection without protective covering.
Features a 4.3 mm stud size suitable for specific electrical applications.
Compatible with wire sizes ranging from 16 AWG to 14 AWG to support versatile wiring needs.
Grey coloration helps distinguish the terminal for identification and compatibility.
Tin plating on contacts ensures durability and corrosion resistance.
Operates reliably between -40°C and 150°C, suitable for varied environments.
Overall length measures 16 mm, providing compact installation.

Product Description

RS PRO 809-2243 uninsulated ring terminal with a 4.3 mm stud size is a high-quality electrical connector designed for terminating wires ranging from 16 AWG to 14 AWG. This grey ring terminal is made from copper with a brazed seam that ensures maximum electrical conductivity and corrosion resistance to deliver reliable performance in demanding applications.

The uninsulated construction allows for direct crimping without any insulation covering, providing an efficient and secure cable connection. The tin-plated copper contacts enhance durability and resistance to corrosion over time, maintaining a stable electrical connection.

Measuring 16 mm in overall length, this ring terminal is compact yet robust, suitable for professional electrical installation and wiring tasks. It operates effectively within a temperature range of -40°C to 150°C, making it appropriate for industrial, automotive, and commercial electrical usage.

Compliance with RoHS regulations and ANSI/ESD S20.20:2021 Electrostatic Control Standard ensures this product meets strict environmental and safety standards. The grey color coding helps with quick identification during installation or maintenance.

The RS PRO 809-2243 Ring Terminal is ideal for connecting electrical cables to studs or posts securely, including battery terminals and grounding points in various equipment and machinery. Its copper construction supports excellent conductivity vital for stable electrical circuits.

Made from highly conductive copper with tin plating for corrosion resistance. Uninsulated design enables direct crimping for secure and durable connections. 4.3 mm stud size fits specific electrical connection requirements.

Suitable for wire sizes between 16 AWG and 14 AWG providing versatile application. Grey color aids identification and compatibility during wiring tasks. Robust construction with brazed seam ensuring long-lasting performance.

High temperature tolerance ranging from -40°C up to 150°C. Meets RoHS and ANSI/ESD S20.20 electrostatic control standards. Compact 16 mm overall length for easy installation in tight spaces. Perfect for electrical installations, cable connections, and industrial use.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The stud size of this uninsulated ring terminal is 4.3 mm, making it suitable for specific electrical applications.

This model is compatible with wire sizes ranging from 16 AWG to 14 AWG, supporting versatile wiring needs.

The overall length of this ring terminal is 16 mm, allowing for compact installation in tight spaces.

It is made from highly conductive copper with tin plating, which enhances durability and corrosion resistance.

This terminal operates effectively within a temperature range of -40°C to 150°C, suitable for various environments.

Yes, it complies with RoHS regulations and the ANSI/ESD S20.20:2021 Electrostatic Control Standard.

The inner ring diameter is 4.3 mm, and the outer ring diameter is 8 mm, providing a secure fit for connections.

The thickness of this terminal is 0.8 mm, contributing to its robust construction.

The uninsulated design allows for direct crimping, providing an efficient and secure cable connection without insulation covering.

The terminal is grey in color, which aids in quick identification during installation or maintenance tasks.

The contact material is copper, which supports excellent electrical conductivity vital for stable electrical circuits.

This ring terminal is ideal for connecting electrical cables to studs or posts, including battery terminals and grounding points in various equipment.
