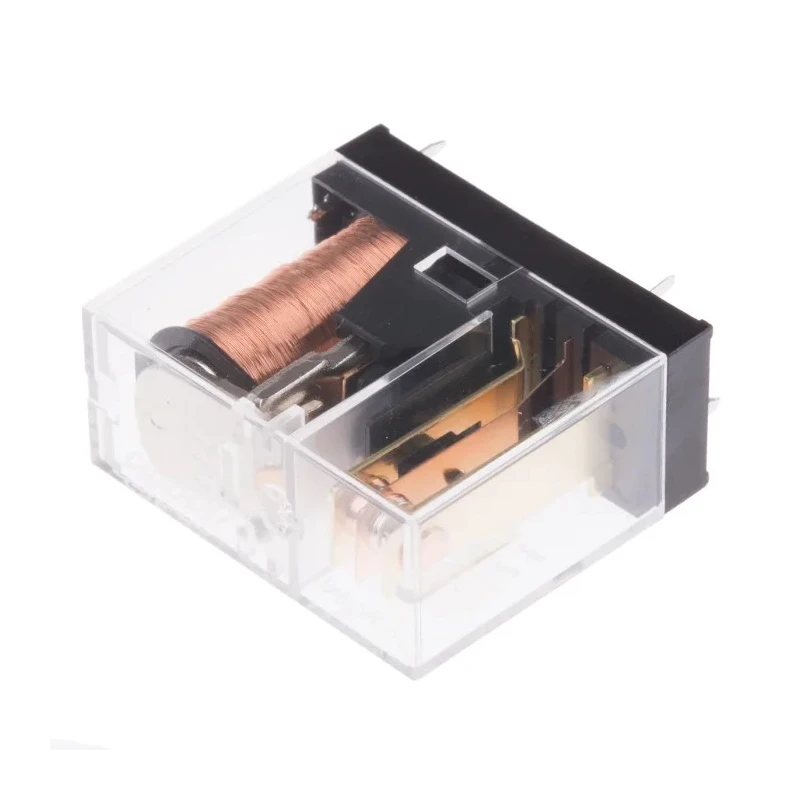

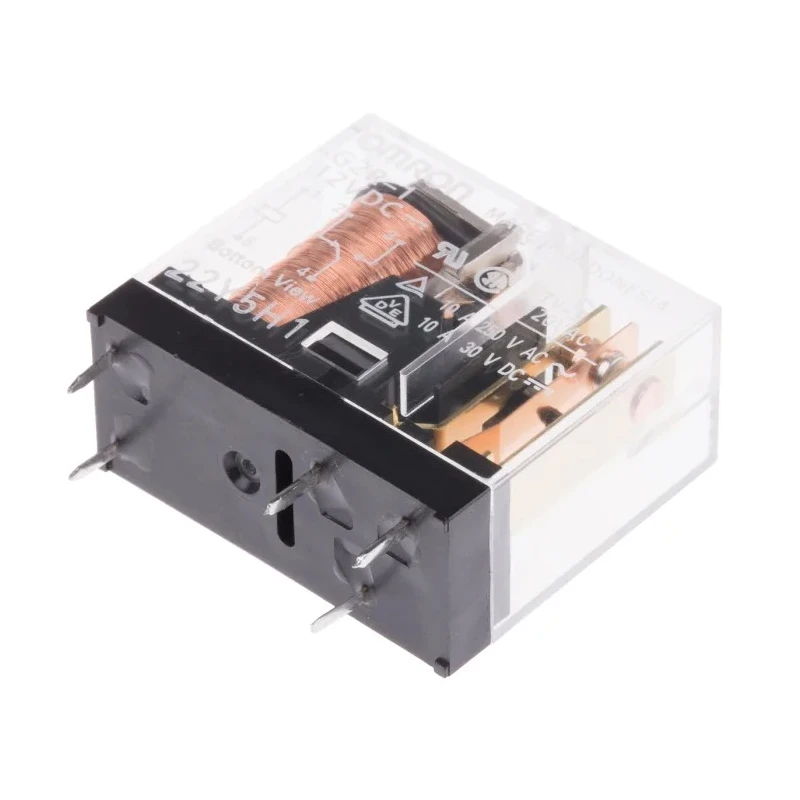

Omron PCB Power Relay 12V DC Coil Voltage 10A Switching Current SPDT G2R-1 12VDC

Omron G2R-1 12VDC is a high-performance PCB power relay featuring a 12V DC coil voltage and a 10A switching current capacity. Designed with a single-pole double-throw (SPDT) contact configuration, this relay is ideal for diverse electronic and industrial applications requiring reliable switching operations.

The relay supports high switching voltages of up to 380V AC and 125V DC, making it well-suited for demanding circuits and control panels. Its silver alloy contact material reduces contact resistance to approximately 30mΩ, enhancing conductivity and prolonging operational lifespan even in heavy-load conditions. The plug-in terminal type simplifies installation on PCBs, providing stable mechanical and electrical connections.

With compact dimensions measuring 29mm in length, 13mm in width, and 25.5mm in height, the G2R-1 12VDC relay fits efficiently in space-constrained designs. It operates reliably within a broad temperature span from -40°C to +70°C, ensuring performance stability in various climates and environments. The coil power consumption is minimized to 530mW, supporting energy-efficient system designs.

Certified to meet CSA and UL standards, this relay guarantees product safety and regulatory compliance. It is used extensively in industrial control systems, motor controls, lighting systems, and electronic devices requiring precise and dependable relay functions.

Supports coil voltage of 12V DC for efficient relay operation. Single-pole double-throw (SPDT) contact configuration enables flexible switching. Plug-in terminal type allows easy PCB mounting and installation. High switching voltage capacity with 380V AC and 125V DC ratings.

Robust switching current capacity up to 10 A ensures dependable performance. Durable silver alloy contacts enhance longevity and minimize resistance. Compact dimensions of 29mm length, 13mm width, and 25.5mm height. Wide operating temperature range from -40°C to +70°C supports harsh environments.

Compliance with CSA and UL standards for quality assurance. Low coil power consumption at 530mW improves energy efficiency.

The Omron PCB power relay G2R-1 12VDC is suitable for use in industrial, electronic control, HVAC, manufacturing, and automation applications. It reliably switches electrical loads, contributing to efficient and safe circuit operations. This relay is compatible with PCB mounting setups requiring robust performance in compact footprints.
