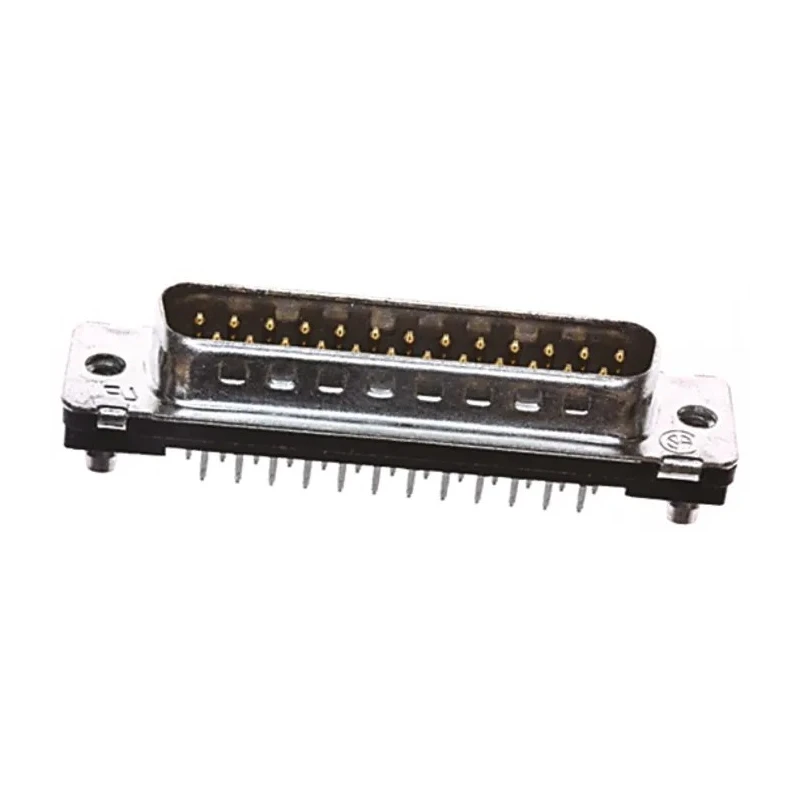

TE Connectivity AMPLIMITE HD-20 25 Way Straight Through Hole D-Sub Connector 2.768 mm Pitch 6A 105°C 2-5747704-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HD-20 25 Way Straight Through Hole D-Sub Connector 2.768 mm Pitch 6A 105°C 2-5747704-0

Name: TE Connectivity AMPLIMITE HD-20 25 Way Straight Through Hole D-Sub Connector 2.768 mm Pitch 6A 105°C 2-5747704-0
Brand: TE Connectivity
SKU: 131984
Price: 13.47 USD
Availability: InStock



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	Mexico
Brand	TE Connectivity
Orientation	Straight
Current	6A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	AMPLIMITE HD-20
Mounting Hardware	4 to 40 UNC PCB Retention Insert
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.768mm
Contact Plating	Tin over Copper
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Contact Size	3
Connector Type D	D-Sub
D-Sub Shell Size	DS-3

Key Features

The connector is designed with a thermoplastic housing for durability and performance.
It supports up to 25 male contacts, ensuring robust connectivity.
Operating temperature ranges from -55°C to 105°C for versatile application.
The connector utilizes tin plating over copper contacts to prevent corrosion.
Mounting is through-hole style with a 4 to 40 UNC PCB retention insert for secure attachment.
This product features a DS-3 shell size and is part of the AMPLIMITE HD-20 series.
Contact size is 3 with solder termination type, suitable for heavy-duty use.
Manufactured in Mexico to quality standards ensuring reliability.

Product Description

TE Connectivity 2-5747704-0 AMPLIMITE HD-20 25 Way Straight Through Hole D-Sub Connector is a high-quality electrical component designed for industrial and electronic applications requiring dependable interconnections. With a 2.768 mm pitch and 25 male contacts, it supports a maximum current of 6A, making it suitable for power transmission in demanding environments.

The connector features a durable thermoplastic housing rated at 94V-0 flame resistance and a tin-plated brass contact set to ensure long service life and reliability in various conditions. It operates reliably in extreme temperatures ranging from -55°C to 105°C, accommodating harsh industrial and commercial environments.

Its through-hole mount type along with a 4 to 40 UNC PCB retention insert guarantees stable mechanical fixation on printed circuit boards, reducing vibration and mechanical stress impacts. The DS-3 shell size provides adequate shielding and structural support, while solder termination ensures strong, conductive solder joints.

This AMPLIMITE HD-20 series connector is ideal for applications in industrial controls, instrumentation, communications equipment, and other electronic assemblies where reliable multi-pin connections are critical. The product is manufactured in Mexico, adhering to stringent production standards and quality controls.

The connector's 25 male contacts are brass material with tin over copper plating for enhanced conductivity and corrosion resistance. Contact size 3 pins provide versatility for various wiring schemes and current requirements.

The connector system is built for straight orientation, facilitating straightforward PCB routing. Shell and housing materials combine for excellent mechanical protection and electrical insulation. Designed with industrial standards compliance in mind, though no specific certifications are listed.

Ideal for electronics component assemblies in industrial, telecommunications, computing, and power distribution applications. Users benefit from the robust design and consistent electrical performance of the AMPLIMITE HD-20 series. Select this model for reliable, well-tested D-Sub Connector solutions in high-demand environments.

Explore more connectors and related components in EnvMart's comprehensive catalog for all your industrial and electronic component needs.
