TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw 5788797-1

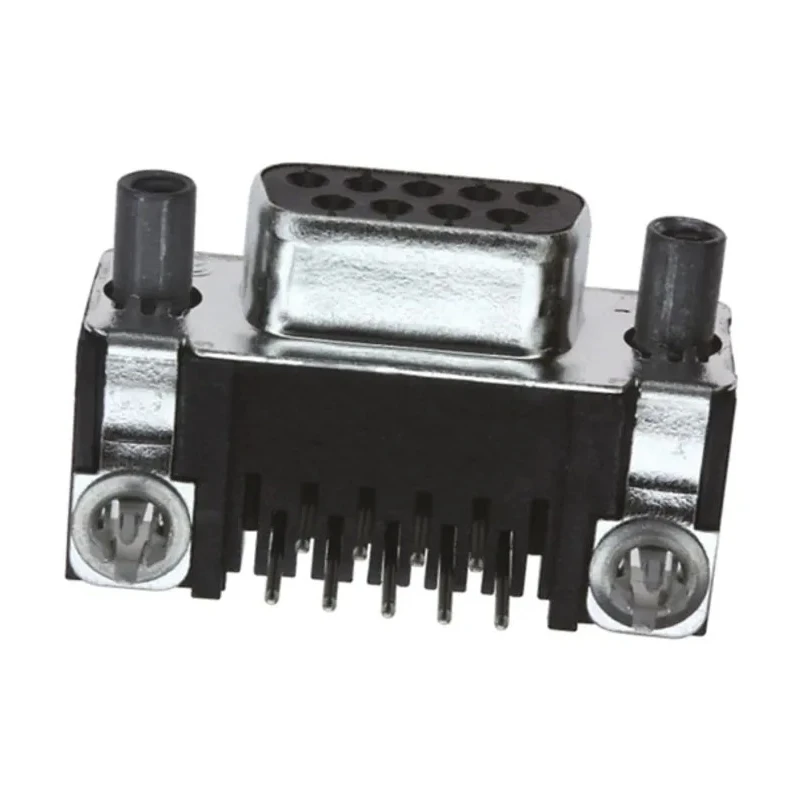

TE Connectivity 5788797-1 AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector is engineered for industrial and electronic applications requiring reliable and durable interconnect solutions.

This connector features nine female pins with a right angle orientation, designed for through-hole mounting on PCBs, facilitating compact and efficient electronic board designs. The connector is part of the AMPLIMITE HD-20 318 PCB mount series, offering an 8.08 mm footprint with right angle posts and tin plated steel front shells. Its thermoplastic housing is compliant with 94V-0 flammability rating, providing high safety standards.

Contacts are manufactured from copper alloy with tin over nickel plating, ensuring excellent conductivity and corrosion resistance. The connector includes tin plated brass eyelets and zinc plated female screw locks which secure the connector in position with 4 to 40 UNC screws providing mechanical stability.

This product supports currents up to 6A and operates reliably in temperatures ranging from -55°C to 105°C. Termination is via solder contacts, ensuring robust and consistent electrical connections. It is widely used in electronics manufacturing, industrial machinery, telecommunications, and other commercial applications.

Additional features include options for tin plated copper alloy boardlocks and compatibility with latching and locking blocks for enhanced assembly stability. The AMPLIMITE HD-20 series is recognized for its modularity and durability in harsh environmental conditions.

Features 9 female contacts with a 2.74 mm pitch size. Right angle orientation facilitates compact PCB layouts. Constructed with thermoplastic housing and tin over nickel plated copper alloy contacts. Utilizes 4 to 40 UNC screw locks for secure mounting.

Supports current ratings up to 6A with operating temperature range from -55°C to 105°C. Termination type is solder, suitable for reliable PCB assembly. Includes tin plated steel front shells and brass eyelets for enhanced durability.

Complies with AMPLIMITE HD-20 series standards ensuring compatibility and performance. Manufactured in the United States, ensuring strict quality control. This connector is a trusted choice within electronics manufacturing, industrial, and telecommunications environments due to its robustness and precise engineering.
