| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | 2SK3557-7-TB-E |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | 2SK3557 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | CP |
| Sub Type | JFET |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Drain Source Voltage Vds | 15V |
| Maximum Power Dissipation Pd | 200mW |
| Maximum Gate Source Voltage Vgs | -15V |
| Drain Source Current Ids | 16 to 32 mA |

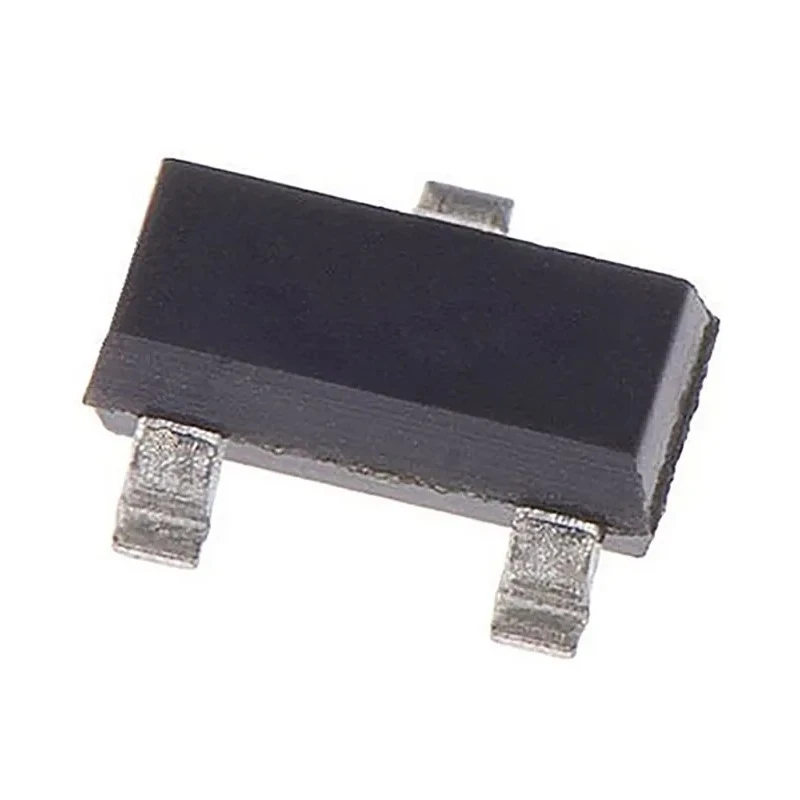

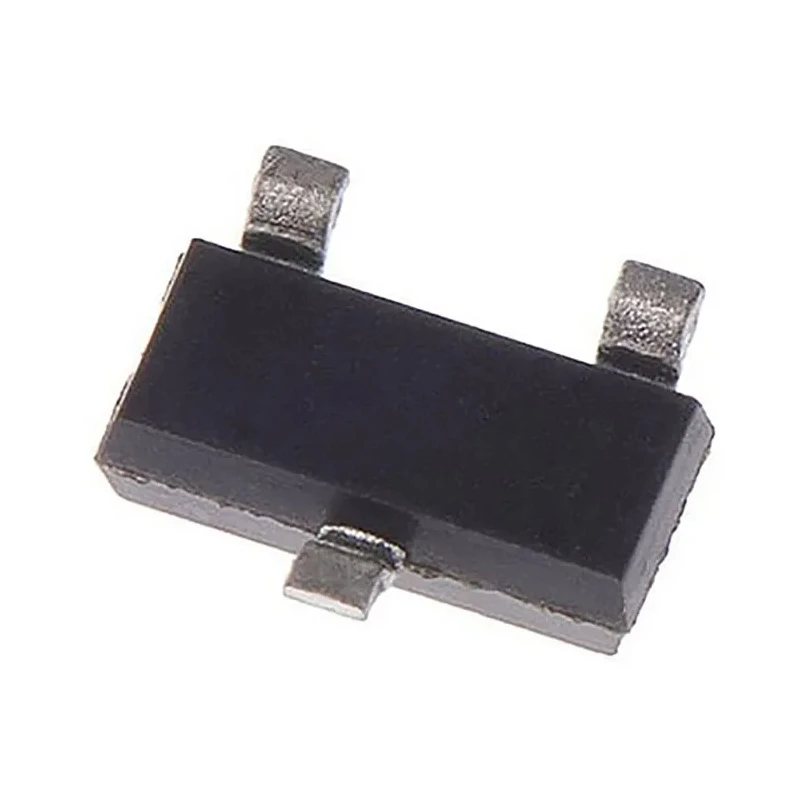

onsemi 2SK3557-7-TB-E is a high-performance single N-channel junction field-effect transistor (JFET) in a surface mount CP package with a 3-pin configuration. Offering a maximum drain-source voltage of 15 V and drain current between 16 and 32 mA, this transistor provides reliable performance for discrete semiconductor applications.
The device operates efficiently with a maximum power dissipation of 200 mW, suitable for embedded electronic components in various industrial and commercial electronic assemblies. It supports a wide operating temperature range from -55°C to 150°C, making it viable for demanding environmental conditions.
With compact physical dimensions (2.9 mm length, 1.5 mm width, and 1.1 mm height), the 2SK3557-7-TB-E is ideal for space-constrained PCB designs requiring surface mount technology (SMT). The gate-source voltage maximum rating of -15 V protects the device against gate damage during operation.
This JFET has no specific automotive standard certification and aligns with standard industry requirements for semiconductors. It is suitable for industrial electronics, embedded systems, and power control circuits.
Single N-channel JFET transistor. Surface mount CP package with 3 pins. Max drain-source voltage: 15 V. Drain current: 16 to 32 mA. Max power dissipation: 200 mW. Operating temperature range: -55°C to 150°C. Max gate-source voltage: -15 V.
Dimensions: 2.9 x 1.5 x 1.1 mm (LxWxH). No automotive standard compliance.
This transistor is used in discrete semiconductor circuits within electronic components demanding efficient switching and amplification across various industrial applications. Explore the broad semiconductor and discrete transistor range offered by EnvMart for your electronics design needs.
Explore more products in our Discrete Semiconductors category.
