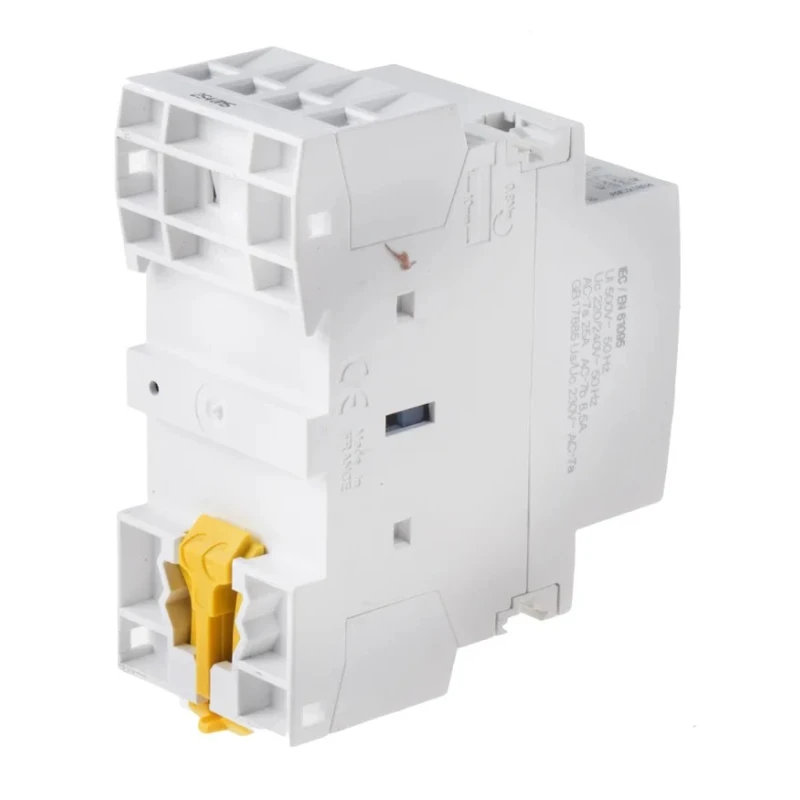

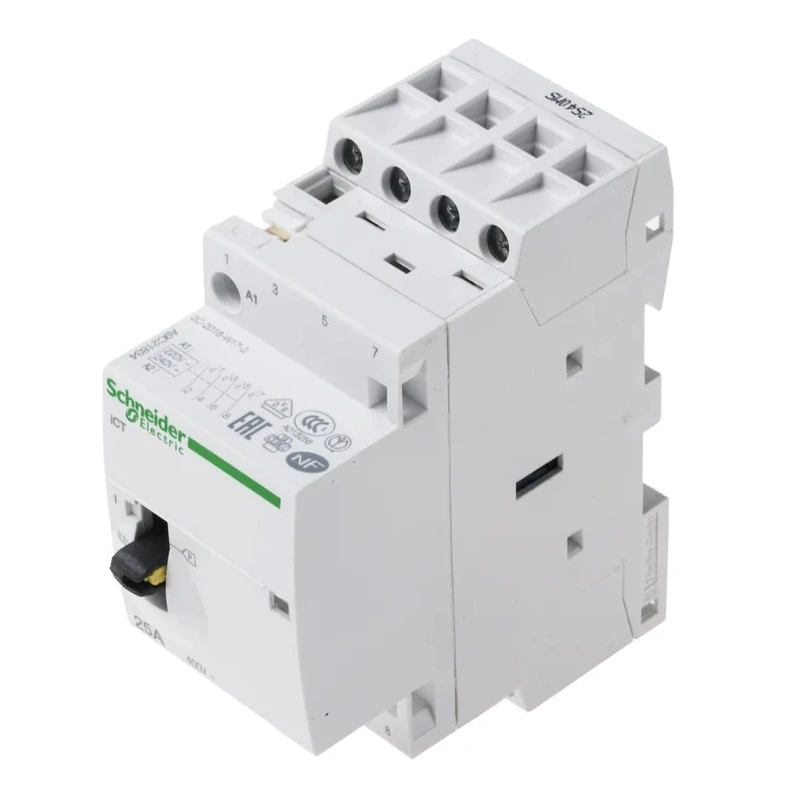

Schneider Electric Acti9 iCT Contactor 230V AC Coil 4-Pole 25A 1.6W Power Rating

Schneider Electric Acti9 A9C21834 is a high-performance iCT contactor designed for reliable power switching in motor control applications. With a 230V AC coil and 4-pole configuration, it delivers operational current up to 25A, making it ideal for both single and three-phase loads in industrial and commercial environments.

This contactor incorporates built-in auxiliary contacts, providing four normally open (4 NO) contacts to enhance switching capabilities and flexibility in control circuits. Designed for DIN rail mounting, it features IP20 finger-safe screw terminals marked with both North American and international standards for ease of installation and safety.

Operating within a temperature range of -5°C to 60°C, the device ensures durability and stable performance in varying conditions. The coil power rating is a low 1.6W at 240V, reflecting energy-efficient operation suitable for continuous use in demanding industrial settings.

Engineered for safety, the Acti9 iCT contactor complies with IEC/EN 61095 and is RoHS certified, incorporating class-2 insulation to provide continuous protection for operators and unqualified personnel. The compact dimensions (Length: 36mm, Width: 81mm, Depth: 73mm) allow for space-saving integration into electrical panels.

Its features include an impulse relay function, day-night function, and motor control suitability, enabling effective automation in industrial, manufacturing, HVAC, and building control systems. For installations with multiple contactors mounted side by side, spacers are recommended to dissipate heat effectively and maintain optimal operating temperatures due to continuous coil rating.

Designed for reliable power switching in single and three-phase loads. Equipped with a 230V AC coil and 4 NO auxiliary contacts for enhanced switching capability. Compact size with DIN rail mounting and IP20 finger-safe screw terminals.

Operates safely within a temperature range of -5°C to 60°C. Rated contact current is 25A with a contact voltage of 400V AC. Energy efficient with a low power rating of 1.6W at 240V coil voltage. Compliant with IEC/EN 61095 standards and RoHS directive.

Features class-2 insulation for operator safety and unqualified personnel protection.

Choose Schneider Electric Acti9 iCT contactors for dependable, efficient motor control and automation in industrial, manufacturing, commercial, and electrical systems. Explore more Contactors and electrical components at EnvMart.
