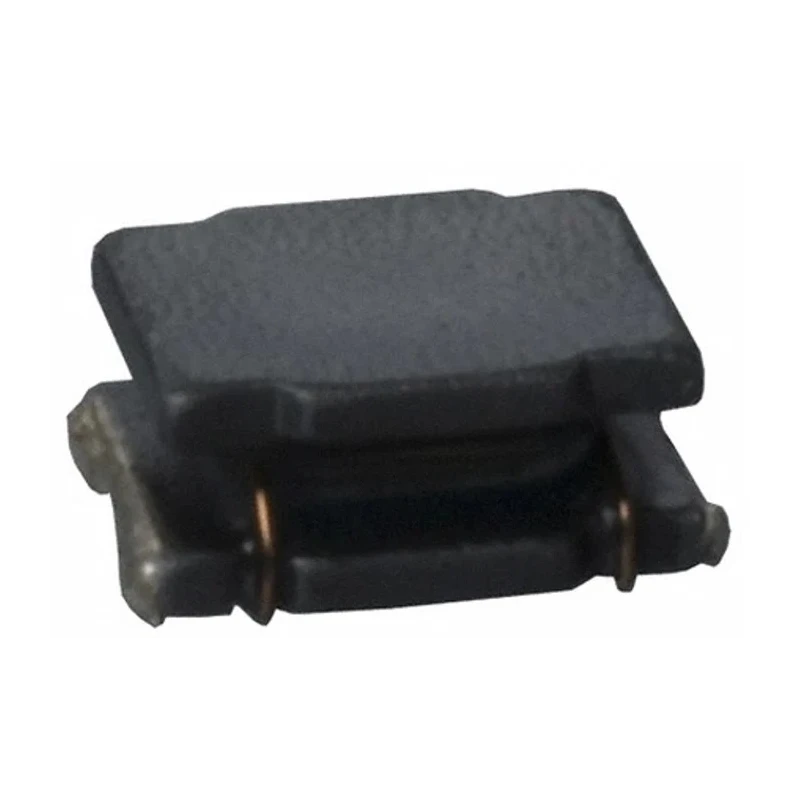

Murata 3225 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 1 A LQH32PN100MNCL
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.55mm |
| Length | 3.2mm |
| Model | LQH32PN100MNCL |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 1A |
| Pin Count | 2 |
| Maximum DC Resistance | 295mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 30MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a 3225 package size with dimensions 3.2 mm length, 2.5 mm depth, and 1.55 mm height.
- Constructed with a ferrite core for effective magnetic performance and shielding.
- Wirewound construction enhances inductance stability and current handling.
- Suitable for a maximum operating temperature of 125°C, with a minimum operating temperature of -40°C.
- Designed for surface mount solder termination style and comes in embossed tape packaging for automated assembly.
- The device complies with RoHS standards ensuring environmental compliance.
- Maximum DC resistance is 295 mΩ, supporting power supply booster circuit applications.
- Maximum self-resonant frequency is 30 MHz, suitable for high-frequency operational environments.
Product Description
Murata LQH32PN100MNCL is a high-quality shielded wirewound surface mount inductor with a ferrite core, providing an inductance of 10 μH with a tolerance of ±20%. It supports a maximum DC current of 1 A and is manufactured in a compact 3225 package, measuring 3.2 mm in length, 2.5 mm in depth, and 1.55 mm in height. This device is designed for surface mount technology with a solder termination style ensuring robust and reliable connections on PCBs.
The inductor features a wirewound construction around a ferrite core, which offers excellent magnetic properties and shielding to minimize electromagnetic interference. It is molded and RoHS compliant, demonstrating adherence to environmental and safety standards. The device operates effectively within a temperature range from -40°C up to 125°C, which makes it suitable for a variety of industrial, commercial, and consumer electronics applications.
With a maximum DC resistance value of 295 mΩ, the LQH32PN100MNCL provides stable inductance with low power losses. Its maximum self-resonant frequency of 30 MHz makes it ideal for use in high-frequency circuits, including power supply booster circuits commonly found in digital cameras, mobile devices, television sets, and gaming machines.
The inductor is shipped in embossed tape packaging, facilitating automated insertion and enhancing production efficiency. Its shielded construction enhances signal integrity in sensitive electronic applications. The compact 3225 case size enables use in space-constrained PCB designs.
Robust operating temperature range and durable resin coating improve reliability under harsh conditions.
Murata's LQH Series inductors are well-regarded for their high quality and performance in electronic component manufacturing, ideal for power management applications. This product is suitable for designers and manufacturers seeking efficient and reliable inductors for surface mount applications.
Explore more from Murata and related Surface Mount Inductors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
This inductor has dimensions of 3.2 mm in length, 2.5 mm in depth, and 1.55 mm in height.
It supports a maximum DC current of 1 A.
The maximum operating temperature is 125°C, while the minimum operating temperature is -40°C.
The maximum DC resistance is 295 mΩ.
The maximum self-resonant frequency is 30 MHz.
It features a wirewound construction around a ferrite core, providing effective magnetic performance and shielding.
It is packaged in embossed tape, which facilitates automated assembly.
This model uses a solder termination style, ensuring reliable connections on PCBs.
Yes, it complies with RoHS standards, ensuring environmental compliance.
The inductor is manufactured in Japan.
This inductor is suitable for applications in power supply booster circuits, commonly used in devices like digital cameras and mobile devices.
