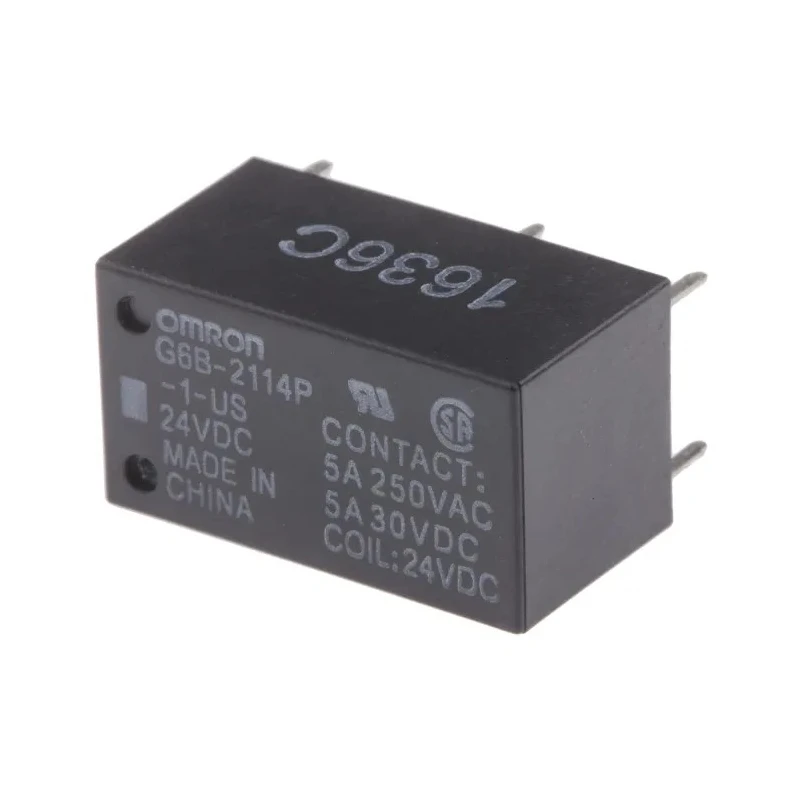

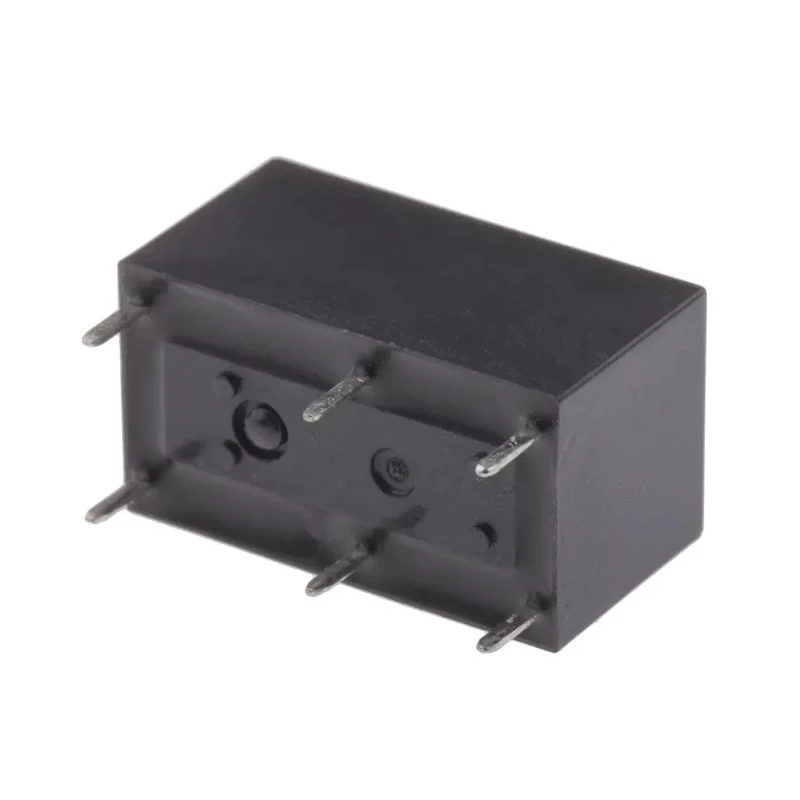

Omron PCB Power Relay 24V DC Coil 5A Switching Current G6B-2114P-1-US DC24

The Omron G6B-2114P-1-US DC24 PCB Power Relay is a high-quality component designed for efficient switching in industrial and automation applications. It features a low-power 24V DC coil with a power consumption of only 200 mW, which makes it suitable for energy-sensitive designs. The relay's subminiature size (20 x 11 x 11 mm) allows for easy and compact PCB mounting, saving space in control panels and electronic devices.

Equipped with silver alloy contacts, the relay ensures reliable electrical connection with low contact resistance of 30 mΩ, enhancing performance and longevity. It is capable of handling switching currents up to 5A and switching voltages of 125V DC and 380V AC, providing versatility for various control circuits.

Designed to operate over a temperature range from -25°C to 70°C, the relay can function reliably in diverse environmental conditions. Its 2.9 kΩ coil resistance contributes to its low power consumption, reducing overall system energy needs. The product meets stringent UL and CSA safety certifications, reflecting compliance with international quality standards.

This fully sealed power relay boasts a robust construction with an impulse withstand voltage of 6 kV, protecting against electrical surges and enhancing system durability. The unique moving loop armature design minimizes magnetic interference and contact bounce, improving switching accuracy and response time.

Omron's G6B series relays are ideal for use in automation, industrial control systems, HVAC control modules, manufacturing equipment, and other electrical applications requiring dependable power relays. Their reliable switching capability and compact form factor facilitate integration into complex electrical assemblies.

This relay is subminiature with dimensions 20 x 11 x 11 mm for convenient PCB mounting. Low coil power consumption of 200 mW enables efficient energy usage. Silver alloy contacts provide durability and low contact resistance of 30 mΩ.

Switching current capacity of 5A supports a broad range of electrical loads. Operating temperature range from -25°C to 70°C suits varied industrial environments. UL recognized and CSA certified for assured safety and quality.

Impulse withstand voltage of 6 kV ensures device robustness against electrical surges. Coil resistance is 2.9 kΩ, contributing to low power draw.

For industrial professionals seeking a dependable, low power consumption PCB Power Relay, the Omron G6B-2114P-1-US DC24 offers excellent performance for control and automation equipment. Explore the full range of Omron relays and power electronics on EnvMart to find compatible components for your projects.
