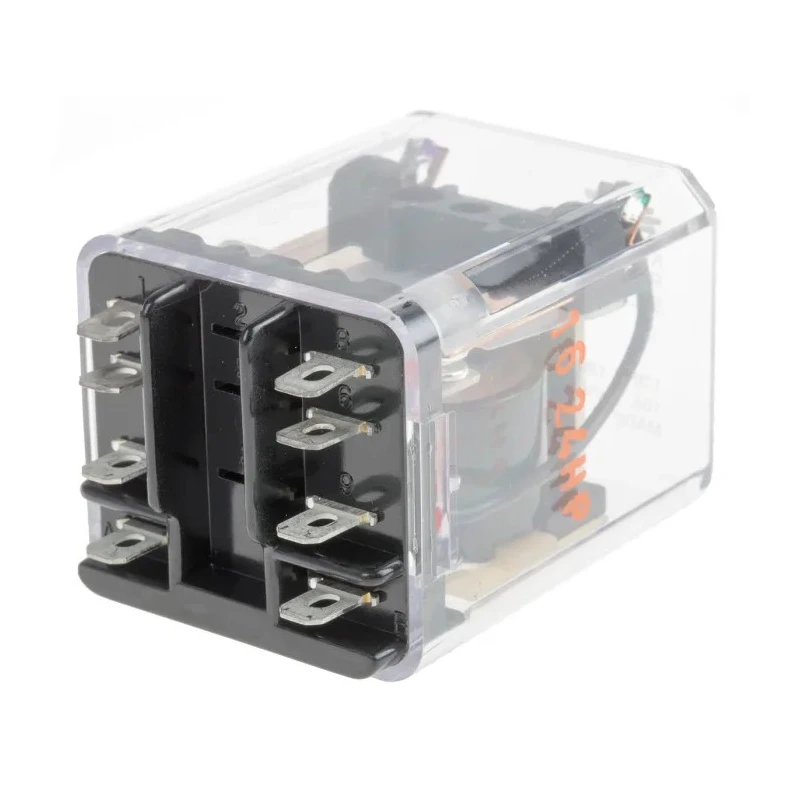

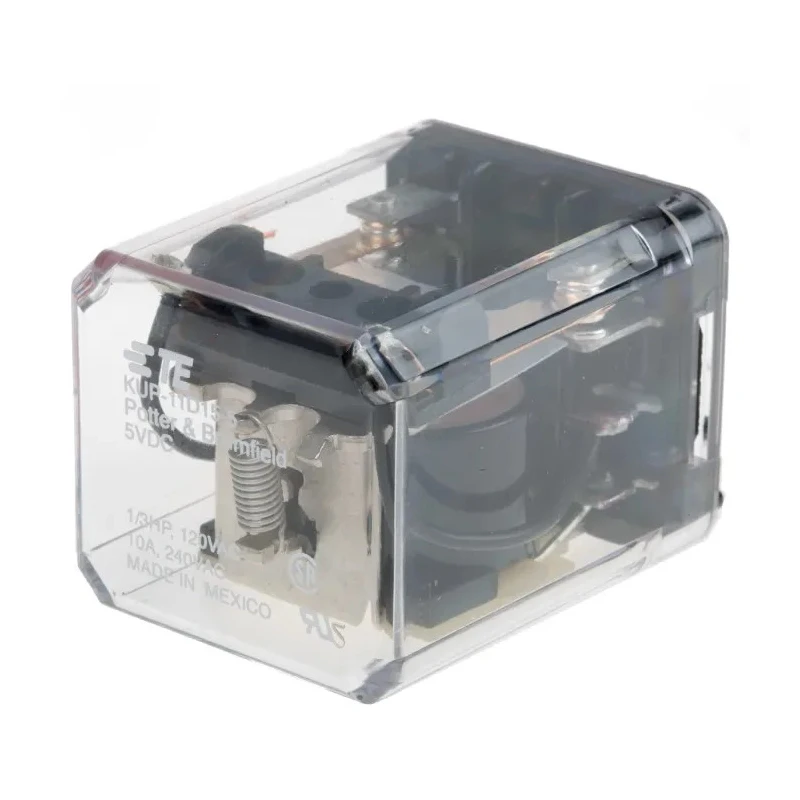

TE Connectivity Power Relay, PCB Mount, DPDT, 5V DC Coil Voltage, 10A Switching Current, Silver Alloy Contacts KUP-11D15-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 48.4mm |
| Length | 38.9mm |
| Model | KUP-11D15-5 |
| Width | 35.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | KUP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | CSA, UL, UR |
| Coil Resistance | 21Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.2W |
| Switching Power | 1.2W |
Key Features
- 5V DC coil voltage ensures efficient electromagnetic actuation.
- Double pole double throw (DPDT) contact configuration suitable for versatile switching needs.
- Quick connect terminal types for easy integration on PCB layouts.
- Silver alloy contact material provides excellent conductivity and durability.
- Compact dimensions with 48.4mm length, 35.7mm width, and 38.9mm height.
- Switching current rated at 10A for moderate power applications.
- Operating temperature range from -45°C to 70°C for varied environment reliability.
- Compliant to CSA, UL, and UR standards ensuring industrial safety and quality.
Product Description
TE Connectivity KUP-11D15-5 is a high-quality power relay designed for PCB mounting with a double pole double throw (DPDT) contact configuration and a coil voltage of 5V DC. This relay reliably switches currents up to 10A and handles switching power of 1.2W, making it suitable for various electronic and electrical control circuits in industrial, automation, and signal conditioning applications.
The relay features quick connect terminals spaced at 4.75mm (0.187 inch) for straightforward soldering or plug-in connections. The silver alloy contact material ensures low contact resistance and high conductivity, contributing to long service life. Its compact dimensions of approximately 48.4 mm by 35.7 mm by 38.9 mm allow easy PCB integration while maintaining robust functional performance.
Engineered to operate reliably within a temperature range from -45°C to +70°C, the KUP series relay meets CSA, UL, and UR approvals, validating its quality and safety for demanding industrial environments. It features class B coil insulation for electrical safety and durability.
This enclosed relay includes a bracket mounting case design for secure installation in panel applications. The coil resistance is rated at 21Ω, with coil power consumption of 1.2W, ensuring energy-efficient actuation suitable for control systems requiring low power draw.
Its applications span electrical automation, manufacturing control, HVAC systems, and signal conditioning where reliable power relay switching is critical. 5V DC coil voltage with class B insulation and 21Ω coil resistance.
DPDT contact configuration with silver alloy contacts supporting up to 10A switching current. Operating temperature from -45°C to 70°C ensures wide environmental adaptability. Mount type PCB with quick connect terminals for flexible integration.
Complies with CSA, UL, and UR standards for industrial-grade safety. Compact size and enclosed bracket mount case enhance usability and protection. Energy efficient coil power of 1.2W. Explore the TE Connectivity range in the EnvMart catalogue for reliable Power Relays suitable for diverse industrial control requirements.
