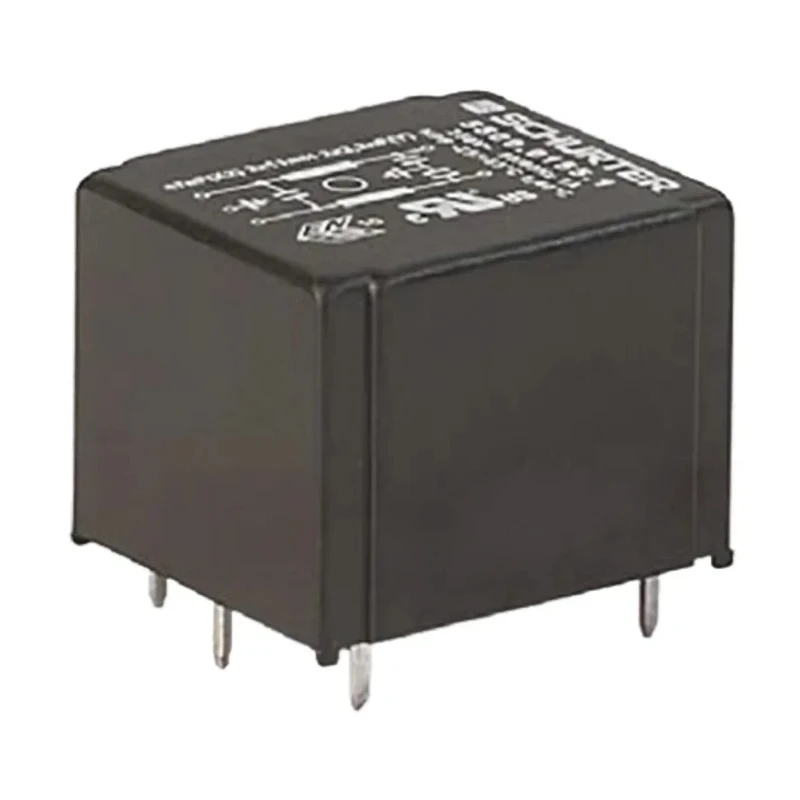

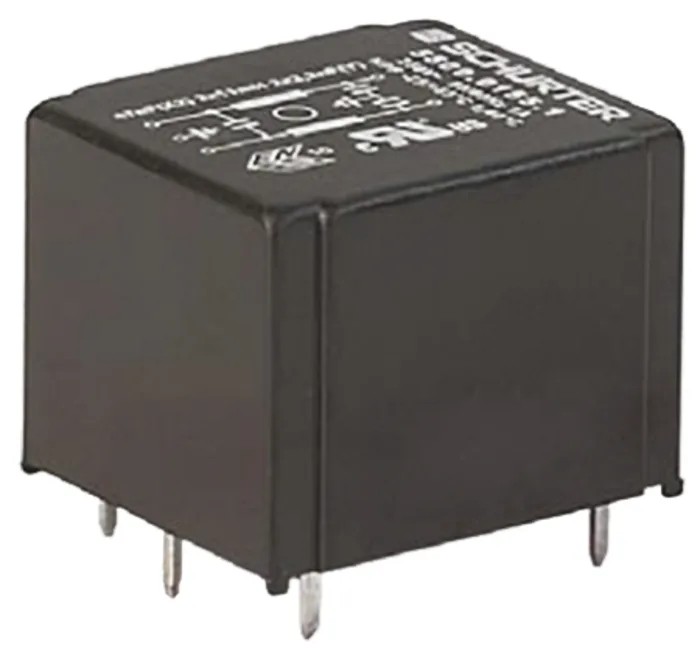

Schurter Single Phase Through Hole RFI Filter 6 A 250V AC 50Hz 60Hz PC Pin Termination 5500.0655.1
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Schurter |
| Height | 23.2mm |
| Length | 30mm |
| Depth | 26.6mm |
| Mount Type | Through Hole |
| Operating Frequency | 50, 60Hz |
| Series | 5500 |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 1 |
| Capacitance | 47nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 500μA |
| Maximum Voltage | 250V ac |
| Inductance | 0.7mH |
| Standards/Approvals | UL1283 |
| Termination Style | PC Pin |
Key Features
- Features PC pin termination style suitable for through hole mounting.
- Compact thermoplastic housing with UL94V-0 rating for flame resistance.
- Designed for EMC noise suppression in single-phase AC circuits.
- Operating temperature range from -25°C to 85°C ensures reliable performance.
- Capacitance of 47nF and inductance of 0.7mH reduce electromagnetic interference.
- Leakage current is limited to 500μA for safety compliance.
- Suitable for industrial and electronic equipment electrical noise filtering.
Product Description
Schurter 5500.0655.1 Single Phase Through Hole RFI Filter is engineered for effective electromagnetic interference suppression in power line applications demanding up to 6 A maximum current and 250V AC voltage at common frequencies of 50 and 60 Hz. The filter features a compact footprint with dimensions of 30mm length, 23.2mm height, and 26.6mm depth, allowing easy integration into printed circuit boards via its through hole mount and PC pin termination style.
Featuring a thermoplastic housing rated UL94V-0 for flame retardance, the device ensures durable and safe operation under industrial environments. It exhibits a capacitance of 47nF and an inductance of 0.7mH to effectively suppress conducted noise and EMI disturbances, with a low leakage current rating of 500μA to maintain safety and compliance.
Designed for single-phase circuits, this RFI filter operates reliably within a temperature range of -25°C to 85°C, making it suitable for a broad spectrum of electronics and electrical equipment in industrial, commercial, and manufacturing sectors requiring noise mitigation for enhanced system stability and compliance with EMC standards such as UL1283.
Features PC pin through hole mounting for secure PCB integration. Thermoplastic UL94V-0 rated housing enhances safety and durability. Capacitance 47nF and inductance 0.7mH for effective EMI suppression. Leakage current limited to 500μA for compliance and safety.
Operating temperature range from -25°C to 85°C ensures robust performance. Compact dimensions enable space-saving design on circuit boards. Single phase, 6A max current, and 250V AC max voltage handling.
This Schurter RFI Filter is ideal for applications across industrial machinery, laboratory equipment, power electronics, and other electrical systems requiring reliable interference reduction and compliance with electromagnetic compatibility standards.
Explore EnvMart's extensive catalog of electronic components and power line filters for additional high-quality products designed to enhance electrical system integrity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RFI filter has a maximum current rating of 6 A and a maximum voltage rating of 250 V AC.
The filter features a capacitance of 47 nF and an inductance of 0.7 mH, which help in reducing electromagnetic interference.
It operates reliably within a temperature range of -25°C to 85°C, making it suitable for various environments.
This model utilizes a through hole mounting style with PC pin termination, allowing for secure integration into printed circuit boards.
The dimensions of this unit are 30 mm in length, 23.2 mm in height, and 26.6 mm in depth.
It complies with UL1283 standards, ensuring it meets safety and performance requirements for electromagnetic compatibility.
The leakage current is limited to 500 μA, which is designed for safety compliance.
This filter is suitable for use in industrial machinery, laboratory equipment, and power electronics requiring electromagnetic interference reduction.
It operates at common frequencies of 50 Hz and 60 Hz, making it versatile for different applications.
The filter features a compact thermoplastic housing rated UL94V-0 for flame resistance, enhancing safety during operation.
This model has a single stage design, which is typical for its intended applications in noise suppression.
The country of origin for this product is Romania.
