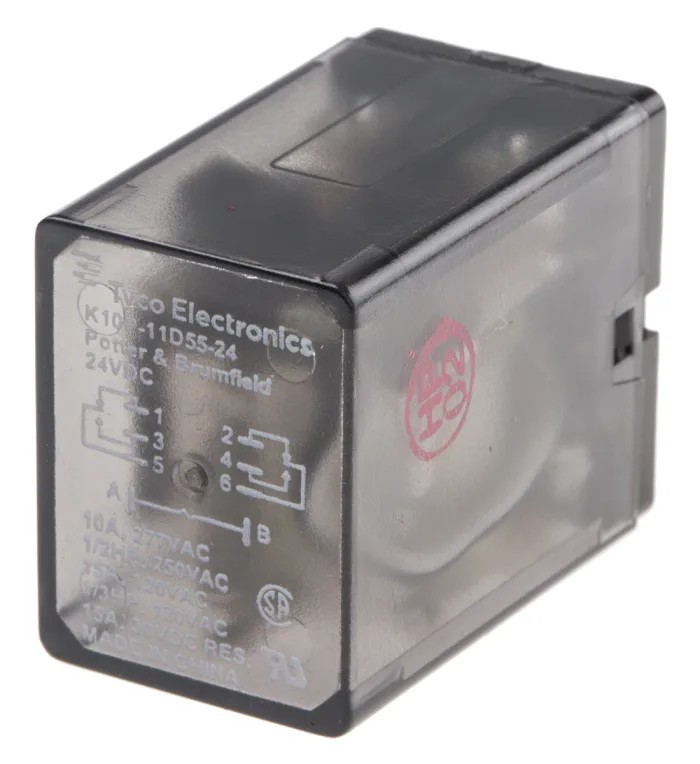

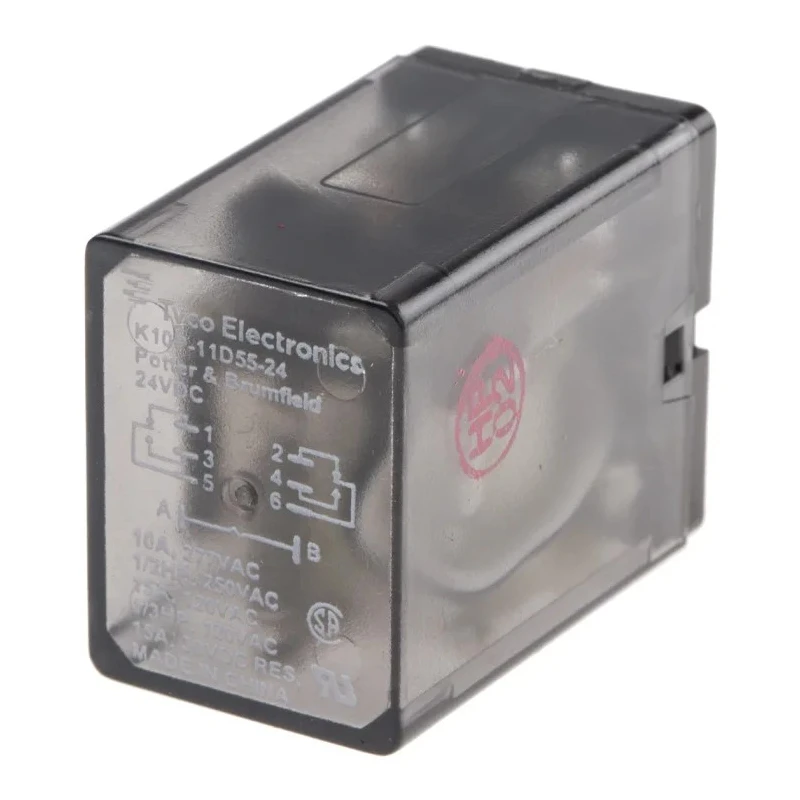

TE Connectivity PCB Power Relay, 24V DC Coil Voltage, 15A Switching Current, DPDT Contact Configuration K10P-11D55-24

TE Connectivity K10P-11D55-24 is a PCB power relay featuring a 24V DC coil voltage and a 15A switching current. Designed for precision and durability, this DPDT (Double Pole Double Throw) relay belongs to the reputable K10 series of miniature general relays. It is engineered for use in PCB mounted applications across various industries such as industrial automation, electrical control systems, and signal conditioning.

The relay’s coil resistance of 650 ohms ensures efficient coil power consumption at 900mW, important for reducing energy use and heat generation on densely packed PCBs. Its contact configuration provides two Form C contacts with silver alloy material offering robust electrical performance and durability.

This component supports switching AC voltages of up to 600V AC and can handle switching power up to 900mW, making it suitable for handling moderate load control on diverse electrical circuits. Its operating temperature range from -45°C to +70°C enables reliable performance in challenging environmental conditions found in industrial and manufacturing settings.

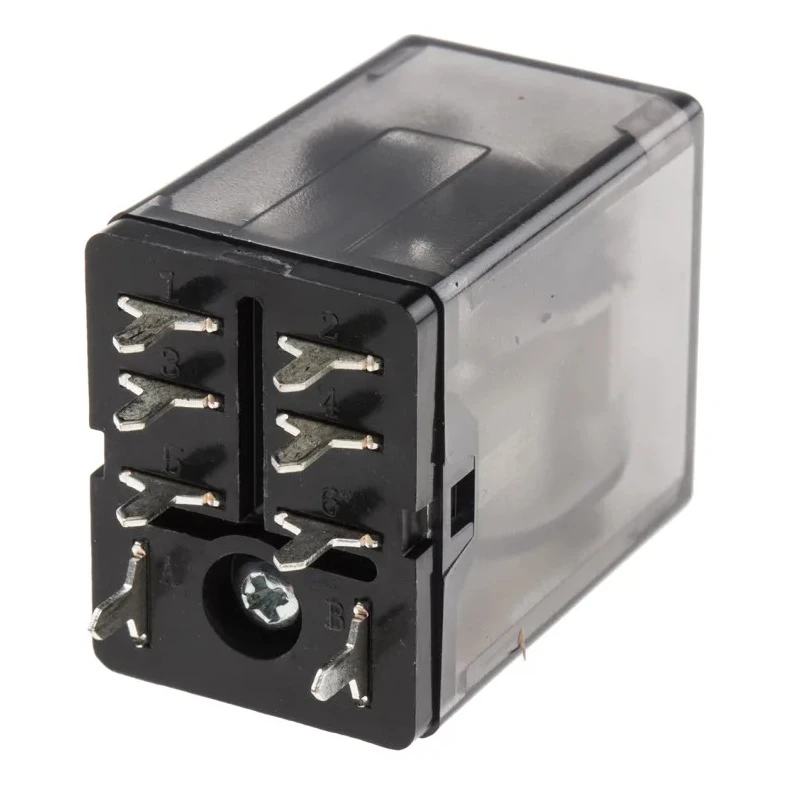

Measuring 28.2mm in length, 21.8mm in width, and 34.9mm in height, it is compact for efficient space management on circuit boards. The PCB terminal type pin allows easy insertion and soldering on printed circuit boards, facilitating streamlined assembly and maintenance.

Certified to UL, CSA, and UR standards, the TE Connectivity K10P-11D55-24 assures compliance with strict safety and quality requirements, ideal for industrial, laboratory, HVAC, and manufacturing control applications.

This relay features a coil resistance of 650 ohms, ensuring reliable coil operation. The contact material is a durable silver alloy that supports switching AC voltage up to 600V AC. Mount type is PCB with PCB pin terminals for easy assembly on printed circuit boards.

Operates within an ambient temperature range of -45°C to 70°C, suitable for diverse environments. K10 series miniature general relay is certified under UR, UL, and CSA standards for quality and safety. Compact dimensions: length 28.2mm, width 21.8mm, and height 34.9mm, fitting small footprint PCB layouts.

Coil power consumption is low at 900mW, enhancing energy efficiency.

This product is an essential component for industrial automation, electrical distribution, and controlling circuits in commercial and manufacturing equipment. EnvMart offers this TE Connectivity relay for professionals seeking durable and compliant PCB Power Relays.
