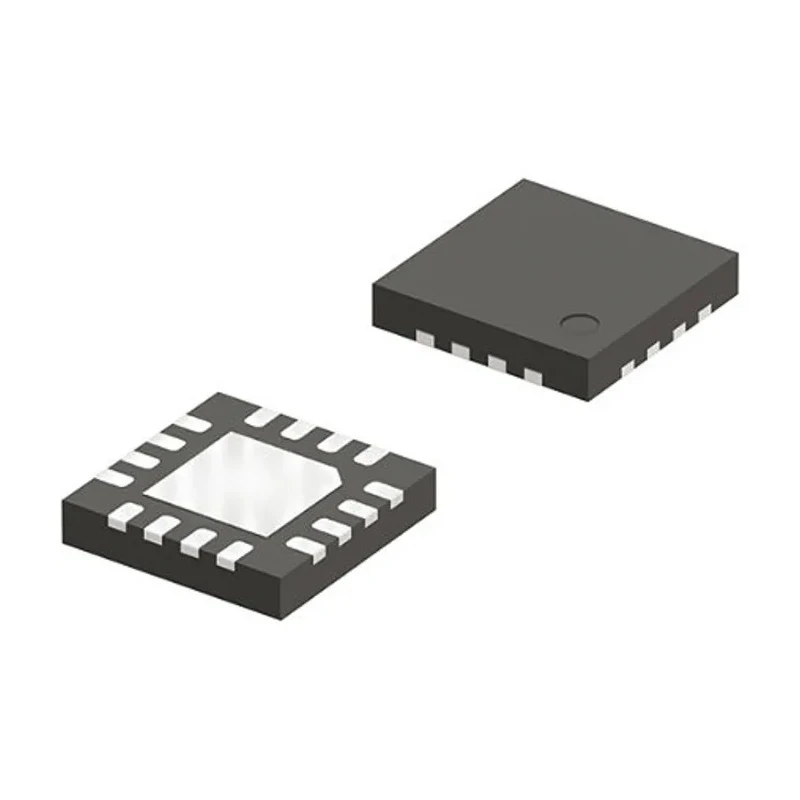

Texas Instruments 5-Channel Adjustable Step-Up DC/DC Converter TPS55340RTET 38V 3V 5A 16-Pin WQFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 720μm |
| Length | 3.15mm |
| Model | TPS55340RTET |
| Width | 3.15mm |
| Mount Type | Surface |
| Output type | Adjustable |
| Series | TPS55340 |
| Topology | Step Up |
| Maximum Operating Temperature | 150°C |
| Package Type | WQFN |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Maximum Input Voltage | 32V |
| Maximum Switching Frequency | 1480kHz |
| Maximum Output Current | 5A |
| Maximum Output Voltage | 38V |
| Minimum Input Voltage | 2.9V |
| Pin Count | 16 |
| Minimum Output Voltage | 3V |
Key Features
- This DC/DC converter offers a maximum output voltage of 38V and minimum output voltage of 3V.
- It operates with a minimum input voltage of 2.9V and maximum input voltage of 32V.
- The device supports a maximum output current of 5A with adjustable output settings.
- Designed with 16 pins in a compact WQFN package measuring 3.15 mm x 3.15 mm and 720 μm in height.
- It supports a maximum switching frequency of 1480 kHz enabling high efficiency and stability.
- The device operates over a wide temperature range from -40°C up to 150°C ensuring reliability in demanding conditions.
- Mount type is surface mount suitable for compact PCB layouts.
- This converter uses a step-up (boost) topology ideal for power management in various electronic applications.
Product Description
Texas Instruments TPS55340RTET is a highly integrated 5-Channel Adjustable Step-Up (Boost) DC/DC Converter designed for advanced power management solutions. It delivers a maximum output voltage of 38V and supports a minimum output voltage of 3V, with an adjustable output type to accommodate diverse design requirements.
This DC/DC converter accepts input voltages ranging from 2.9V to 32V with a maximum output current rating of 5A per channel. It features a high maximum switching frequency of 1480kHz, allowing for optimized power conversion efficiency and reduced component size.
Housed in a compact 16-pin WQFN package measuring 3.15 mm by 3.15 mm and height of 720 μm, this device ensures a low-profile footprint ideal for space-sensitive equipment. It is surface mount compatible to enable seamless integration within PCB designs.
Operating temperature ranges from -40°C to 150°C make the TPS55340RTET reliable for use in industrial, telecommunications, automotive (non-automotive standard), laboratory, and manufacturing power supply applications that require stable voltage regulation.
Maximum output voltage of 38V with adjustable outputs provides flexible voltage regulation. Step-up topology enables boosting input voltage efficiently for wide range applications. High switching frequency (1480 kHz) supports compact and low noise power designs.
Compact WQFN 16-pin package for space-optimized PCB layouts. Wide operating temperature range (-40°C to 150°C) ensures durability in harsh environments. Surface mount mounting type for modern electronics assembly techniques.
Supports multiple channels (5 outputs) for complex power supply systems. Ideal for power management in electronics, manufacturing, and industrial equipment.
This DC/DC Converter is an excellent choice for engineers seeking efficient power conversion solutions with high reliability and integration capabilities. Explore other Texas Instruments power management ICs in EnvMart’s Electronics & Electricals category for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 38V.
It accepts input voltages ranging from 2.9V to 32V.
This unit provides 5 outputs.
The maximum output current is 5A per channel.
It features a maximum switching frequency of 1480 kHz.
The operating temperature range is from -40°C to 150°C.
The WQFN package measures 3.15 mm x 3.15 mm with a height of 720 μm.
It supports surface mount installation.
Yes, it has an adjustable output type.
This converter uses a step-up (boost) topology.
It is suitable for industrial, telecommunications, automotive (non-automotive standard), laboratory, and manufacturing power supply applications.
The country of origin for this model is India.
