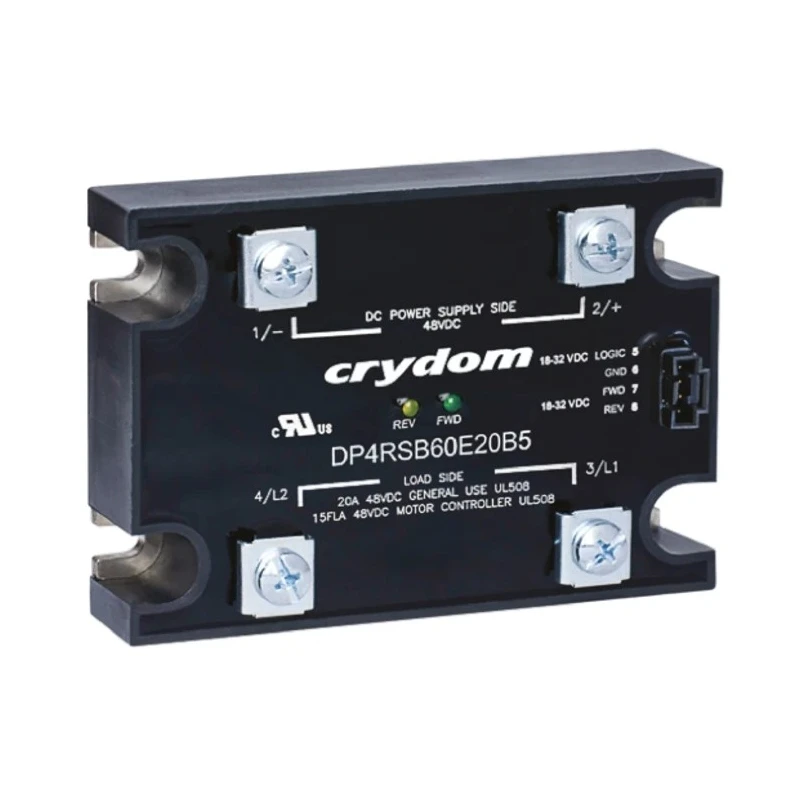

Crydom DP Series Solid State Relay Panel Mount, 20 A Load, 48 V dc Load, 32 V dc Control DP4R60E20

Crydom DP4R60E20 Solid State Relay is engineered for robust DC switching with a maximum load current of 20 A and a maximum load voltage of 48 V dc. This panel mount relay measures 104 mm in length, 20 mm in height, and 20 mm in width, allowing easy installation in industry-standard control panels.

The relay utilizes MOSFET output technology to deliver efficient switching with a low on-state resistance of 15Ω, reducing power losses. It supports control voltages from 18 V dc to 32 V dc, ensuring compatibility with common automation systems.

Its sturdy screw terminal configuration provides reliable electrical connections suitable for industrial environments. The solid state relay features a built-in forward/reverse protective interlock mechanism, enhancing operational safety by preventing simultaneous opposing outputs.

Suitable for demanding conditions, the DP series relay operates within a wide temperature range from -30°C to 80°C. It includes soft start/ramp up, soft stop/ramp down, and braking capabilities on each polarity, improving control over connected loads. LED indicators display the relay’s operating mode for easy status monitoring.

This device also boasts a leakage current as low as 20 μA and a capacitance of 10 pF, minimizing interference and enhancing performance. The IP20 rating protects against intrusion of solid objects larger than 12 mm, making it suitable for indoor panel environments.

Applications for the Crydom DP4R60E20 include industrial automation systems, electrical control panels, and equipment that require precise DC load switching with polarity reversing capabilities. Its compact design and comprehensive control features make it ideal for manufacturing, process control, and HVAC systems.

Designed for panel mounting with compact 75 x 105 mm package size. Supports 20 A maximum load current and 48 V dc load voltage. Control voltage range from 18 V dc to 32 V dc for flexible input control. MOSFET output with 15Ω on-state resistance for efficient operation.

Built-in forward/reverse interlock for operational safety. Operating temperature range from -30°C to 80°C for durability. Soft start, soft stop, and braking functions enhance load control. LED status indicators for operational feedback.

Screw terminals ensure secure and reliable wiring connections. IP20 protection suitable for industrial indoor environments.

For professionals engaged in industrial automation and control systems, the Crydom DP Series Solid State Relay offers reliable performance and advanced safety features. Explore additional Crydom products and related relays at EnvMart to complete your electrical control panel solutions.
