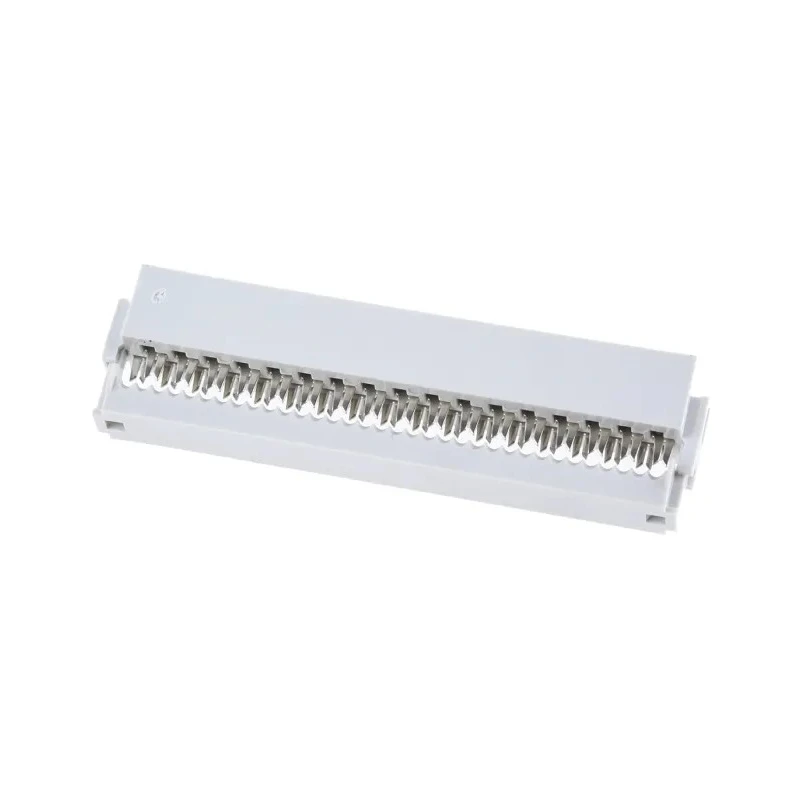

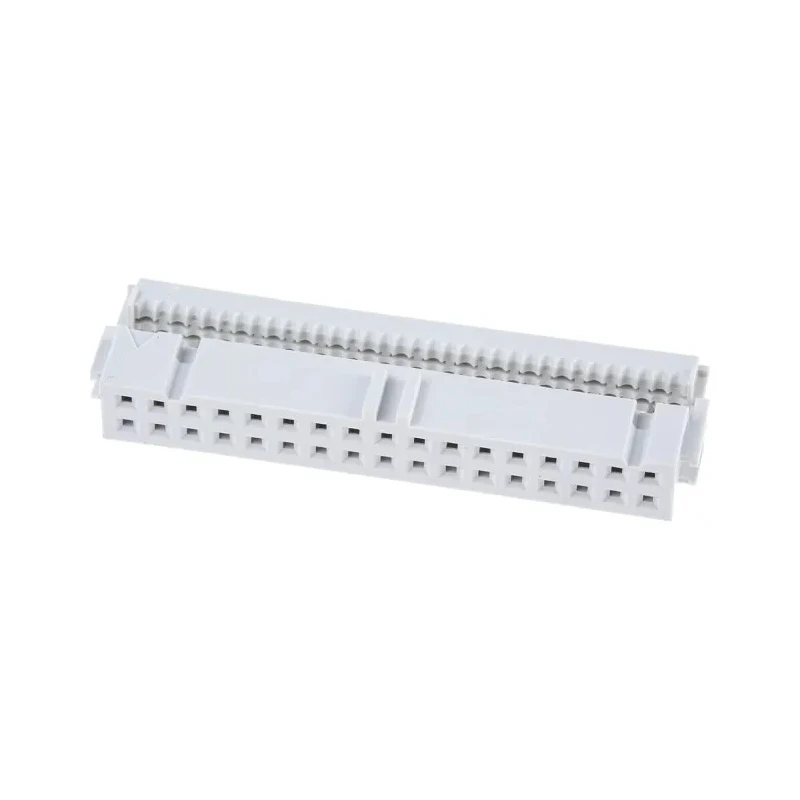

Amphenol Communications Solutions Quickie 34 Way Right Angle 2.54 mm Pitch Cable IDC Connector Female 71600-034LF

Amphenol Communications Solutions 71600-034LF Quickie 34 Way Right Angle 2.54 mm Pitch Cable IDC Connector Female is a high-quality IDC connector designed for reliable and efficient cable termination in electronic, industrial, and communications applications.

The connector features 34 contacts arranged with a 2.54 mm pitch, accommodating flat flexible cables with wire sizes between 30 AWG and 26 AWG. Its right angle orientation aids in compact circuit designs.

The housing is made from fibreglass reinforced thermoplastic, providing robust mechanical strength and thermal resistance. Contacts are manufactured from phosphor bronze and plated with gold over nickel to ensure excellent conductivity, low contact resistance, and protection from corrosion.

Electrical ratings include a current capacity of 1 ampere and voltage rating of 1kV AC. The connector is suitable for continuous operation in temperatures ranging from -65°C to 105°C, covering demanding environmental conditions.

Featuring an adjustable bridge type cover, it enables easy cable assembly and precise cover-to-base alignment, ensuring reliable terminations. The duplex plating on the contacts guarantees durability with up to 100 mating cycles.

Polarization slots and keying mechanisms on the housing prevent mismating, enhancing installation accuracy and system reliability.

These IDC Connectors are widely used across markets such as industrial automation, instrumentation, medical devices, consumer electronics, and communication systems, supporting a variety of electrical interconnection needs.

Part numbers 71600-0XXXX include strain relief and mate with specific shrouded latched headers. For mating Quickie latch headers, see stock number 771-0066. This product originates from France and complies with RoHS environmental standards.

Features 34 contacts with 2.54 mm pitch for dense wiring requirements. Right angle orientation suited for space-saving applications. Housing constructed from fibreglass reinforced thermoplastic for durability. Gold over nickel plating on phosphor bronze contacts ensures excellent conductivity and corrosion resistance.

Capable of handling currents up to 1A and withstands voltages of 1kV AC. Operates reliably in temperature range from -65°C to 105°C. RoHS compliant, assuring environmental safety. Adjustable bridge type cover permits simple and accurate cable assembly.

Duplex plating supports up to 100 mating cycles for long-term use. Polarization slots prevent mismating during installation. Explore the Amphenol Communications Solutions range on EnvMart for advanced connector solutions tailored to industrial and electronic systems.
