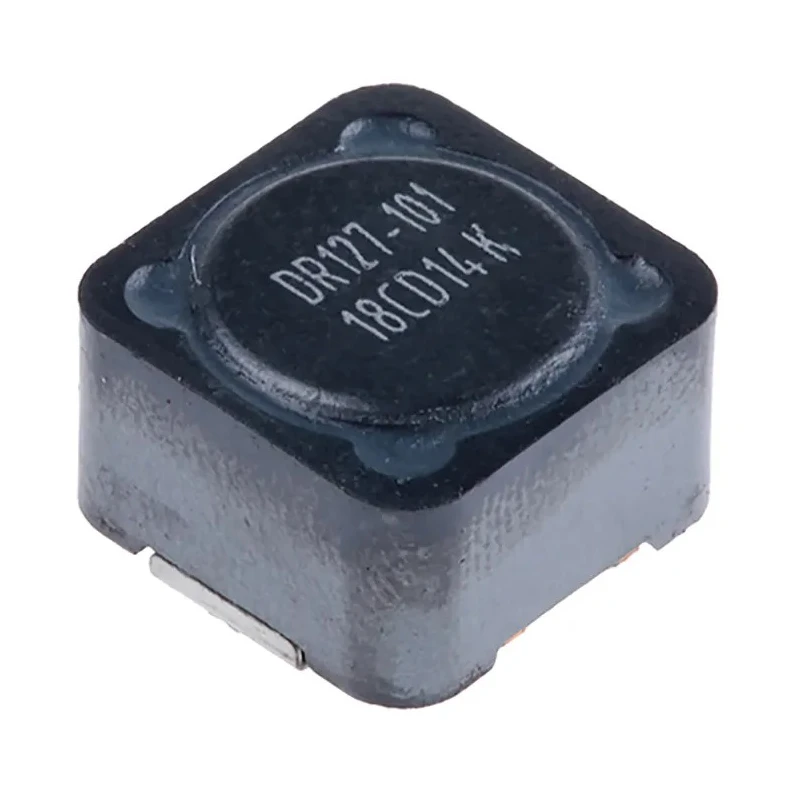

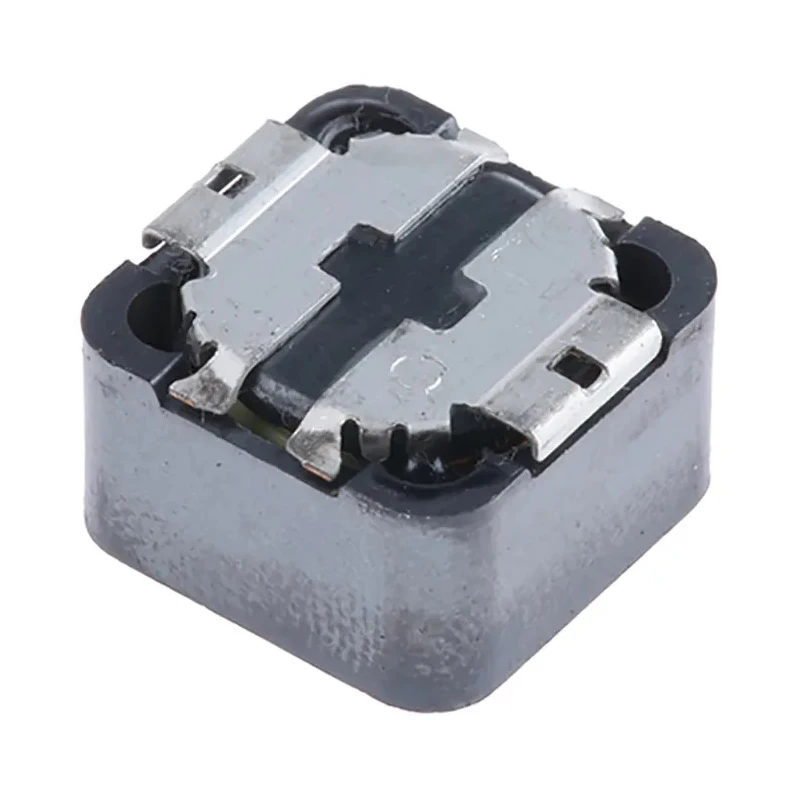

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20 %, 3.64 A IDC, 0127 Package DR127-101-R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Height | 8mm |
| Length | 12.5mm |
| Model | DR127-101-R |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | DR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 0127 |
| Maximum DC Current | 3.64A |
| Pin Count | 2 |
| Maximum DC Resistance | 163mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Wirewound surface mount inductor constructed with a ferrite core for enhanced magnetic performance.
- Inductance value of 100 μH with tolerance of ±20 % ensuring reliable operation within specified range.
- Supports a maximum DC current of 3.64 A for medium power applications.
- Package size 0127 with dimensions 12.5 mm length, 8 mm height, and 12.5 mm depth for compact PCB mounting.
- Shielded design minimizes electromagnetic interference in sensitive electronic circuits.
- RoHS compliant and designed for surface mount termination style suitable for automated assembly.
- Maximum DC resistance of 163 mΩ to maintain efficient current flow.
- Operating temperature range from -40°C to 125°C ideal for industrial and commercial uses.
Product Description
Eaton DR127-101-R shielded wirewound surface mount inductor with a ferrite core provides a reliable inductance of 100 μH ±20 % and supports a maximum DC current of 3.64 A. This inductor features a compact 0127 package with dimensions 12.5 mm length, 8 mm height, and 12.5 mm depth, making it suitable for dense PCB layouts and automated assembly processes.
The wirewound construction ensures stable inductive performance and the magnetic shielding effectively reduces electromagnetic interference, enhancing circuit reliability. It is constructed using a ferrite core material to deliver high efficiency at elevated current ratings. Designed for a wide temperature range of -40°C to 125°C, this component is ideal for demanding industrial, computer, portable device circuits, and DC-DC converter applications.
The DR series inductors are optimized for a variety of roles including noise filtering, buck, boost, forward and resonant converters. The component is RoHS compliant, molded, and has a surface mount termination style that supports reliable placement and soldering on printed circuit boards. With a maximum DC resistance of 163 mΩ, it maintains efficient electrical conduction and supports frequencies up to 100 kHz.
Wirewound surface mount construction with ferrite core. 100 μH inductance ±20 % tolerance for precision inductor performance. Supports maximum DC current of 3.64 A for power efficiency. Shielded design to minimize electromagnetic interference.
Compact 0127 package with 12.5x8x12.5 mm dimensions. Wide operating temperature range from -40°C to 125°C. RoHS compliant and molded for environmental safety. Maximum DC resistance 163 mΩ. Suitable for computer, portable devices, DC-DC converters, and noise filtering applications.
This Eaton DR127-101-R inductor is trusted for high power density and high-efficiency applications in industrial and electronic circuits. For reliable Surface Mount Inductors meeting stringent electrical and environmental standards, explore our full Eaton component range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100 μH with a tolerance of ±20 %.
It supports a maximum DC current of 3.64 A.
The dimensions of the 0127 package are 12.5 mm in length, 8 mm in height, and 12.5 mm in depth.
The operating temperature range is from -40°C to 125°C.
It is constructed with a ferrite core for enhanced magnetic performance.
The maximum DC resistance is 163 mΩ, which helps maintain efficient current flow.
This model features a surface mount termination style suitable for automated assembly.
It is suitable for applications such as DC-DC converters, noise filtering, and use in portable devices and computers.
The maximum self-resonant frequency is 100 kHz.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
It features a wirewound construction, which ensures stable inductive performance.
The country of origin for this inductor is India.
