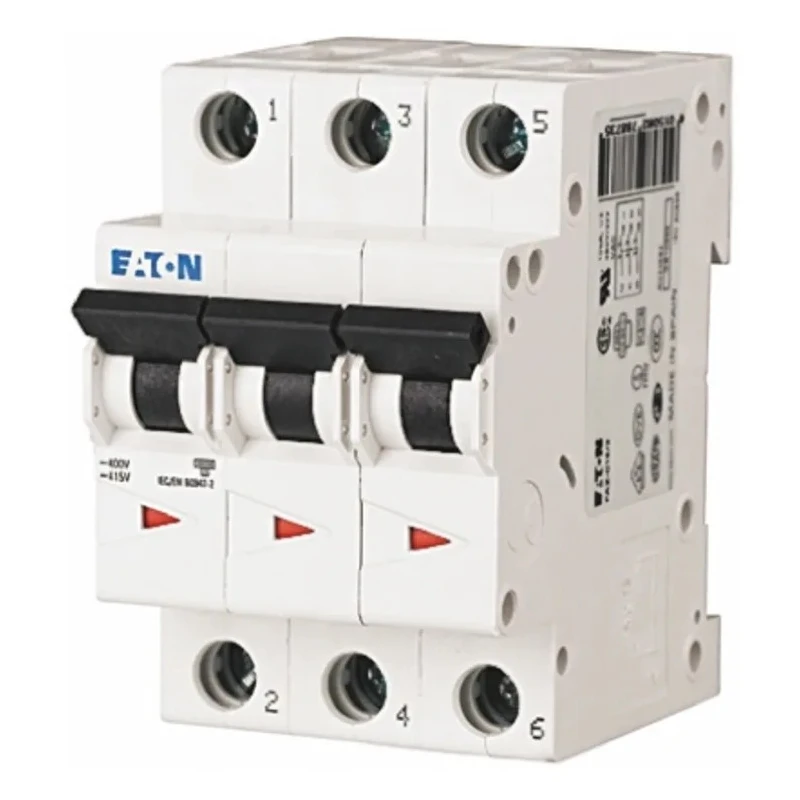

Moeller xEffect Miniature Circuit Breaker, 3-Pole, 2A, Type C, 400V AC, 6 kA Breaking Capacity -C2/3 FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Moeller |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 1 pole type C circuit breaker,10kA 2ABrand | Moeller |
Key Features
- Provides thermal-magnetic overcurrent protection.
- Rated for 400V AC voltage and 6 kA breaking capacity.
- Equipped with a toggle switch reset actuator for easy operation.
- Compatible with DIN rail mounting and has an IP20 rating for safety.
- Offers instant tripping with thermal and magnetic release mechanisms.
- Compact modular width of 17.5 mm per pole saves panel space.
- Designed with finger-proof and trip-free mechanisms to enhance user safety.
- Supports a wide range of tripping curves including Type C for diverse applications.
Product Description
The Eaton FAZ6-C2/3 miniature circuit breaker is part of the xEffect series, offering reliable overcurrent protection with a compact 3-pole design and a rated current of 2A. It operates at 400V AC with a breaking capacity of 6 kA, ideal for electrical distribution and control circuits in industrial settings.
Engineered with both thermal and electromagnetic trip mechanisms, this MCB provides fast short-circuit interruption with minimized let-through energy, helping protect electrical equipment from damage. It features a trip-free mechanism preventing manual bypass and is finger-proof to enhance operator safety.
The toggle switch actuator allows for clear indication of contact position and easy resetting. It is designed for DIN rail mounting, simplifying installation in panel boards, and has an IP20 ingress protection rating suitable for indoor industrial environments.
The small 17.5 mm per pole width conserves panel space while offering six short-circuit protection levels categorized by trip curves, including the Type C curve specific to this model. This model complies with international standards such as IEC 60898 and EN 60898, ensuring dependable performance in global industrial applications.
Typical applications include automation systems, electrical distribution in commercial and industrial setups, and protection of sensitive control equipment. The FAZ6 series also supports accessories like interlocks and auxiliary contacts for expanded functionality.
Provides thermal-magnetic overcurrent protection. Rated for 400V AC voltage and 6 kA breaking capacity. Equipped with a toggle switch reset actuator for easy operation. Compatible with DIN rail mounting and has an IP20 rating for safety.
Offers instant tripping with thermal and magnetic release mechanisms. Compact modular width of 17.5 mm per pole saves panel space. Designed with finger-proof and trip-free mechanisms to enhance user safety. Supports a wide range of tripping curves including Type C for diverse applications.
Suitable for use in control circuits and electrical distribution boards. Conforms to IEC 60898, EN 60898 and IEC standards ensuring quality and reliability. Explore the Eaton range of Miniature Circuit Breakers and other electrical protection devices on EnvMart for your industrial and commercial electrical safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 400V AC voltage and has a breaking capacity of 6 kA.
The circuit breaker has a width of 17.5 mm per pole and a depth of 62 mm.
It utilizes a thermal magnetic tripping mechanism for overcurrent protection.
This model features a 3-pole design.
It has an IP20 ingress protection rating, suitable for indoor use.
It is designed for DIN rail mounting, facilitating easy installation in panel boards.
This circuit breaker supports Type C tripping characteristics, which trip instantaneously when the current is 5 to 10 times the rated current.
It is equipped with a toggle switch reset actuator for easy operation.
It conforms to international standards such as IEC 60898 and EN 60898.
It is suitable for use in automation systems, electrical distribution in commercial and industrial setups, and for protecting sensitive control equipment.
The compact modular width of 17.5 mm per pole helps save panel space in electrical installations.
Yes, it supports accessories like interlocks and auxiliary contacts for expanded functionality.
