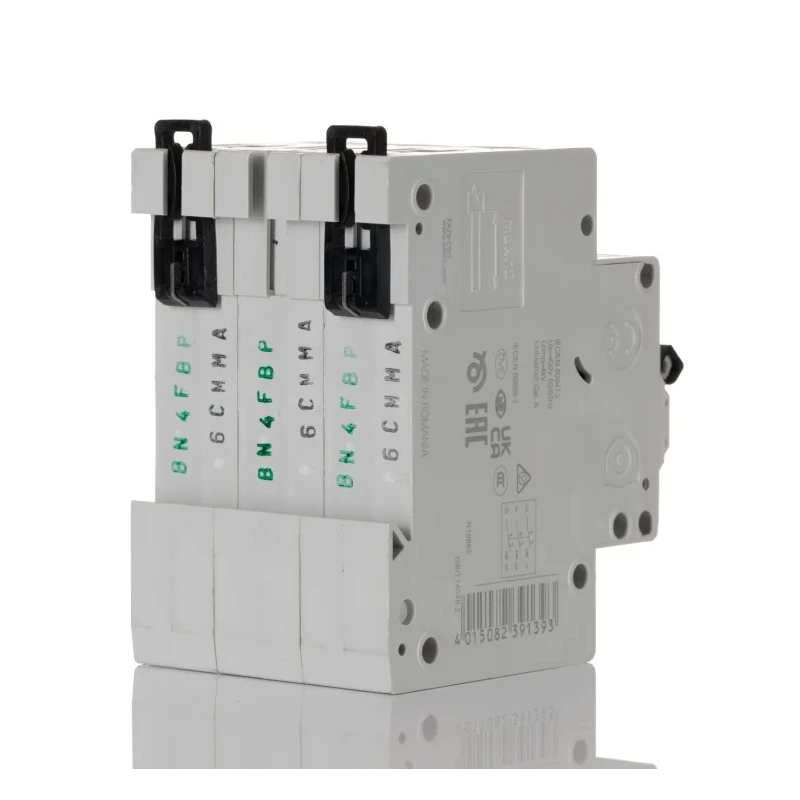

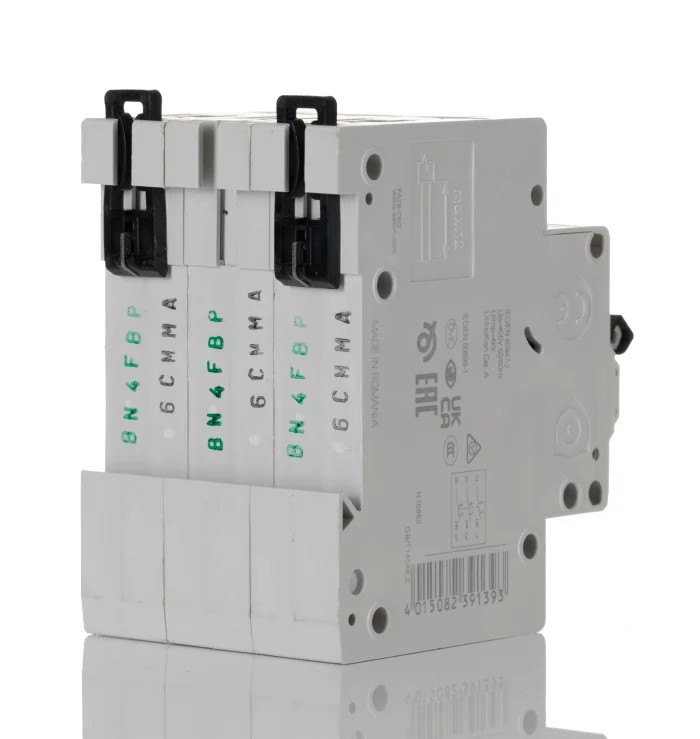

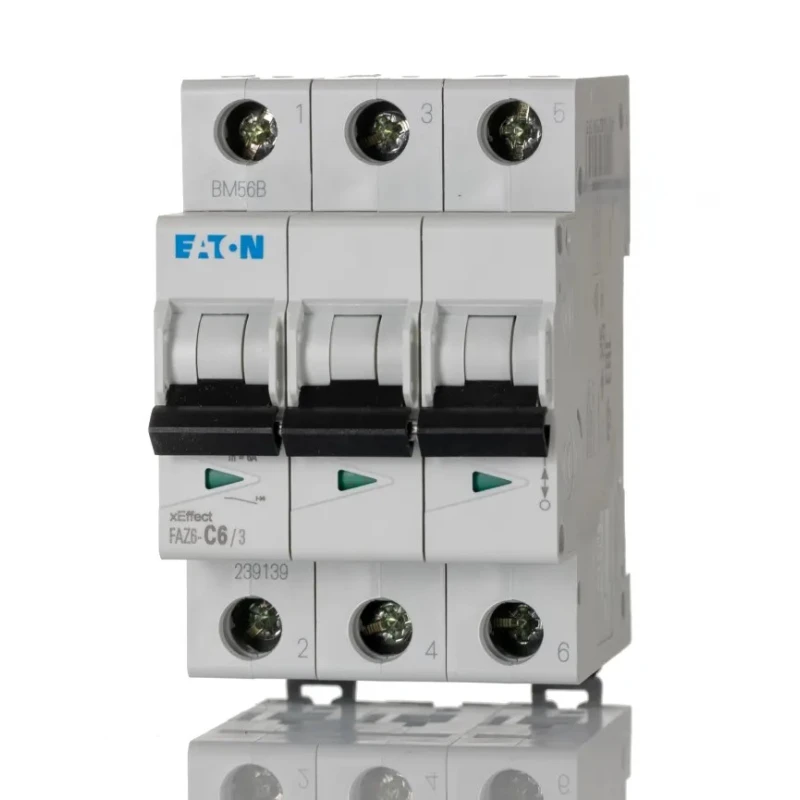

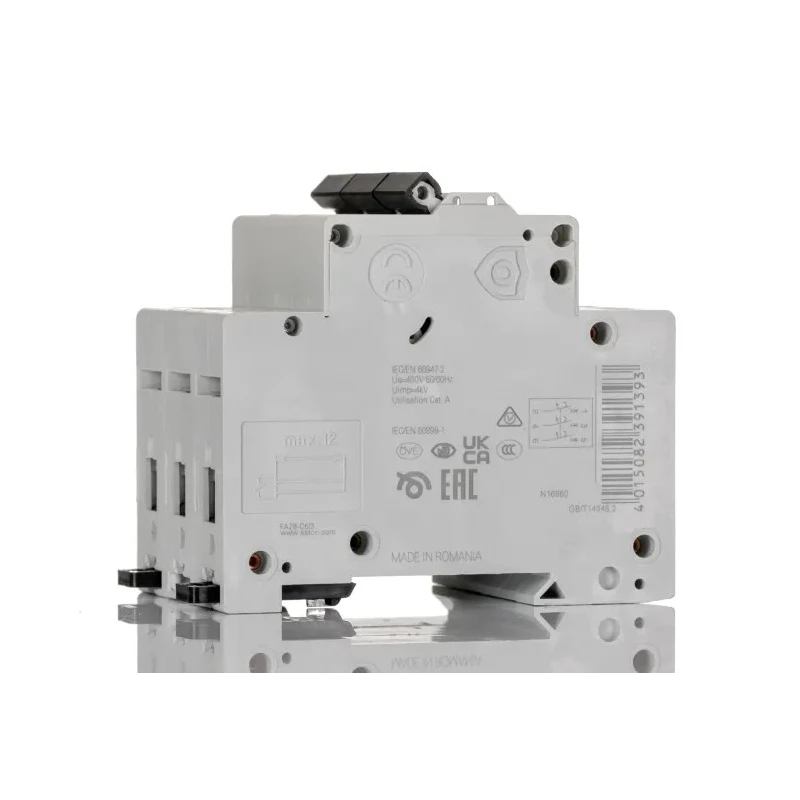

Moeller xEffect Miniature Circuit Breaker 3-Pole 6A Type C 400V AC 6 kA Breaking Capacity 239139 FAZ6-C6/3

Eaton 239139 FAZ6-C6/3 Miniature Circuit Breaker is a high-quality 3-pole 6A Type C protective device for electrical circuits. It is engineered to protect electrical equipment and installations by automatically shutting down power during short circuits or overload conditions via a thermal-magnetic tripping mechanism.

This circuit breaker features a Type C tripping characteristic, designed to trip instantly at 5 to 10 times its rated current of 6A, ensuring effective protection for installations with higher inrush currents such as motors and lighting controls. The device supports a rated AC voltage of 400V and offers a breaking capacity of 6kA, capable of handling moderate fault currents safely.

The compact form factor with dimensions 85 mm (length) x 73 mm (height) x 53.1 mm (width) allows efficient use of space in distribution boards and electrical panels, while the lightweight design at 360 grams minimizes mounting stress. It incorporates a finger-safe IP20-rated housing that guards against accidental contact with live parts and prevents the ingress of solid objects greater than 12 mm.

Installation is simplified with a standard 35mm DIN rail mounting system. The breaker features a front-facing toggle switch for easy status indication and manual operation. Its operational temperature range from -25°C to +75°C provides dependable performance in varied environmental conditions encountered in industrial, commercial, HVAC, and manufacturing settings.

Protects electrical circuits with a thermal-magnetic tripping mechanism. Type C characteristic enables instant tripping between 5 and 10 times rated current. Rated for 6A current and 400V AC voltage. Breaking capacity of 6kA ensures safe interruption of fault currents.

Compact size and 360 g weight facilitate easy installation and minimal overhead. IP20-rated finger-safe design protects users from electric shock and foreign objects. Front toggle switch allows clear visual indication of contact position.

Quick mounting on 35mm DIN rail supports rapid setup. Wide operating temperature range (-25°C to +75°C) suits diverse industrial environments.

This Eaton Miniature Circuit Breaker is ideal for use in industrial automation systems, electrical distribution boards, smart lighting control panels, and small motor protection applications. Rising safety demands and system reliability in commercial and manufacturing processes make it a trusted component for circuit protection.

Explore additional Eaton xEffect series products and circuit protection devices in the Electronics & Electricals category at EnvMart for comprehensive industrial electrical solutions.
