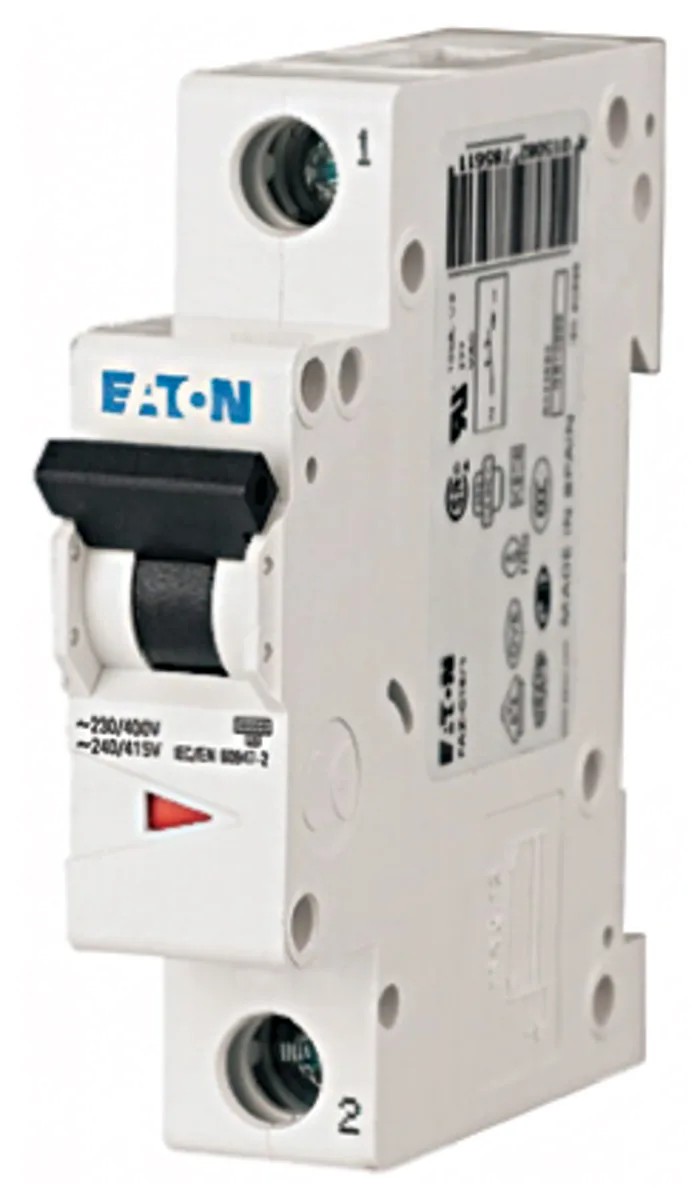

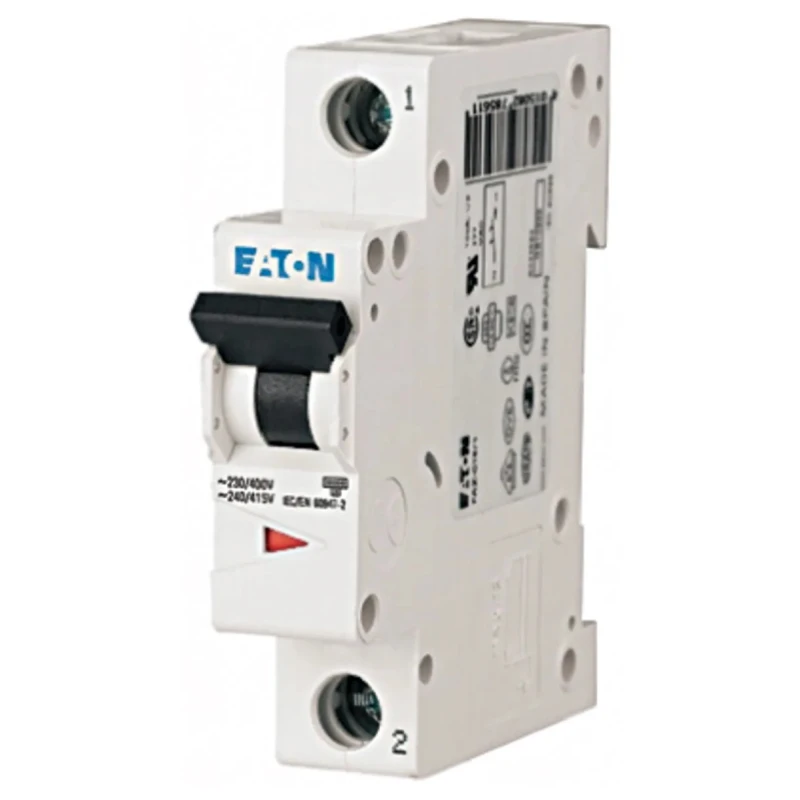

Moeller xEffect Miniature Circuit Breaker, 1-Pole, 500mA, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Moeller |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 500mA |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 1 pole type C circuit breaker,10kA 0.5ABrand | Moeller |
| Eaton MCB1P, 500mA Curve CBrand | Moeller |
Key Features
- Provides fast short-circuit interruption with a breaking capacity of 6 kA.
- Suitable for control circuits and electrical distribution boards.
- Features a trip-free mechanism and finger-proof design for enhanced safety.
- Supports DIN rail mounting with a compact 17.5mm module width per pole.
- Includes a toggle switch reset actuator for ease of operation.
- Complies with IEC 60947-2 and BS/EN standards for industrial applications.
- Offers thermal and electromagnetic release protection with Type C tripping characteristics.
- Designed for electrical equipment protection against overload and short-circuit damage.
Product Description
Eaton FAZ6 Miniature Circuit Breaker is a reliable 1-pole device rated at 500mA current, designed for 400V AC systems. This circuit breaker provides fast short-circuit interruption with a breaking capacity of 6 kA, making it suitable for control circuits and electrical distribution boards in industrial and commercial electrical applications.
Equipped with a thermal-magnetic tripping mechanism, the FAZ6 series offers precise overload and short-circuit protection. The trip-free design ensures that the breaker cannot be overridden by holding the handle in the ON position, enhancing user safety. Additionally, the device is finger-proof, complying with safety requirements.
Installation is simplified with DIN rail mounting and a compact width of only 17.5 mm per pole. The toggle switch reset actuator allows for easy manual operation. The device supports Type C tripping characteristics, which means instantaneous trip occurs when the current flow is 5 to 10 times the rated current, suitable for a variety of circuit protection needs.
The FAZ6 series complies with international standards IEC 60947-2 and BS/EN60-898, ensuring compatibility and reliability in industrial electrical systems. Eaton’s design includes a current limiting feature that reduces let-through energy during short circuits, protecting downstream equipment from damage.
Fast short-circuit interruption with 6 kA breaking capacity. Thermal-magnetic overcurrent protection with Type C tripping characteristics. Trip-free and finger-proof for enhanced safety. Compact 17.5mm width module, perfect for space-constrained panels.
Easy DIN rail mounting and clear switch position indication. Conforms to IEC and BS/EN standards for industrial applications. Toggle switch actuator for convenient reset and operation. Wide range of rated currents available in the series for diverse applications.
Reliable protection for electrical distribution boards and control circuits. Designed to prevent overload and short-circuit damages effectively.
Ideal for industrial, commercial, and manufacturing environments requiring dependable circuit protection. Browse or search the Eaton xEffect range in the EnvMart Electronics & Electricals category for more circuit breaker options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Moeller FAZ6 circuit breaker has a breaking capacity of 6 kA, allowing for fast short-circuit interruption.
This miniature circuit breaker is rated for a current of 500mA.
The FAZ6 employs a thermal-magnetic tripping mechanism, providing protection against overloads and short circuits.
The dimensions of the FAZ6 are 62mm in depth and 17.5mm in width per pole.
This circuit breaker is designed for DIN rail mounting, which simplifies installation in electrical panels.
The rated AC voltage for the Moeller FAZ6 is 400V AC.
The FAZ6 features Type C tripping characteristics, which means it trips instantaneously when the current flow is 5 to 10 times the rated current.
Yes, it includes a toggle switch reset actuator for ease of operation.
The FAZ6 has a trip-free mechanism that prevents it from being overridden and a finger-proof design for enhanced safety.
This circuit breaker complies with IEC 60947-2 and BS/EN standards, ensuring its reliability in industrial applications.
The FAZ6 is suitable for use in control circuits and electrical distribution boards in industrial and commercial environments.
The Moeller FAZ6 has an IP rating of IP20, indicating protection against solid objects larger than 12.5 mm but not against water.
