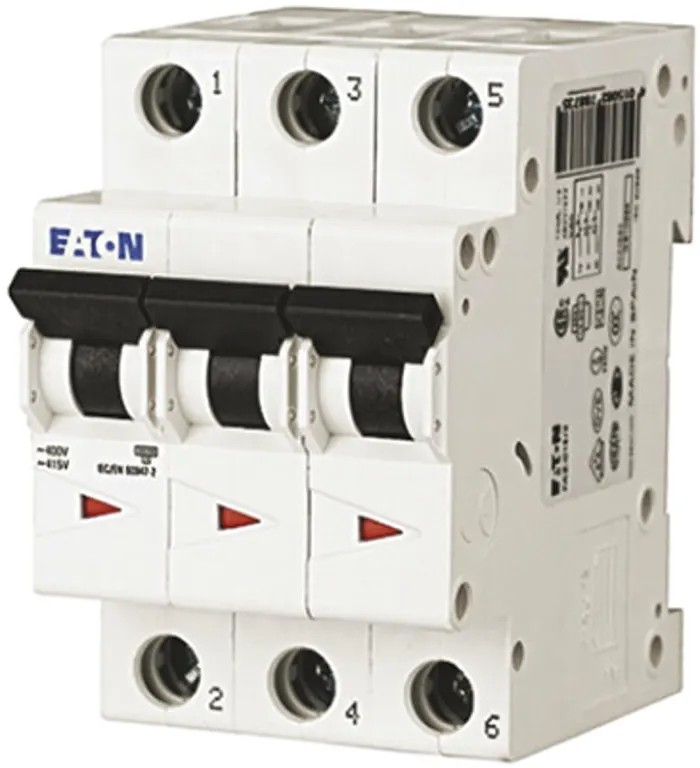

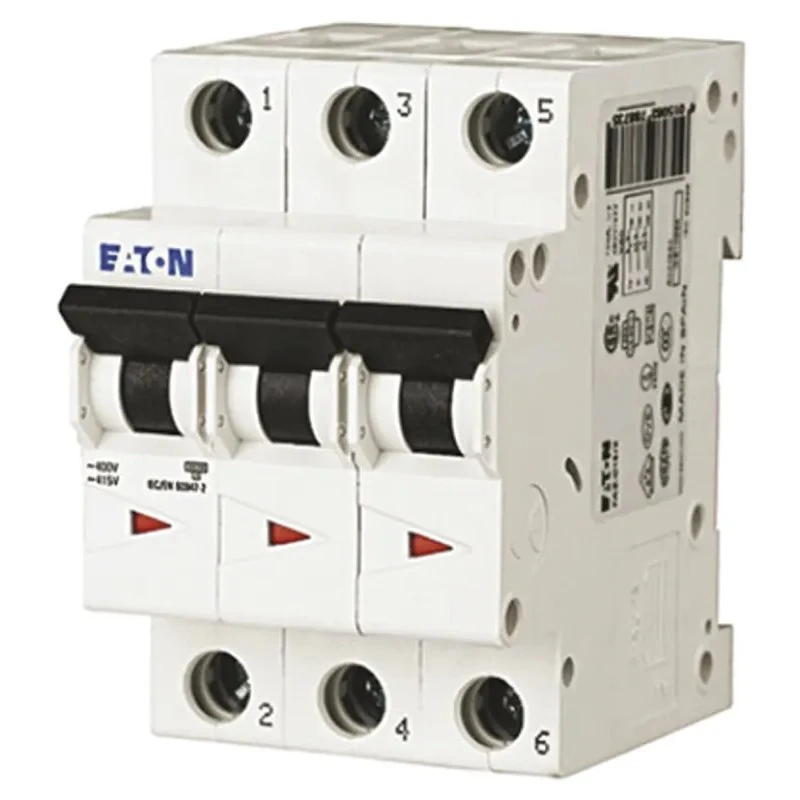

Moeller xEffect Miniature Circuit Breaker 3-Pole 4A Type C 400V AC 6kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Moeller |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 3 pole type C circuit breaker,10kA 4ABrand | Moeller |
Key Features
- Provides thermal-magnetic overcurrent protection for electrical circuits.
- Instantaneous trip with flow-through current 5 to 10 times the rated current.
- Suitable for DIN rail mounting with compact 17.5mm width per pole.
- Rated for 400V AC voltage and 6kA breaking capacity for safety.
- Toggle switch actuator with clear indication of contact position.
- Finger-proof design with trip-free mechanism enhancing operational safety.
- Compatible with Eaton xEffect series for diverse circuit protection.
- Complies with EN 60898 and IEC standards ensuring quality and reliability.
Product Description
Eaton FAZ6 miniature circuit breaker model is a 3-pole device rated at 4 amperes with Type C tripping characteristic, suitable for electrical protection applications at 400V AC with a breaking capacity of 6kA.
This breaker features thermal-magnetic overcurrent protection providing fast short-circuit interruption, minimizing damage to wiring and equipment. It includes a toggle switch actuator with clear position indication and a trip-free mechanism for reliable safety performance.
Designed for easy DIN rail mounting, the compact module width per pole is 17.5mm aiding space-saving installation in control panels and distribution boards. The device is finger-proof enhancing user safety during operation and maintenance.
Typical uses include residential and commercial electrical distribution safety, where overload and short circuit protection is essential. The FAZ6 series offers a broad range of rated currents from 0.5A to 63A and diverse tripping curves, ensuring adaptable protection tailored to your installation needs.
Standards compliance includes EN 60898 and IEC regulations, guaranteeing high quality and international acceptance. The modular design supports additional accessories such as interlocks, busbars, auxiliaries, and tripping modules compatible with the xEffect range.
Thermal-magnetic overcurrent protection ensures reliable circuit defense. Type C tripping curve with instantaneous trip at 5 to 10 times rated current. Compact DIN rail mountable design for efficient panel layouts. High breaking capacity of 6kA for industrial and commercial applications.
Finger-proof and trip-free safety features enhance operational security. Wide range of modular widths (1P, 2P, and 3P) for flexible installation. Clear switch toggle indication for easy operation status monitoring. Complies with EN 60898 and IEC standards for quality assurance.
Suitable for control circuits, electrical distribution boards, and protection of wiring systems. Explore the Eaton Miniature Circuit Breakers and related electrical protection devices to ensure robust and safe electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6kA, providing effective protection against short circuits.
This miniature circuit breaker is rated for 400V AC, suitable for various electrical applications.
The FAZ6 model is a 3-pole circuit breaker, allowing for three-phase protection in electrical circuits.
The current rating for this miniature circuit breaker is 4A, making it suitable for low-current applications.
It features a thermal-magnetic tripping mechanism, which provides reliable overcurrent protection.
The dimensions are 17.5mm in width and 62mm in depth, designed for compact installation on DIN rails.
This model has a Type C tripping characteristic, which trips instantaneously when the current is 5 to 10 times the rated current.
Yes, it is designed for easy DIN rail mounting, facilitating efficient installation in control panels.
It complies with EN 60898 and IEC standards, ensuring quality and reliability in electrical protection.
It includes a finger-proof design and a trip-free mechanism, enhancing operational safety during use.
The IP rating of this model is IP20, indicating it is suitable for indoor use with limited protection against solid objects.
It is suitable for residential and commercial electrical distribution safety, providing overload and short circuit protection.
