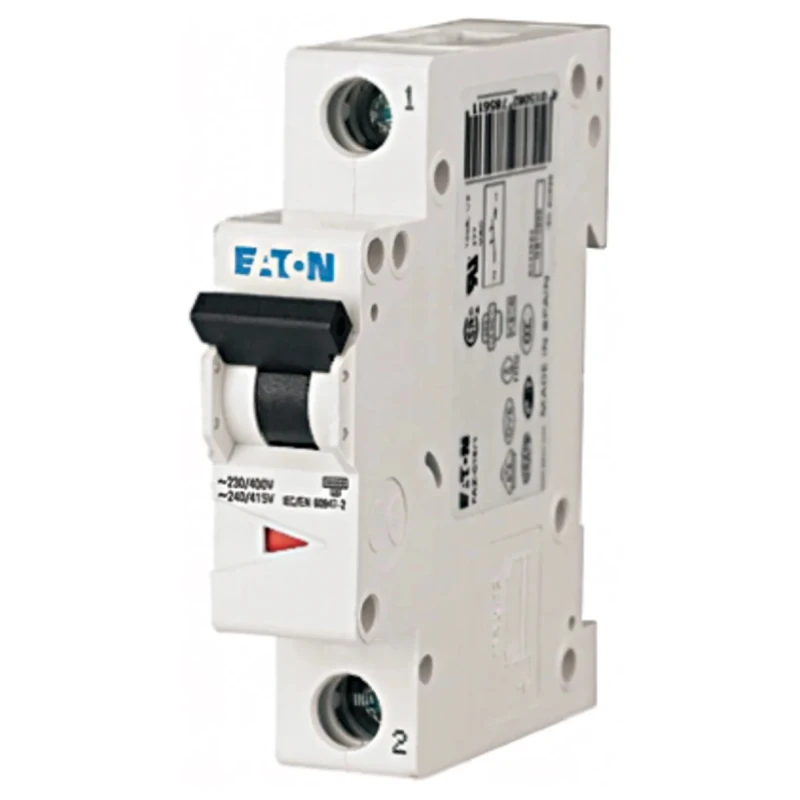

Moeller xEffect Miniature Circuit Breaker 1-Pole 20A Type C 400V AC 6 kA Breaking Capacity -C20/1 FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Moeller |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 1 pole type C circuit breaker,10kA 20ABrand | Moeller |
| Eaton MCB1P, 20A Curve CBrand | Moeller |
Key Features
- Thermal-magnetic overcurrent protection delivers reliable circuit safety.
- 1 pole design with 20A current rating suitable for residential and industrial use.
- Type C tripping curve trips at 5 to 10 times rated current preventing overload.
- Compact 17.5 mm width saves panel space and simplifies installation.
- DIN rail mounting supports easy and secure fitting in distribution boards.
- Instantaneous break time and toggle switch actuator for quick and clear operation.
- Finger proof with trip-free mechanism enhancing user safety.
- Compatible with Eaton’s xEffect series accessories including busbars and auxiliaries.
Product Description
Eaton FAZ6-C20/1 Miniature Circuit Breaker, part of the xEffect FAZ6 series, is a 1-pole device designed for fast and reliable electrical protection. It features a 20A current rating with a Type C tripping mechanism that interrupts electrical faults at 5 to 10 times the rated current, suitable for a wide range of residential, commercial, and industrial electrical installations.
The breaker supports a 6 kA breaking capacity rated for 400V AC systems and is mounted easily on standard DIN rails. Its narrow 17.5 mm width allows for efficient use of space in control panels and electrical distribution boards.
The thermal-magnetic tripping mechanism offers dual protection against overloads and short circuits, with an instantaneous break time ensuring rapid response to electrical faults. The toggle switch provides clear indication of contact position while ensuring the breaker cannot be overridden by holding the switch in the ON position, enhancing operational safety.
The FAZ6 series also includes accessories such as interlocks, busbars, auxiliary contacts, and tripping modules to extend system functionality. The product complies with IEC 60947-2 standards and relevant international electrical safety norms, though it is not explicitly certified in this listing.
This miniature circuit breaker is IP20 rated for finger protection, suitable for control circuits and electrical distribution boards in industrial, commercial, and residential environments, supporting efficient and reliable power distribution management.
Thermal-magnetic overcurrent protection for reliable electrical fault interruption. Compact 17.5 mm width per pole saves panel space in distribution boards. DIN rail mounting enables quick and safe installation. Type C tripping characteristic protects against moderate surge currents.
6 kA breaking capacity ensures robust short-circuit interruption. Toggle switch actuator with clear contact position indication. Trip-free mechanism prevents bypassing safety protection. Compatible with Eaton xEffect series accessories and modular widths.
Choose Eaton FAZ6-C20/1 for efficient electrical protection in industrial, manufacturing, construction, and residential electrical systems. Explore the full range of Miniature Circuit Breakers and accessories from Eaton for tailored electrical safety solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A, suitable for various electrical applications.
It features a breaking capacity of 6 kA, which ensures effective short-circuit interruption.
It uses a thermal-magnetic tripping mechanism, providing protection against overloads and short circuits.
The rated AC voltage for this miniature circuit breaker is 400V AC.
This model has a compact width of 17.5 mm, allowing for efficient use of space in electrical panels.
It supports DIN rail mounting, facilitating quick and secure installation in distribution boards.
It has a Type C tripping characteristic, which trips at 5 to 10 times the rated current, suitable for moderate surge currents.
Yes, it is suitable for residential, commercial, and industrial electrical installations due to its versatile design.
The depth of this circuit breaker is 62 mm, which is standard for DIN rail mounted devices.
It includes a trip-free mechanism that prevents bypassing safety protection and a toggle switch for clear contact position indication.
This unit has an IP20 rating, providing finger protection for safe handling and installation.
It belongs to the xEffect series, which includes various accessories for enhanced functionality.
