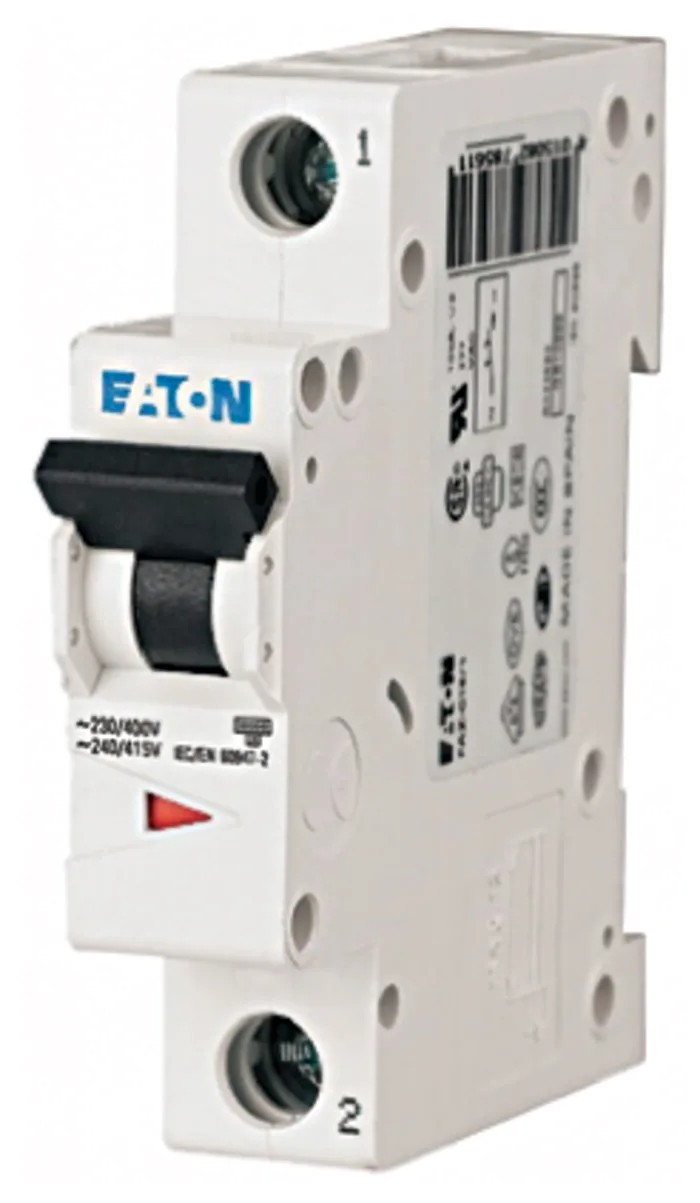

Moeller xEffect Miniature Circuit Breaker, 1-Pole, 25A, Type C, 400V AC, 6 kA Breaking Capacity -C25/1 FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Moeller |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| Eaton MCB1P, 25A Curve CBrand | Moeller |
Key Features
- Single-pole configuration ideal for compact electrical distribution.
- Type C tripping characteristic for moderate inrush currents.
- Rated for 400V AC voltage applications.
- Breaking capacity of 6 kA ensures safe interruption of short circuits.
- Mountable on standard DIN rail for easy installation.
- IP20 rated with finger-safe housing for operator protection.
- Toggle switch actuator with trip-free mechanism prevents override.
- Compact 17.5 mm module width saves panel space.
Product Description
Eaton FAZ6-C25/1 xEffect Miniature Circuit Breaker offers precise and dependable protection designed for electrical distribution boards and control circuits operating at 400V AC. This single-pole breaker supports a rated current of 25 amperes with a thermal-magnetic tripping mechanism and Type C instantaneous characteristic, which is well-suited for devices and circuits with moderate inrush currents.
The breaker features a quick short-circuit interruption capacity of 6 kA, reducing the risk of damage caused by electrical faults. The device mounts easily onto standard DIN rails, and its slim 17.5 mm width per pole allows space-saving installation in electrical panels.
Engineered with safety and convenience in mind, the FAZ6-C25/1 includes a toggle switch with a trip-free actuator to prevent manual override of the tripping function. The IP20 rated enclosure provides finger protection ensuring operator safety.
The xEffect series breakers include diverse protection characteristics and modular accessories such as busbars and tripping modules, facilitating flexible electrical system designs. This breaker’s dual IEC 60947-2 rating confirms compliance with international standards for low voltage switchgear.
Common industrial, commercial, and residential use cases include overload protection in electrical machines, lighting circuits, and general power distribution, making this breaker a versatile and reliable choice for circuit protection.
Single-pole, 25A rated current breaker with thermal magnetic trip. Type C characteristics for enhanced protection against moderate surges. 400V AC rated operating voltage. 6 kA breaking capacity ensures high short circuit interruption capability.
DIN rail mountable with compact 17.5 mm module width. IP20 finger-safe protection and trip-free toggle switch. Complies with IEC 60947-2 and related standards. Ideal for distribution boards and control circuits. Explore Eaton products and the xEffect series in EnvMart's comprehensive electrical circuit breakers category for effective and safe power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 25 amperes.
It features a breaking capacity of 6 kA, allowing for safe interruption of short circuits.
The breaker is rated for a maximum operating voltage of 400V AC.
It utilizes a thermal-magnetic tripping mechanism, which is effective for overload protection.
The unit has a width of 17.5 mm and a depth of 62 mm.
It is designed for DIN rail mounting, facilitating easy installation.
It has an IP20 rating, providing finger-safe protection.
This model has a Type C tripping characteristic, suitable for moderate inrush currents.
The break time is instantaneous, ensuring quick response to electrical faults.
It is commonly used for overload protection in electrical machines, lighting circuits, and general power distribution.
Yes, it complies with IEC 60947-2 standards for low voltage switchgear.
The toggle switch actuator features a trip-free mechanism that prevents manual override of the tripping function.
