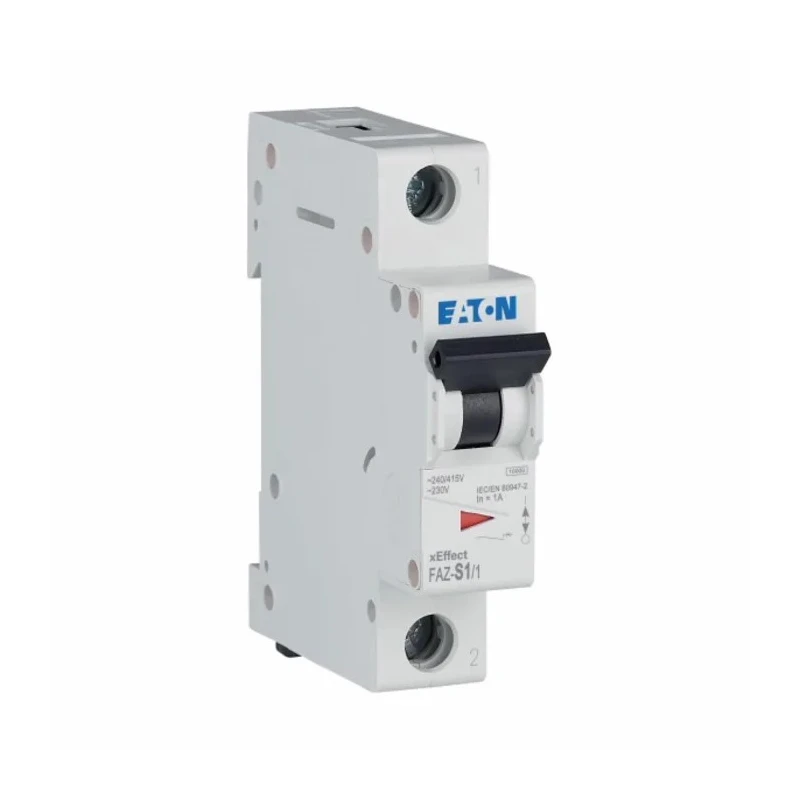

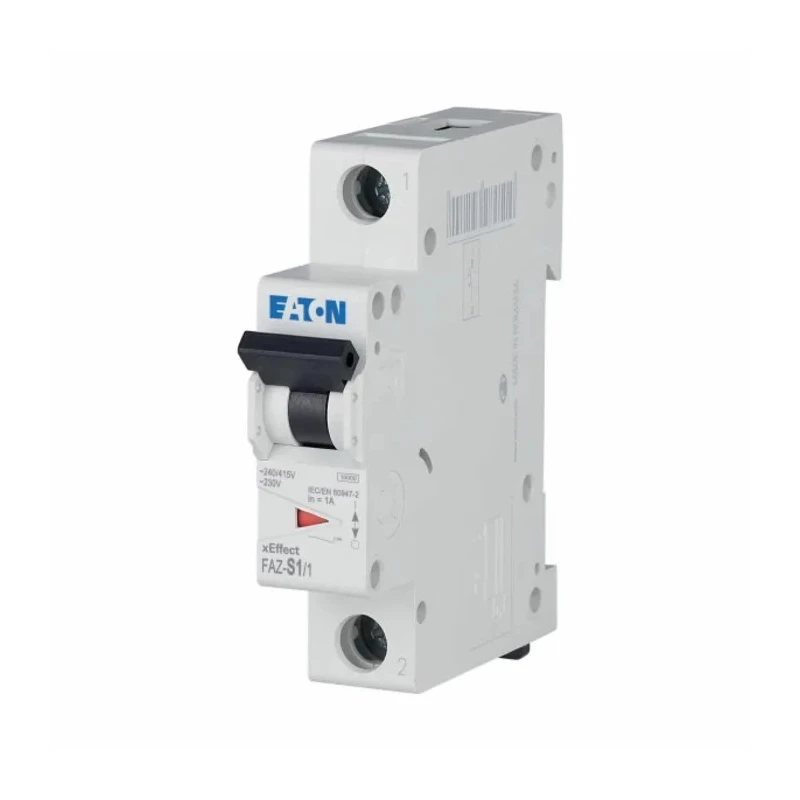

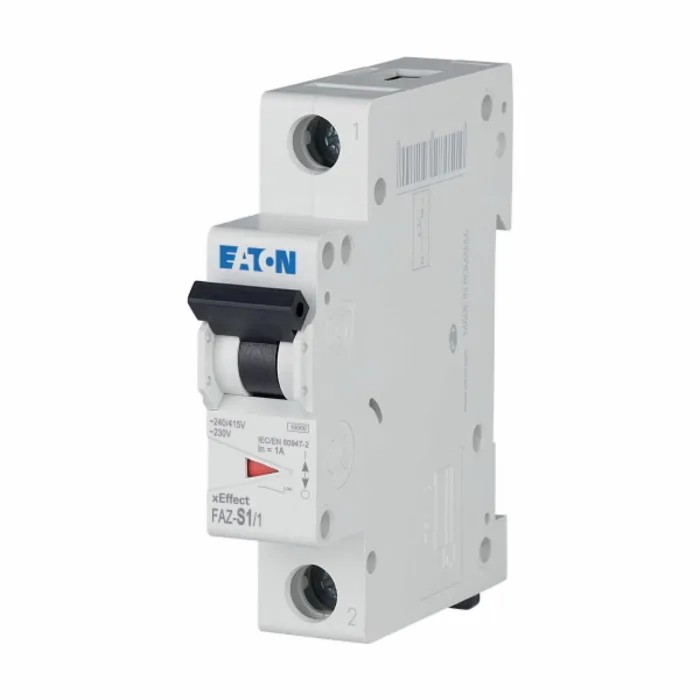

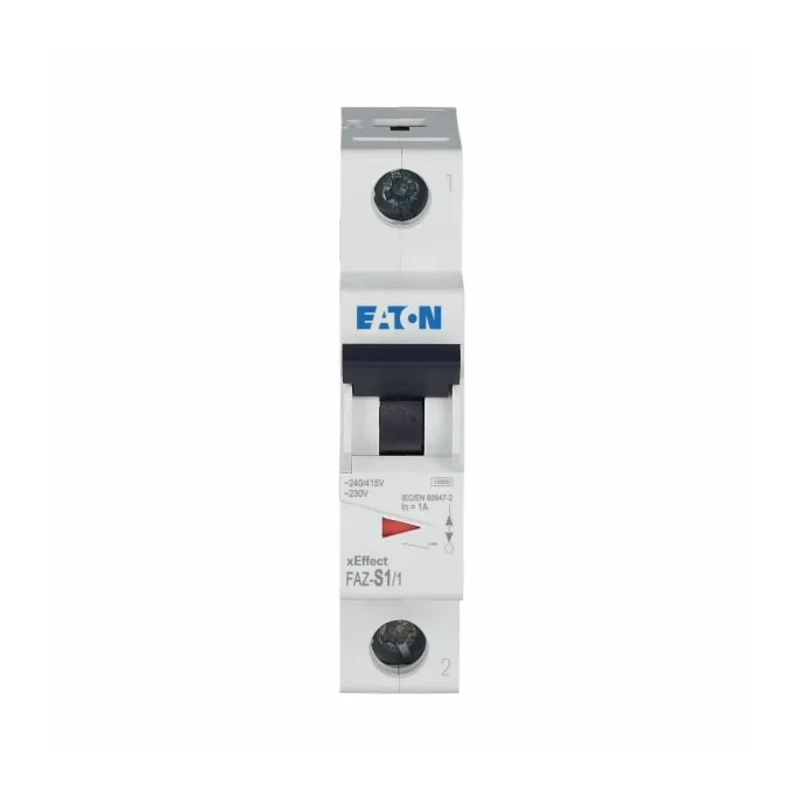

Moeller xEffect Miniature Circuit Breaker 1-Pole 1A Type S 230V AC 60V DC 10kA Breaking Capacity 278606 FAZ-S1/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Moeller |
| Model | 278606 FAZ-S1/1 |
| Depth | 74mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | xEffect |
| Terminal type | Twin-Purpose Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type S |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| 1 pole type S circuit breaker,6kA 1ABrand | Moeller |
Key Features
- Type S tripping characteristics allow handling surges 13 to 17 times its rating.
- Rated for 230V AC and 60V DC operation with a breaking capacity of 10 kA.
- Low heat loss of 1.6W ensures energy-efficient operation.
- Mounts easily on standard DIN rails for quick installation.
- Thermal magnetic tripping mechanism provides dependable protection.
- IP20 protection prevents ingress of solid objects larger than 12.5 mm.
- Resettable with a front toggle switch minimizing downtime.
- Complies with IEC/EN 60947-2 electrical safety standards.
Product Description
Eaton 278606 FAZ-S1/1 xEffect miniature circuit breaker is designed for industrial and commercial power distribution networks requiring dependable protection against overcurrent and short circuits. This 1-pole breaker with a 1A rating is ideal for applications with surge currents, such as electric motors, due to its type S tripping characteristics which operate at 13 to 17 times the rated current.
Operating at 230V AC and 60V DC with a breaking capacity of 10kA, it offers robust protection by interrupting high fault currents safely and effectively. The breaker features low heat dissipation of 1.6W, reducing energy losses and adding to reliability during continuous operation.
This MCB mounts conveniently onto industry-standard DIN rails, facilitating swift installation and maintenance in electrical panels. Its thermal magnetic tripping mechanism combines thermal response for overloads and instantaneous magnetic response for short-circuits, ensuring precise and timely disconnection.
The IP20 rated enclosure protects internal components from contact with fingers and solid objects exceeding 12.5 mm, enhancing safety for operators. The front toggle switch allows easy resetting, minimizing downtime during equipment fault conditions.
Compliant with IEC/EN 60947-2 standards, this Eaton MCB is a reliable choice for electrical engineers and technicians looking to enhance circuit protection in industrial, commercial, and manufacturing environments.
Type S tripping characteristics for surge current applications. 10kA breaking capacity ensures safe interruption of fault currents. Energy-efficient operation with 1.6W heat loss. Standard DIN rail mounting for compatibility and ease of use.
Thermal magnetic tripping mechanism for accurate protection. IP20 rated for protection against solid object ingress. Front toggle switch for easy manual reset. Compliant with IEC/EN 60947-2 standards.
Choose Eaton's xEffect FAZ-S1/1 miniature circuit breaker for enhanced protection and operational reliability. Explore more products in the MCB category on EnvMart for your electrical circuit protection needs.
Explore more products in our Miniature Circuit Breaker (MCB) category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 10 kA, allowing it to safely interrupt high fault currents.
It is rated for 230V AC and 60V DC operation, making it suitable for various electrical applications.
This miniature circuit breaker features Type S tripping characteristics, which can handle surge currents of 13 to 17 times its rating.
The thermal magnetic tripping mechanism combines thermal response for overloads and instantaneous magnetic response for short circuits, ensuring accurate protection.
The IP rating is IP20, which protects internal components from contact with fingers and solid objects larger than 12.5 mm.
The dimensions are 74 mm in depth and 17.5 mm in width, making it compact for installation.
It mounts conveniently on standard DIN rails, facilitating quick installation and maintenance.
The current rating of this miniature circuit breaker is 1A, suitable for specific applications requiring this capacity.
It features a front toggle switch for easy manual resetting, minimizing downtime during fault conditions.
It complies with IEC/EN 60947-2 electrical safety standards, ensuring reliable performance in electrical systems.
The heat loss during operation is 1.6W, contributing to its energy-efficient performance.
It has a twin-purpose terminal type, allowing for versatile connections in electrical installations.
