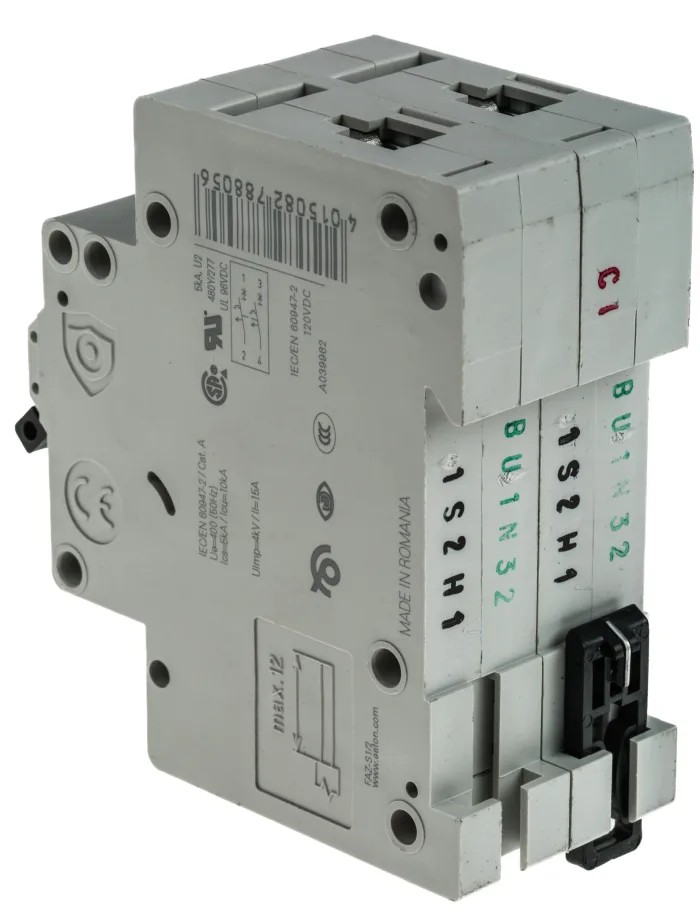

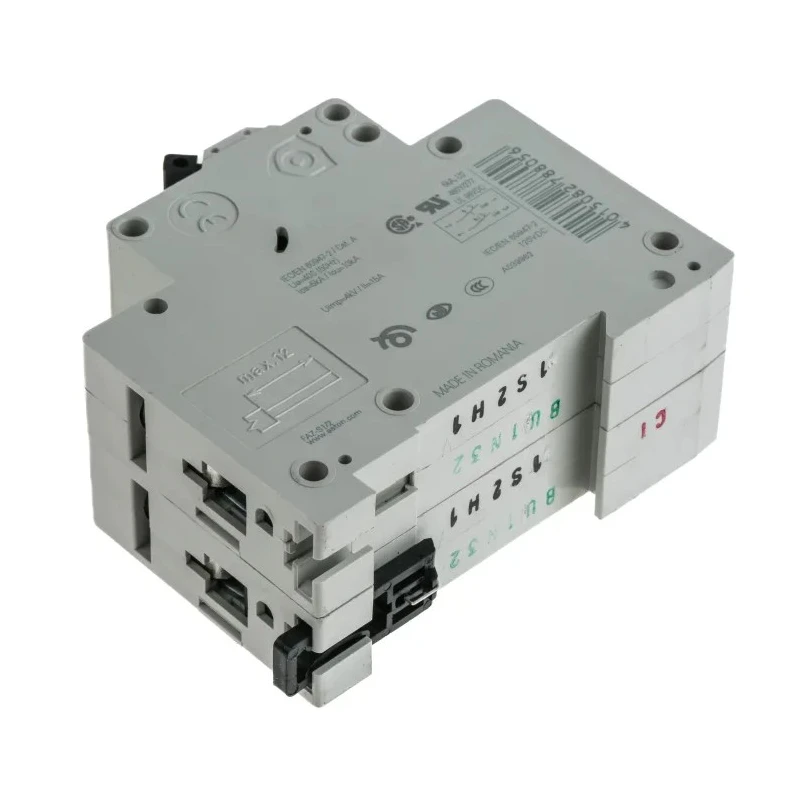

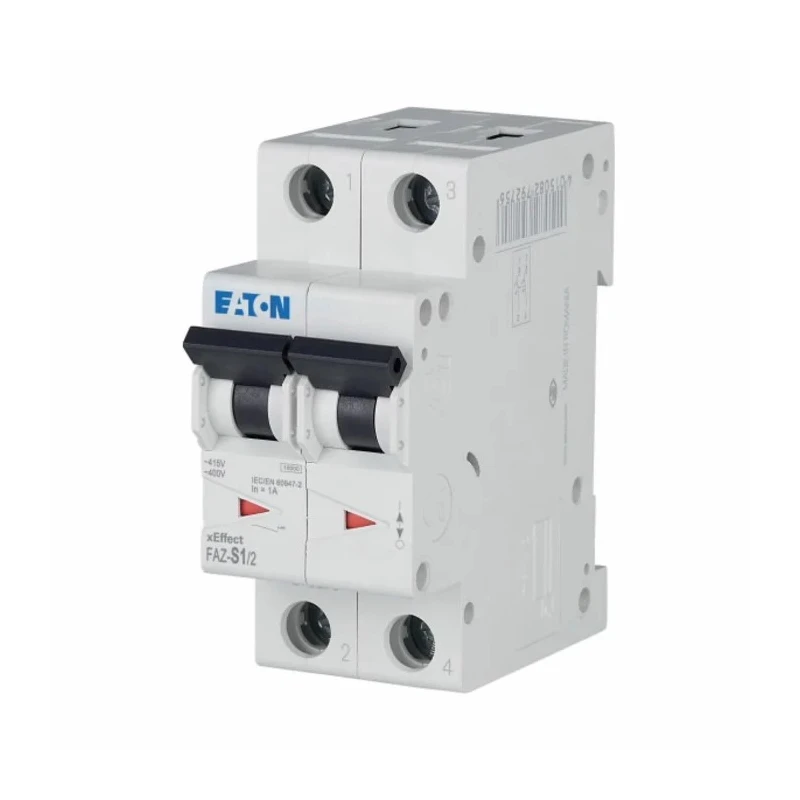

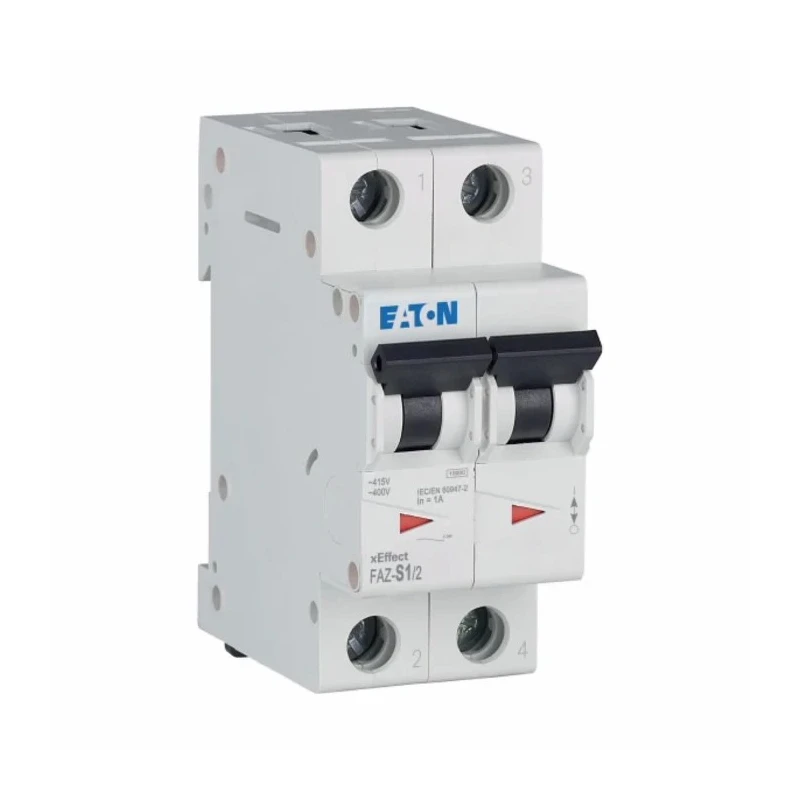

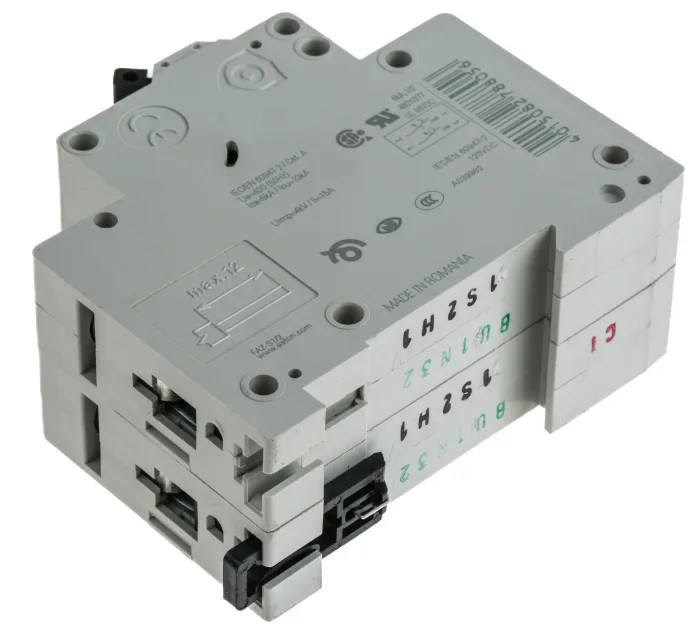

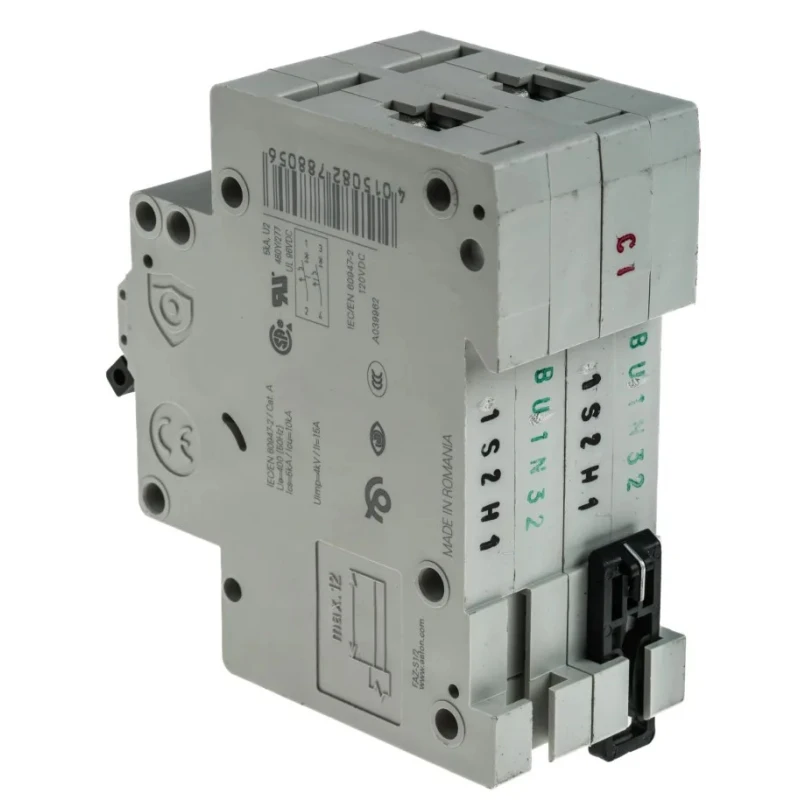

ABB xEffect FAZ Miniature Circuit Breaker, 2-Pole, 1A, Type S, 230V AC, 60V DC, 10kA Breaking Capacity 278805 FAZ-S1/2

Eaton 278805 FAZ-S1/2 Miniature Circuit Breaker is a 2-pole device used for protection of electrical circuits against overcurrent faults. Rated at 1A current with Type S tripping characteristics, it provides reliable thermal magnetic protection by breaking circuits instantaneously upon detecting current levels 13 to 17 times above its nominal rating. This ensures safety and prevents damage in power distribution and industrial control applications.

The breaker supports AC operating voltage up to 230V and DC voltage up to 60V, with a breaking capacity of 10kA, enabling it to safely interrupt large fault currents. Its twin-purpose terminal facilitates secure wiring and connection. Mountable on standard DIN rails, the unit offers easy installation and integration with existing electrical panels. The device is IP20 rated, protecting it from ingress of fingers and solid objects greater than 12.5mm, making it suitable for standard indoor electrical enclosures.

Designed according to IEC 60947-2 standards, this Eaton FAZ series breaker includes a toggle switch reset actuator allowing individual pole resets, minimizing system downtime during fault recovery. It has a compact form factor with a width of 35mm and a depth of 74mm, saving space within control panels. Electrical service life exceeds 10,000 operational cycles, ensuring long-term reliability and effective protection.

Ideal for industrial, commercial, and power distribution systems, it withstands harsh environmental conditions with operating temperatures from -40°C to +75°C. Applications include machinery protection, electrical panels, and systems requiring compact yet robust circuit protection solutions.

Provides thermal magnetic tripping with instantaneous break time for fast fault response. Suitable for operation at 230V AC and 60V DC voltage ratings. Features a breaking capacity of 10kA to withstand high current faults.

DIN rail mount design with twin-purpose terminal for easy installation. IP20 rated for protection against solid objects larger than 12.5mm. Compact dimensions of 35mm width and 74mm depth for space-saving panel integration.

Toggle switch reset actuator allows individual pole reset minimizing downtime. Meets IEC 60947-2 standards for industrial and commercial electrical applications. Electrical service life of at least 10,000 cycles for long-term durability.

Operates reliably in harsh environments from -40°C to +75°C ambient temperature range. For a broad selection of industrial circuit breakers and electrical protection devices, explore the Miniature Circuit Breaker category on EnvMart.
