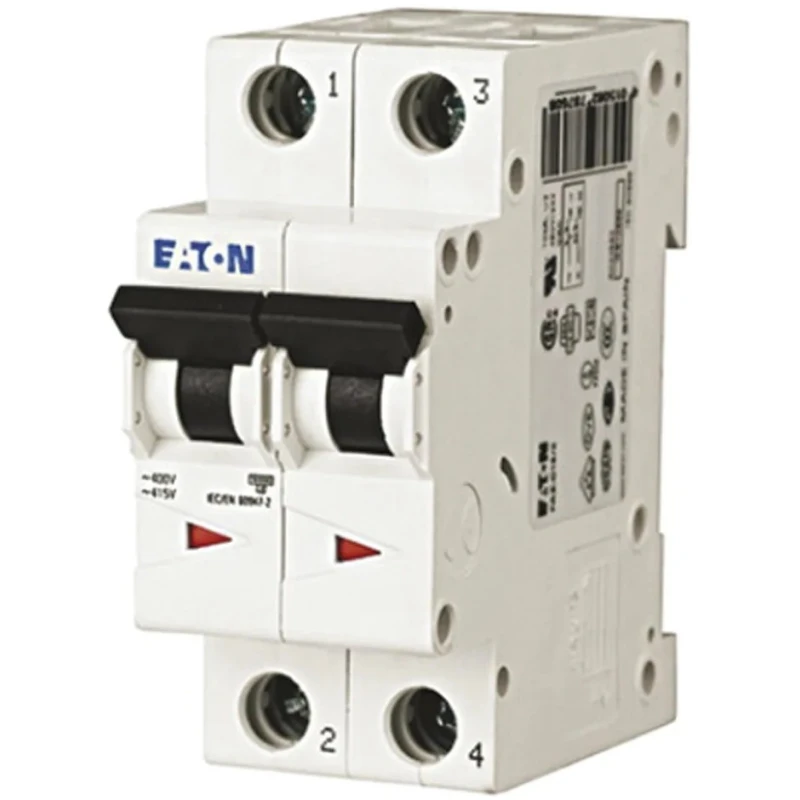

Moeller xEffect Miniature Circuit Breaker, 2-Pole, 1A, Type C, 400V AC, 6kA Breaking Capacity -C1/2 FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Moeller |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 2 pole type C circuit breaker,10kA 1ABrand | Moeller |
| Eaton MCB2P, 1A Curve CBrand | Moeller |
Key Features
- Equipped with thermal-magnetic overcurrent protection for fast response.
- Rated for 400V AC voltage with a breaking capacity of 6 kA.
- Mounts easily on DIN rails with a compact 17.5mm width per pole.
- Designed with a toggle switch reset actuator and instantaneous break time.
- Provides finger-proof, trip-free operation ensuring additional safety.
- Suitable for control circuits and electrical distribution board applications.
- Includes current limiting design reducing let-through energy during short circuits.
- Complies with IEC 60947-2 and other applicable standards ensuring quality and safety.
Product Description
Eaton FAZ6-C1/2 is a 2-pole miniature circuit breaker from the xEffect series designed for industrial, commercial, and residential electrical protection applications. It is rated for 1 amp current with Type C tripping characteristics, ideal for circuits that require protection against overloads and short circuits up to 6 kA breaking capacity at 400V AC.
This circuit breaker features thermal-magnetic release providing both instantaneous and thermal trip mechanisms to protect wiring and connected devices from damage due to excess current. The device is also finger-proof and trip-free, preventing it from being held in the ON position during fault conditions.
Installation is simplified with a DIN rail mounting system and a compact modular design measuring 17.5 mm width per pole, saving space in distribution boards. The toggle switch provides clear indication of the contact position, ensuring user-friendly operation.
The FAZ6 series offers various types of trip curves, including Type B, C, D, K, S, and Z, with Type C used here providing instantaneous trip at 5 to 10 times the rated current, suitable for residential and light commercial circuits with higher inrush currents.
Thermal-magnetic overcurrent protection ensuring safety. Compact 2-pole design with modular width of 35 mm. Breaking capacity of 6 kA handling typical fault currents. Compliance with IEC 60947-2 and related international standards.
Trip-free mechanism prevents manual override of tripping. Finger-proof construction for operator safety. Clear, toggle switch operated for easy manual control. Ideal for control circuits, electrical panels, and distribution boards.
This miniature circuit breaker is suitable for varied industrial, laboratory, construction, manufacturing, and commercial electrical applications where reliable overcurrent protection is necessary. It is part of Eaton's xEffect series known for robust, space-saving, and high-performance circuit protection solutions.
Explore more Miniature Circuit Breakers and electrical protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 6 kA, which allows it to handle typical fault currents effectively.
This circuit breaker is rated for 400V AC, making it suitable for various electrical applications.
The FAZ6 model features Type C tripping characteristics, which provide instantaneous trip at 5 to 10 times the rated current.
It is designed for DIN rail mounting, which simplifies installation in electrical distribution boards.
The current rating is 1A, suitable for protecting circuits with lower current requirements.
The width is 17.5 mm per pole, allowing for a compact design in electrical panels.
It uses a toggle switch as a reset actuator, providing clear indication of the contact position.
The depth of this circuit breaker is 62 mm, contributing to its compact design.
It features a finger-proof design and a trip-free mechanism, enhancing operator safety during fault conditions.
It complies with IEC 60947-2 and other applicable standards, ensuring quality and safety in its operation.
It is suitable for control circuits and electrical distribution board applications in industrial, commercial, and residential settings.
The thermal-magnetic mechanism provides both instantaneous and thermal trip protection against overloads and short circuits.
