Samtec Right Angle Through Hole Pin Header, 100 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded, Phosphor TSW-150-08-G-D-RA

Free Delivery in India | Lowest Global Shipping Charges

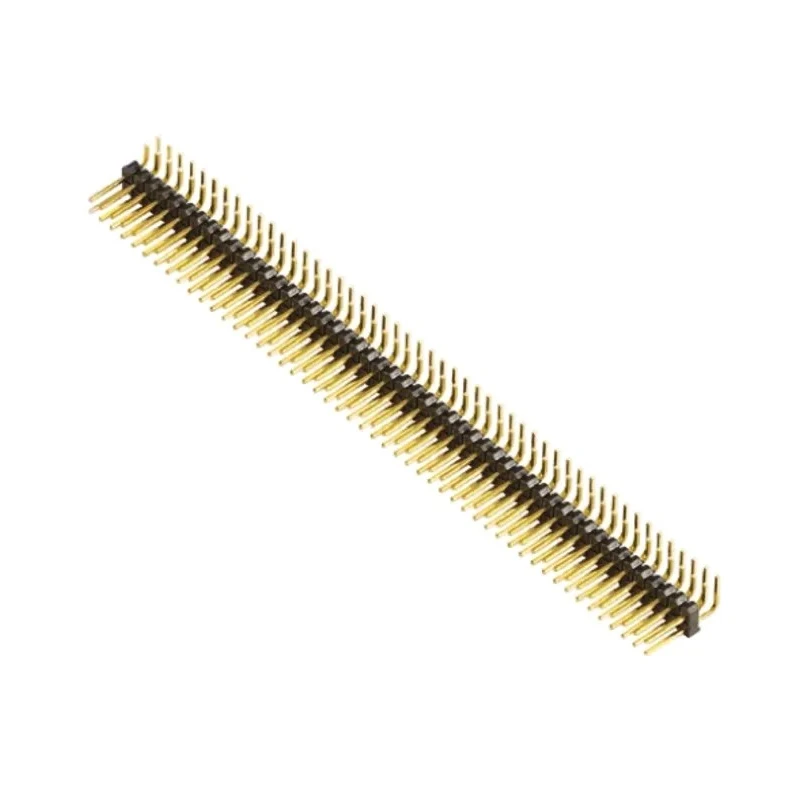

Samtec Right Angle Through Hole Pin Header, 100 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded, Phosphor TSW-150-08-G-D-RA

Name: Samtec Right Angle Through Hole Pin Header, 100 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded, Phosphor TSW-150-08-G-D-RA
Brand: Samtec
SKU: 130491
Price: 15.52 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	450V
Brand	Samtec
Orientation	Right Angle
Current	7.6A
Model	TSW-150-08-G-D-RA
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Phosphor Bronze
Series	TSW
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	2.29mm
Mating Pin Length	5.84mm

Key Features

Constructed with a glass filled polyester housing for durability.
Features phosphor bronze male contacts with gold plating for reliable electrical conductivity.
Unshrouded design allows easy mating with standard sockets.
Capable of carrying a current of 7.6A at up to 450V voltage rating.
Operates reliably within a temperature range of -55°C to 125°C.
Tail pin length of 2.29 mm and mating pin length of 5.84 mm ensures secure soldering.
Designed for through hole mounting with a right angle orientation.
Offers consistent 2.54 mm pitch and 2 row configuration for compact PCB layouts.

Product Description

Samtec brand TSW-150-08-G-D-RA model right angle through hole pin header is a high-quality PCB connector with 100 male contacts arranged in 2 rows at a 2.54 mm pitch. The housing is made of glass filled polyester providing mechanical strength and insulation. Contacts are phosphor bronze plated with gold to enhance conductivity and corrosion resistance, ensuring high performance in demanding electrical connections.

This unshrouded header is designed for board-to-board and wire-to-board mounting applications utilizing a through hole solder termination. It operates safely over a broad temperature range from -55°C to 125°C and supports a maximum current of 7.6 amps and voltage rating of 450 volts.

The 2 row configuration and 2.54 mm pitch allow for dense circuit integration and reliable mating with compatible sockets and connector systems. Tail pin length of 2.29 mm and mating pin length of 5.84 mm facilitate secure solder joints and mechanical stability on PCB assemblies.

TSW series headers are common in industrial electronics, manufacturing, and electronic equipment assembly where consistent connectivity and durability are required. Their robust build makes them apt for use in communications devices, industrial control systems, and commercial electronic products.

Durable glass filled polyester housing for insulation and strength. Gold plated phosphor bronze male contacts for longevity and conductivity. Unshrouded design to allow flexible compatibility with various sockets. Rated for currents up to 7.6A and voltages up to 450V.

Wide operating temperature range suitable for harsh environments. Right angle orientation supporting through hole PCB mounting. Compact 2 row, 2.54 mm pitch configuration for efficient PCB design. Ideal for industrial, commercial, and manufacturing electronics applications.

This product is a reliable solution for electronic connectors in laboratory, industrial, manufacturing, and commercial electronics sectors. EnvMart offers detailed product lines like the Samtec TSW series to ensure your assembly and design needs are met with precision and quality.
