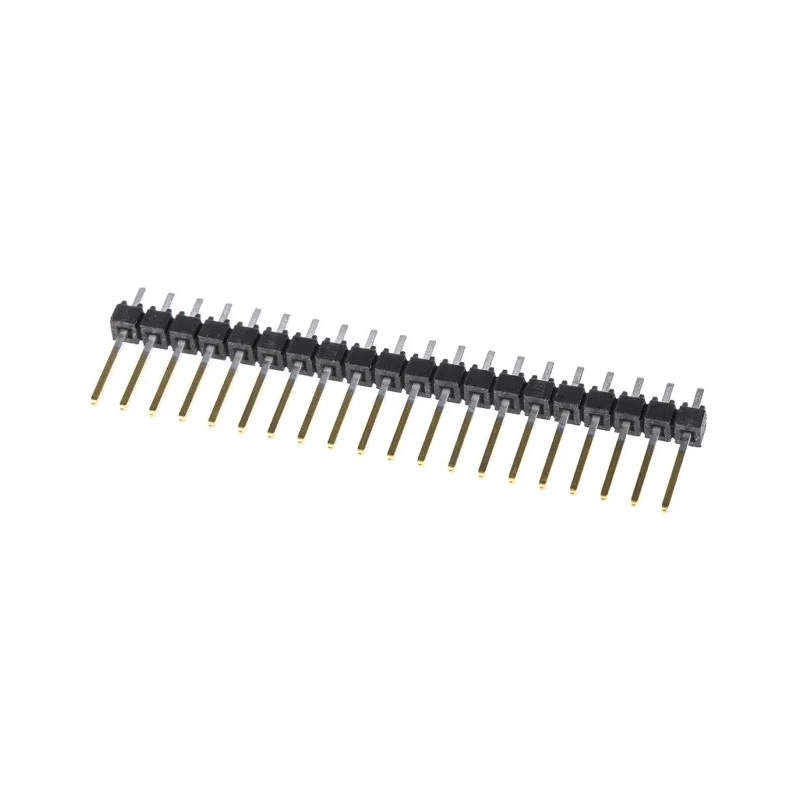

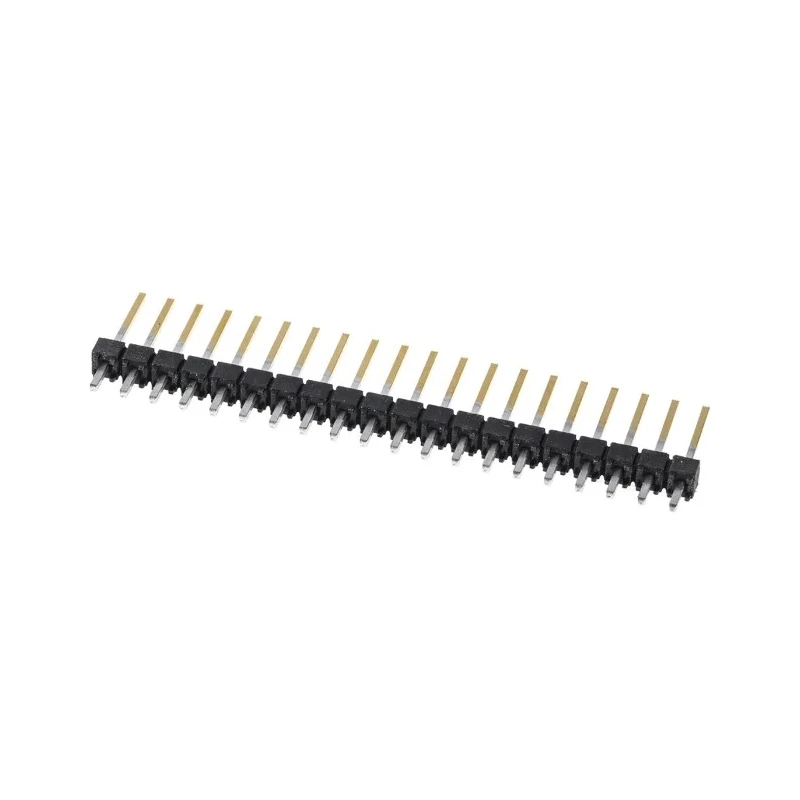

Samtec TSW Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded TSW-120-14-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-120-14-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 8.13mm |
Key Features
- Constructed with glass filled polyester housing for durability and insulation.
- Contacts are made from phosphor bronze with gold plating to ensure reliable connectivity.
- Designed for through hole mount type on PCBs, suitable for board-to-board and wire-to-board connections.
- Operational temperature range spans from -55°C to 125°C, supporting demanding applications.
- Rated for a current capacity of 7.6 A and voltage up to 550 V for robust performance.
- Tail pin length measures 2.79 mm and mating pin length is 8.13 mm, optimizing solderability and mechanical connection.
- This connector is unshrouded and has a straight orientation to fit various PCB layouts.
- Termination type is solder, ensuring strong electrical and mechanical bond.
Product Description
The Samtec TSW-120-14-L-S is a high-quality straight through hole pin header designed for PCB applications requiring reliable board-to-board and wire-to-board connections.
It features a durable glass filled polyester housing to provide insulation and mechanical strength. The 20 male phosphor bronze contacts are gold plated, enhancing corrosion resistance and electrical integrity.
This single row header has a 2.54 mm pitch, standard in many electronic assemblies. It is made for through hole mounting, ensuring secure attachment to printed circuit boards with solder termination.
The TSW series supports a broad operating temperature range from -55°C to 125°C, making it suitable for industrial, laboratory, and commercial electronics environments.
With a current rating of 7.6 A and voltage capacity up to 550 V, it fulfills demanding electrical requirements. The tail pin length of 2.79 mm and mating pin length of 8.13 mm optimize its solderability and fit with mating sockets.
The unshrouded design and straight contact orientation allow for versatile PCB layout options and ease of assembly. These headers are ideal for applications in manufacturing, water treatment control systems, HVAC modules, and other industrial electronic controls.
20 male contacts with 2.54 mm pitch and single row configuration. Glass filled polyester housing for durability and insulation. Phosphor bronze gold-plated contacts for reliable conductivity. Through hole mount type with solder termination.
Operating temperature range from -55°C to 125°C. Rated for 7.6 A current and 550 V voltage. Tail pin length: 2.79 mm; mating pin length: 8.13 mm. Unshrouded, straight orientation for flexible PCB application. Explore Samtec connectors and headers at EnvMart to find the right component for your electronic and industrial projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7.6 A, making it suitable for various applications requiring robust electrical performance.
The TSW-120-14-L-S is rated for a maximum voltage of 550 V, allowing it to handle demanding electrical environments.
It operates within a temperature range of -55°C to 125°C, making it suitable for industrial and commercial applications.
This model is designed for through hole mounting, ensuring secure attachment to printed circuit boards.
The housing is made from glass filled polyester, while the contacts are made from phosphor bronze with gold plating for reliable connectivity.
The contact pitch for the TSW-120-14-L-S is 2.54 mm, which is a standard size in many electronic assemblies.
This model features 20 male contacts, allowing for multiple connection points in a single row configuration.
The tail pin length measures 2.79 mm, optimizing solderability and mechanical connection.
The mating pin length is 8.13 mm, which helps ensure a secure fit with mating sockets.
It uses solder termination, which provides a strong electrical and mechanical bond when attached to a PCB.
This connector is unshrouded, allowing for flexible PCB layout options and ease of assembly.
It is ideal for board-to-board and wire-to-board connections in manufacturing, water treatment control systems, and HVAC modules.
