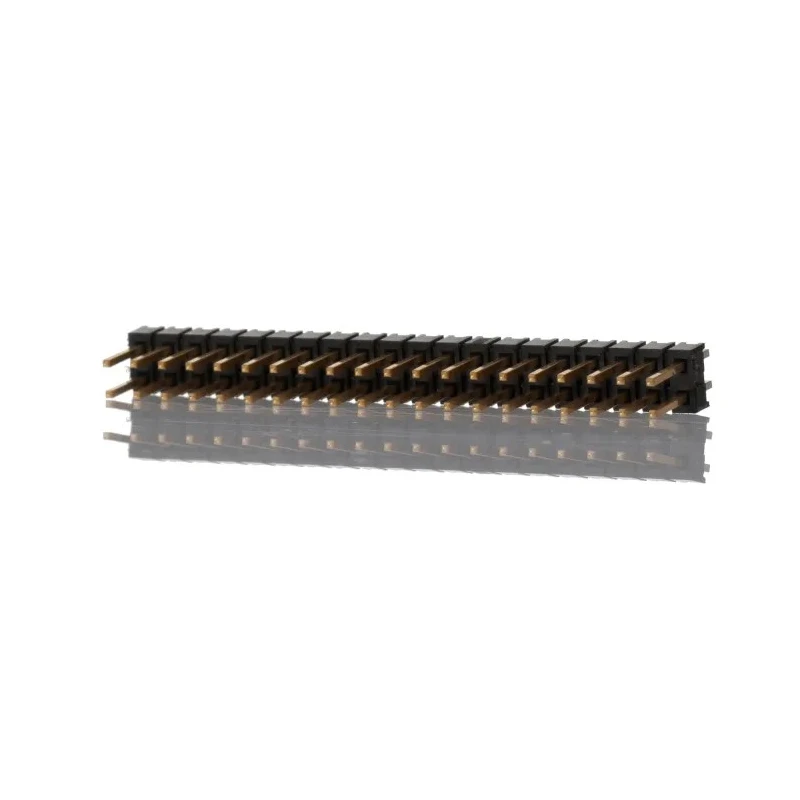

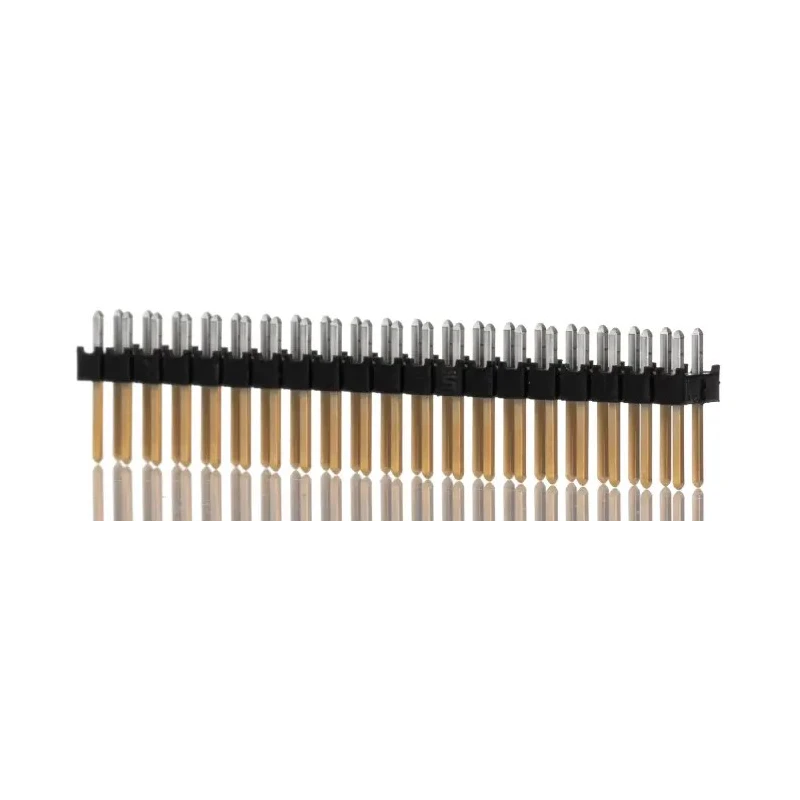

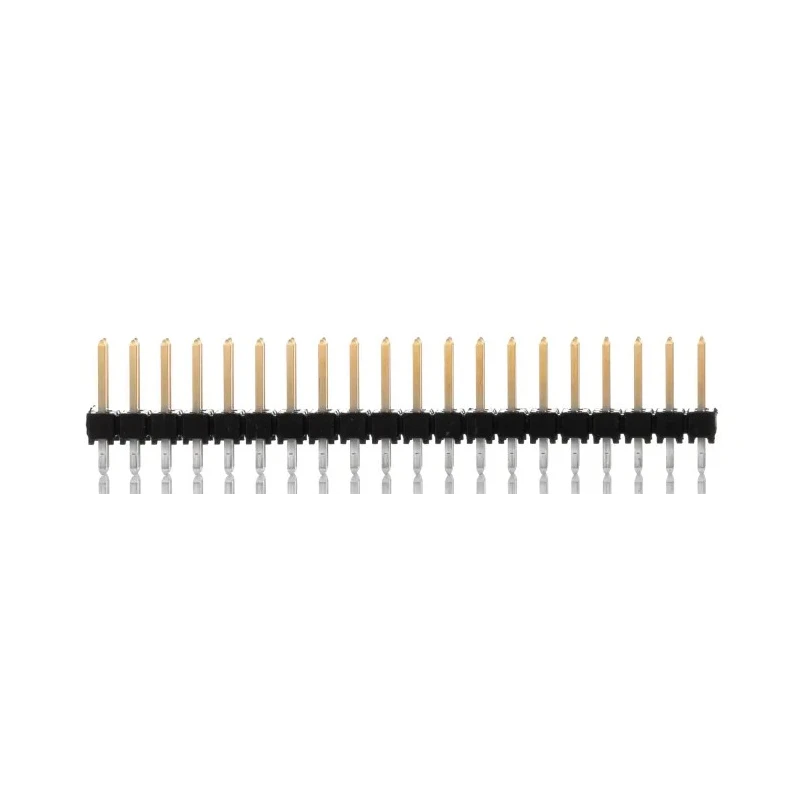

Samtec TSW Series Straight Through Hole Pin Header, 40 Contacts, 2 Row, 2.54 mm Pitch, 7.6A Current Rating TSW-120-07-L-D

Samtec TSW-120-07-L-D is a high-quality pin header classified under the TSW Series with a straight, unshrouded design optimized for reliable through hole mounting. This pin header features 40 male contacts arranged in two rows with a standard 2.54 mm pitch spacing, ensuring compatibility with common PCB layouts.

The connector housing is made of robust glass filled polyester which provides excellent mechanical and thermal stability. Its contacts are crafted from phosphor bronze and plated with gold, delivering dependable electrical connections and enhanced durability against wear and corrosion.

Rated for a 7.6 amp current capacity and capable of withstanding voltages up to 550 volts, this pin header supports efficient power transfer and signal integrity in various applications. The product maintains consistent performance over a wide operating temperature range from -55°C to 125°C.

Its solder termination style with 2.54 mm tail pin length allows secure PCB integration, while the mating pin length of 5.84 mm ensures reliable connection to corresponding connectors.

Ideal for use in board-to-board and wire-to-board applications, the Samtec TSW-120-07-L-D pin header is compatible with multiple Samtec connectors such as SSW, SSQ, SSM, ESW, ESQ, and BCS. Its unshrouded layout provides versatile installation options in industrial automation, electronic devices, and other manufacturing circuits.

Supports high current rating of 7.6A for efficient power transfer. Features straight orientation and through-hole mounting for secure installation. Constructed with gold-plated phosphor bronze contacts for durability and corrosion resistance.

Housing made of glass filled polyester ensuring mechanical strength. Suitable for electronic devices, automation systems, and industrial equipment applications. Operates reliably between -55°C to 125°C temperatures. Compatible with various Samtec mating connectors for versatile connectivity.

Unshrouded design allows flexible installation and easy access to contacts. Maintains insulation voltage rating up to 550V. Pin and tail lengths designed for easy solder tail termination and mating.

This Samtec pin header is a premium solution in PCB connector technology offering robust performance for demanding industrial and commercial electronic applications. Browse further PCB Headers and connectors on EnvMart for enhanced design integration.
