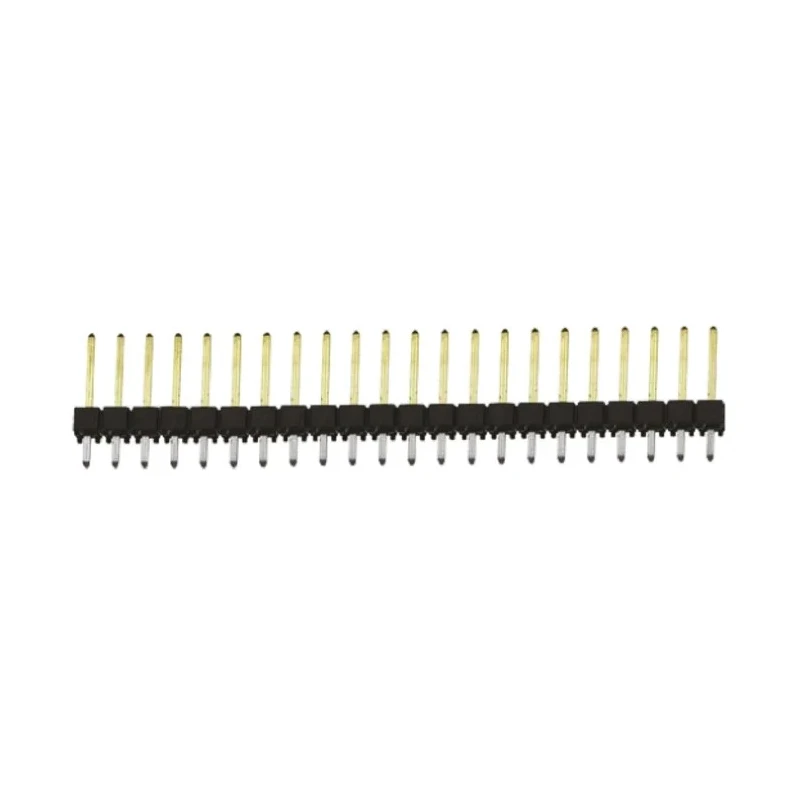

Samtec TSW Series 22 Contact Straight Through Hole Pin Header 2.54 mm Pitch 1 Row Unshrouded TSW-122-14-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-122-14-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 8.13mm |
Key Features
- The header features a single row of 22 gold plated phosphor bronze contacts for optimal conductivity.
- It has a pitch of 2.54 mm and a tail pin length of 2.79 mm allowing through hole solder mounting.
- Constructed with a glass filled polyester housing resistant to operating temperatures from -55°C to 125°C.
- Designed as an unshrouded male connector suitable for various PCB mounting applications.
- Rated for 7.6 amps current and 550 volts, ensuring robust electrical performance.
- The mating pin length measures 8.13 mm for secure connection with compatible sockets.
- Ideal for industrial and electronic PCB connection use cases including board-to-board and wire-to-board systems.
- Exhibits superior durability thanks to gold contact plating reducing corrosion and wear.
Product Description
Samtec TSW-122-14-L-S Straight Through Hole Pin Header is a high-quality PCB connector tailored for electronic assembly requiring a 22-contact, single-row configuration with a 2.54 mm pitch.
Its construction features a glass filled polyester housing for mechanical stability and phosphor bronze contacts plated with gold to assure excellent conductivity and corrosion resistance.
The header is unshrouded, male, and designed for through hole solder mounting, with a tail pin length of 2.79 mm and mating pin length of 8.13 mm. It supports current up to 7.6A and voltage up to 550V, making it suitable for demanding electronic circuit connections.
Operating temperature range of -55°C to 125°C enables use in a variety of environmental conditions common in industrial, laboratory, commercial, and manufacturing applications. This connector series supports board-to-board and wire-to-board connection types for flexible PCB design architectures.
The header includes 22 straight contacts arranged in a single row. Pitch of 2.54 mm ensures compatibility with standard PCB layouts. Gold-plated phosphor bronze contacts provide optimal electrical connections. Housing made of durable glass filled polyester resists temperature extremes.
Termination is through-hole solder tailored for secure mounting. Supports continuous current of 7.6 amps at 550 volts. The product is unshrouded allowing flexible mating options. Meets typical industrial connector requirements for durability and performance.
Samtec TSW series connectors are well-suited for electronics manufacturing, industrial control systems, communication hardware, and electronic prototyping labs. Their reliable pin header design ensures stable electrical connections in diverse PCB implementations.
Explore more high-performance PCB connectors and electronic components available across EnvMart for your manufacturing and electronics development needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Samtec TSW-122-14-L-S pin header is 2.54 mm, ensuring compatibility with standard PCB layouts.
This model is rated for a maximum continuous current of 7.6 amps, making it suitable for various electronic applications.
The connector has a voltage rating of 550 volts, allowing it to be used in high-voltage applications.
The contacts are made of phosphor bronze and are gold plated to ensure optimal conductivity and corrosion resistance.
This pin header is designed for through hole solder mounting, which provides secure installation on PCBs.
The operating temperature range is from -55°C to 125°C, making it suitable for use in various environmental conditions.
The Samtec TSW-122-14-L-S pin header features 22 contacts arranged in a single row.
The tail pin length of this connector is 2.79 mm, which facilitates secure soldering to the PCB.
The mating pin length measures 8.13 mm, ensuring a secure connection with compatible sockets.
This model supports both board-to-board and wire-to-board connection types, providing flexibility in PCB design.
The connector is unshrouded, allowing for flexible mating options with compatible connectors.
The Samtec TSW-122-14-L-S pin header is manufactured in India.
