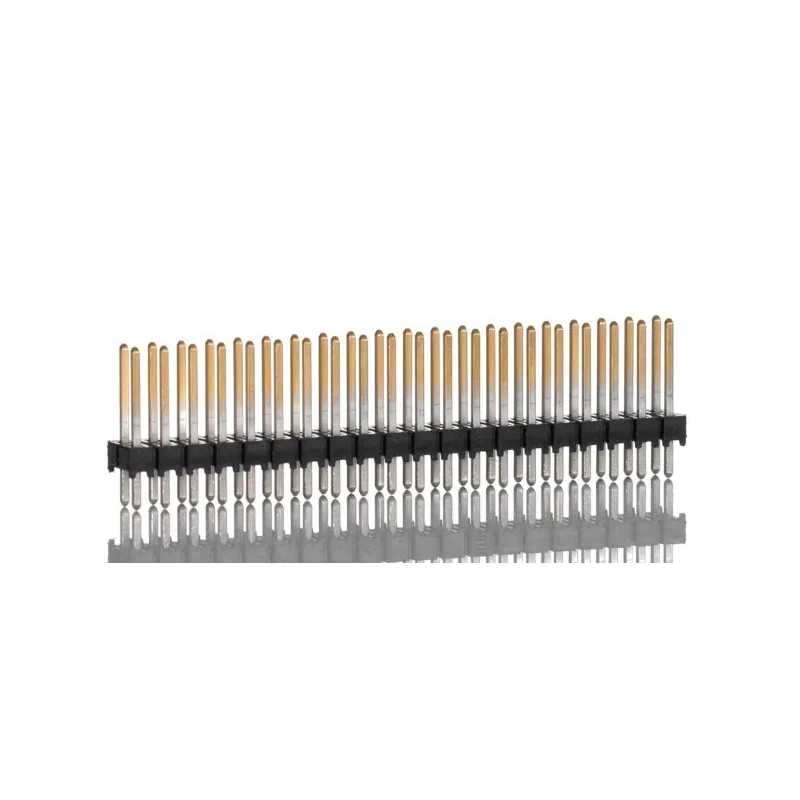

Samtec TSW Series 40 Contact Straight Through Hole Pin Header 2.54 mm Pitch 2 Row Unshrouded TSW-120-14-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-120-14-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 8.13mm |
Key Features
- Constructed from phosphor bronze with gold plating for superior conductivity.
- Glass filled polyester housing offers excellent insulation and durability.
- Supports a maximum current of 7.6A and voltage rating of 550V AC.
- Suitable for through-hole mounting providing firm mechanical strength.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Available with solder termination type enabling quick and robust connections.
- Designed for board-to-board and wire-to-board connector systems.
- Unshrouded for easy accessibility and optimized PCB space usage.
Product Description
Samtec TSW-120-14-L-D is a high quality TSW Series straight through hole pin header featuring 40 contacts arranged in 2 rows with a standard 2.54 mm pitch.
The connector housing is made from glass filled polyester, which ensures strong insulation and mechanical integrity under varying operational environments. This unshrouded, straight orientation pin header supports through-hole mounting, making it a dependable choice for PCB assembly in manufacturing, automotive production, broadcasting equipment, and smart home devices.
With a current rating of 7.6 A and a voltage capability up to 550 V AC, it is suitable for high-voltage applications requiring durable electrical connections. The pin header operates efficiently within a temperature range from minus 55 degrees Celsius to 125 degrees Celsius, accommodating harsh environmental conditions without performance degradation.
The solder termination type facilitates quick and reliable soldering processes, simplifying assembly and enhancing mechanical stability on the board. Its unshrouded design allows for easy accessibility and saves PCB space, making it ideal for dense electronic assemblies.
Constructed with phosphor bronze contacts for excellent electrical conductivity. Gold plating on contacts ensures dependable corrosion resistance and signal integrity. Glass filled polyester housing provides robust insulation and thermal resistance.
Supports electrical current of 7.6 A and voltages up to 550 V AC. Wide operating temperature range from -55°C to 125°C for harsh environments. Through-hole mount style ensures strong mechanical connection to PCB. Straight, unshrouded body design optimizes board space and accessibility.
Compatible with board-to-board and wire-to-board connector systems.
This product conforms to industrial standards suitable for electronics manufacturing, automotive industries, broadcasting, and smart devices development. It offers a durable, precise connector solution enabling efficient PCB assemblies and reliable electrical performance.
Explore more premium Samtec products like these in the PCB Headers category at EnvMart for enhanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 7.6 A.
It has a voltage rating of 550 V AC.
The contacts are made from phosphor bronze with gold plating, while the housing is constructed from glass filled polyester.
It operates reliably in temperatures ranging from -55°C to 125°C.
This pin header features 40 contacts arranged in 2 rows.
It uses a solder termination type, enabling quick and robust connections.
The pitch size of the contacts is 2.54 mm.
Yes, it is designed for through-hole mounting, providing a firm mechanical strength.
It is compatible with board-to-board and wire-to-board connector systems.
The orientation of this pin header is straight.
The tail pin length is 2.79 mm.
This product is manufactured in India.
